Tektronix P6316 P6316 Oscilloscope Probe Logic MSO2000 Series Mixed Signal Oscilloscopes

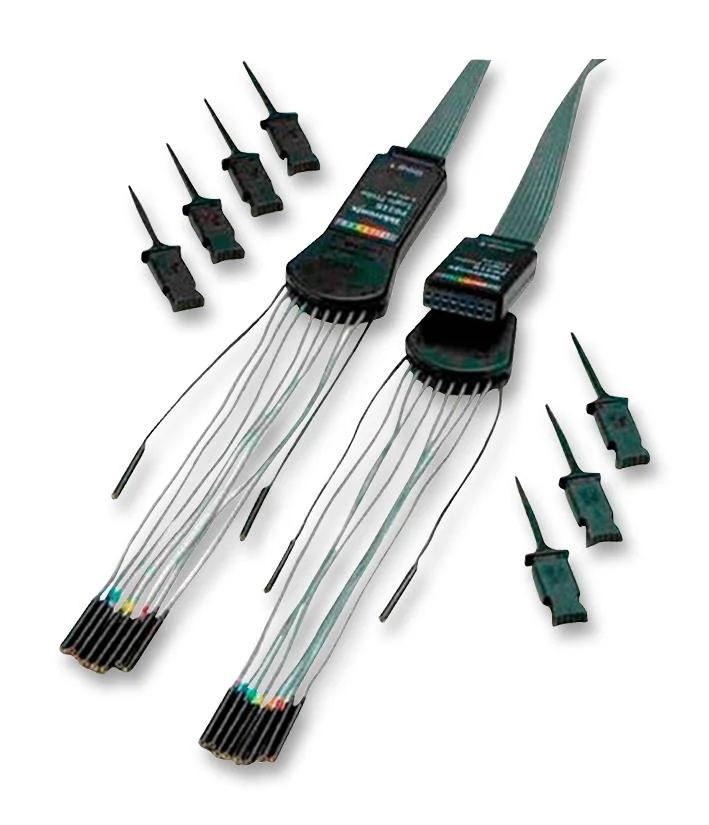

The P6316 is a MSO Probe design offers two eight-channel pods, simplifying the process of connecting to the device-under-test. When connecting to square pins, the P6316 can connect directly to 8 x 2 square pin headers spaced on tenth-inch centers. When more attachment flexibility is required, you can use the included flying lead sets and grabbers to clip onto surface mount devices or test points. The P6316 offers outstanding electrical characteristics applying only 8pF of capacitive loading with 101kR input impedance.

• Offers two eight-channel pods to simplify connecting to device

Applications

Test & Measurement

Product details

Oscilloscope Probe Function	Logic
Bandwidth	-
Input Voltage Max	-
Test Probe Attenuation	-
For Use With	Tektronix MSO2000 Series Mixed Signal Oscilloscopes
Product Range	-

Other details

Brand	TEKTRONIX
Part Number	P6316
Quantity	Each
