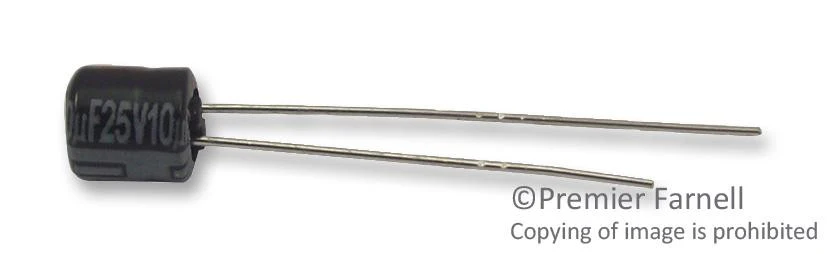

PANASONIC ELECTRONIC COMPONENTS ECA2EM4R7 Electrolytic Capacitor, 4.7 µF, 250 V, M Series, ± 20%, Radial Leaded, 8 mm
PANASONIC ELECTRONIC COMPONENTS ECA2EM4R7 Electrolytic Capacitor, 4.7 µF, 250 V, M Series, ± 20%, Radial Leaded, 8 mm
- Capacitance value ranges from 2.2µF to 22000µF for 6.3VDC to 100VDC
- Capacitance value ranges from 1µF to 470µF for 160VDC to 450VDC
- Automotive grade AEC-Q200 compliant
- Tolerance of ±20%
- Endurance of 2000h at 85°C
- Available in -40°C to 85°C and -25°C to 85°C temperature ranges based on rated voltage
- High reliability
Applications
Automotive, Industrial, Power Management, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | -40°C |
| Capacitor Terminals | Radial Leaded |
| Operating Temperature Max | 85°C |
| Lifetime @ Temperature | 2000 hours @ 85°C |
| Voltage Rating | 250V |
| Product Range | M Series |
| Diameter | 8mm |
| Automotive Qualification Standard | - |
| ESR | - |
| Capacitance | 4.7µF |
| Lead Spacing | 3.5mm |
| Capacitance Tolerance | ± 20% |
| Packaging | Each |
| Height | 11.5mm |
Other details
| Brand | PANASONIC ELECTRONIC COMPONENTS |
| Part Number | ECA2EM4R7 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
