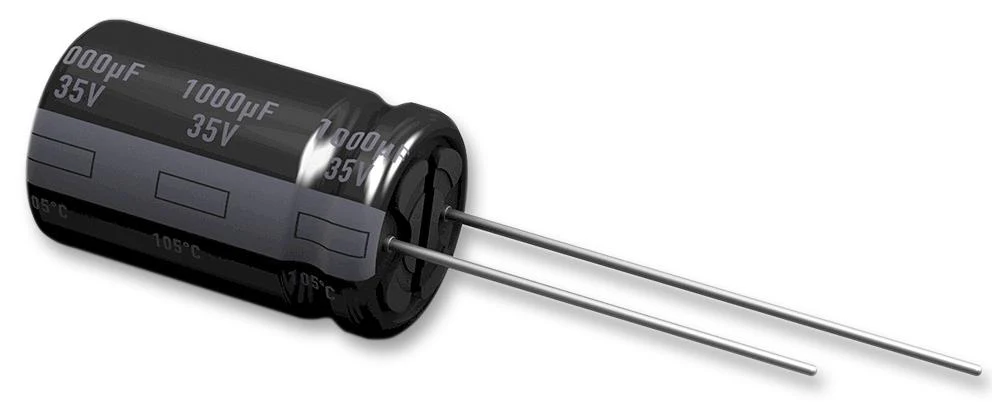

Panasonic EEUFR1V681LB EEUFR1V681LB Electrolytic Capacitor 680 µF 35 V ± 20% Radial Leaded 10000 Hours @ 105°C Polar

The Panasonic FR series capacitors are type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 4.7µF to 8200µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form. In comparison to Panasonic FM series, the FR series capacitors can achieve a endurance upgrade of up to 100% and a capacitance increase of up to 30% by improving material technology.

• Rated voltage range of 6.3VDC to 100VDC
• Tolerance of ±20%
• Endurance of 5000h to 10000h at 105°C
• Operating temperature range -40°C to 105°C
• High reliability

Applications

Industrial, Power Management, Consumer Electronics, Portable Devices

Other details

Brand	PANASONIC
Part Number	EEUFR1V681LB
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
