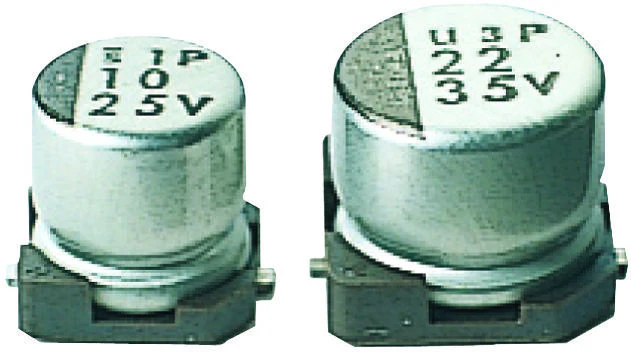

NICHICON UWT1H4R7MCL1GB ALUMINUM ELECTROLYTIC CAPACITOR 4.7UF 50V 20%, SMD
Product details
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 105°C |
| Lifetime @ Temperature | 2000 hours @ 85°C |
| Voltage Rating | 50V |
| AE Capacitor Case | Radial Can - SMD |
| Product Range | WT Series |
| Diameter | 5mm |
| Automotive Qualification Standard | - |
| ESR | - |
| Capacitance | 4.7µF |
| Packaging | Cut Tape |
| Ripple Current AC | 19mA |
| Height | 5.4mm |
| MSL | - |
Other details
| Brand | NICHICON |
| Part Number | UWT1H4R7MCL1GB |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $0.51
-71%$0.51
