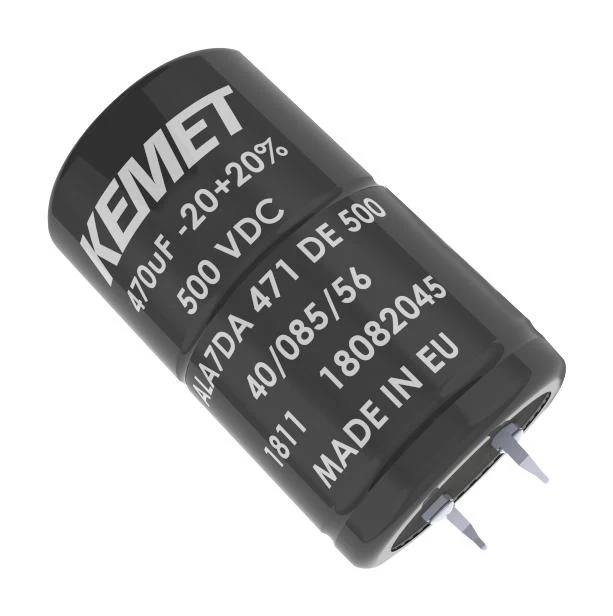

Kemet ALA7DA471DD450 Electrolytic Capacitor 470 µF 450 V ALA7D Series 15000 Hours @ 85°C ± 20%

The KEMET ALA Snap-In Capacitors are designed for automotive applications. They can withstand vibration up to 20 G in accordance with the demanding requirements of the Automotive Electronics Council's AEC-Q200 qualification. The ALA7D capacitance values cover a range from 240 to 820 µF and voltage ranges of 400 to 500 V.

• Designed for automotive usages
• Vibration proof
• AEC-Q200
• Long life, up to 15,000 hours at +85°C (Vr Ir applied)
• High ripple current
• Excellent surge voltage capability
• PET sleeve recognized to UL QMTR2, UL No. E358957
• Optimized designs available upon request

Product details

Capacitance	470µF
Voltage Rating	450V
Product Range	ALA7D Series
Lifetime @ Temperature	15000 hours @ 85°C
Capacitance Tolerance	± 20%
Capacitor Terminals	Quick Connect, Snap-In
Diameter	35mm
Lead Spacing	10mm
Operating Temperature Min	-40°C
Operating Temperature Max	85°C
Height	40mm
ESR	0.327ohm
Automotive Qualification Standard	AEC-Q200
RoHS Phthalates Compliant	Yes

Other details

Brand	KEMET
Part Number	ALA7DA471DD450
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
