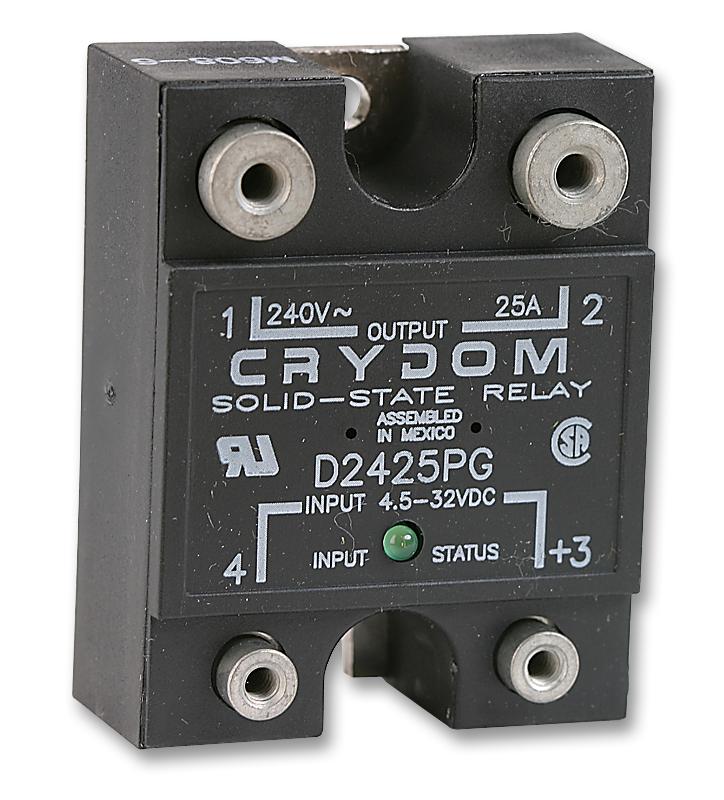

SENSATA/CRYDOM D2425PG Solid State Relay 25 A 280 Vrms Panel Mount Screw

The D2425PG is a Solid State Relay with aluminium base plate, 94V-0 housing, overvoltage protection, input status LED and screw terminals. This series-1 panel mount relay features improved SEMS screw and washer, redesigned housing with anti-rotation barriers. Direct bond copper substrate and direct power lead frame. EMC compliant to level-3.

• Epoxy-free design
• AC or DC Control
• SCR output for heavy industrial loads
• 1.15Vrms Maximum on-state voltage drop
• 4000Vrms Dielectric strength
• Current regulated nominal input impedance
• 1/2 cycle ms Turn-on/off maximum time
• -40 to 80°C Ambient operating temperature range

Applications

Industrial

Warnings Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.

Other details

Brand	SENSATA/CRYDOM
Part Number	D2425PG
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
