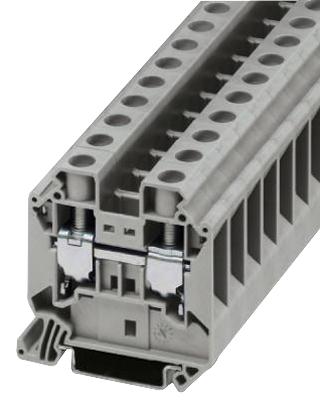

Phoenix Contact UT 16 UT 16 DIN Rail Mount Terminal Block 2 Ways AWG 4 mm² Screw 76 A

The UT 16 is a 2-position 1-level grey Feed-through Terminal Block with a polyamide insulator, the M5 screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044199 terminal block accepts 16 to 14AWG wire range. The reducing bridges can be used to connect terminal blocks with different connection technologies. Easy and time-saving potential supply and distribution of large currents and cross sections up to 35mm² with reducing bridges. The flexible options for reducing bridging in the CLIPLINE complete system can be found in accessories for the CLIPLINE complete modular terminal block system.

• Half-sine shock form
• 14mm Stripping length
• UL94V-0 Flammability rating

Applications

Industrial, Automation & Process Control

Other details

Brand	PHOENIX CONTACT
Part Number	UT 16
Quantity	Each
Technical Data Sheet EN
CAD Multiple Formats EN
