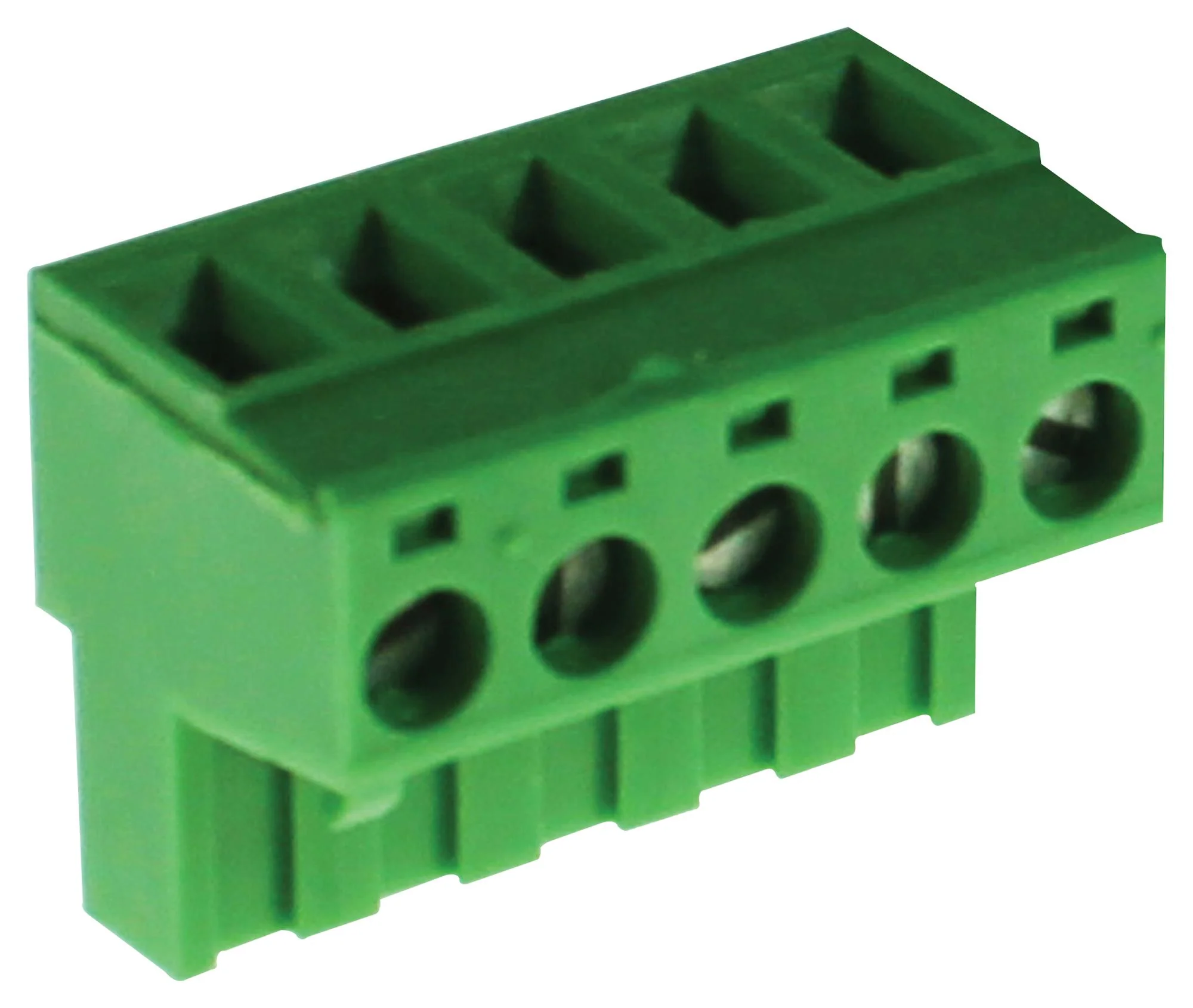

Camdenboss CTB9209/5 CTB9209/5 Pluggable Terminal Block 5.08 mm 5 Ways 24AWG to 12AWG 2.5 mm² Screw 12 A

The CTB9209/5 from Camdenboss is a 5 pole, female pluggable rising clamp terminal block with 5.08mm pin spacing. This professional rising clamp terminal block is suitable for wire size ranging from 22AWG to 14AWG.

• Rated voltage of 300V and rated current of 15A
• Dimension is 25.40mm x 18.10mm x 15mm (L x W x H)
• Polyamide (PA66) moulded material in green colour housing
• Open and closed header, polarised moulding and guided pin alignment
• Tin plated brass terminal
• Nickel plated M2.5 steel captive screws with 0.4Nm torque
• Working temperature range from -40°C to 105°C
• Horizontal female plug style
• Flammability rating meets UL94 V-0
• cULus approved

Applications

Industrial

Other details

Brand	CAMDENBOSS
Part Number	CTB9209/5
Quantity	Each
Technical Data Sheet EN
