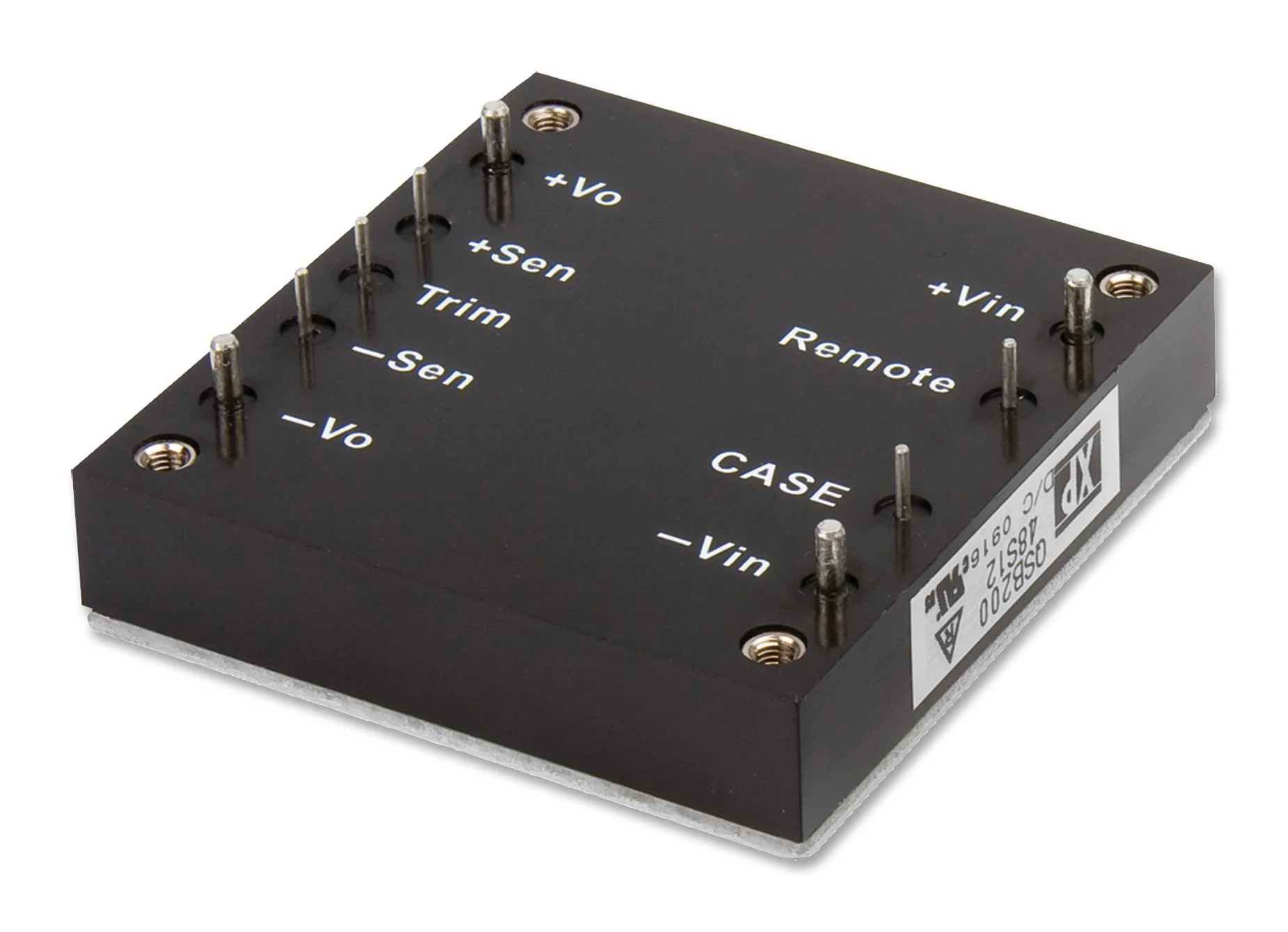

XP POWER QSB35024S28 Isolated Through Hole DC/DC Converter, Base Plate Cooled, ITE, 2:1, 350 W, 1 Output, 28 V, 12.5 A
XP POWER QSB35024S28 Isolated Through Hole DC/DC Converter, Base Plate Cooled, ITE, 2:1, 350 W, 1 Output, 28 V, 12.5 A
- Wide 4:1 Input Range
- Industry Standard Package, 1/2 Brick
- Operating Temperature -40°C to 100°C
- High Power Density
- Base Plate Cooled
- Remote On/Off & Remote Sense
- See Technical Note for information about XP Power's plans for the UKCA Marking
Applications
Power Management, DC, DC Converters
Product details
| Power Supply Applications: ITE |
| Input Ratio: 2:1 |
| Output Power Max: 350W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 28V |
| Output Current - Output 1: 12.5A |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Type: Half Brick |
| Input Voltage DC Nom: 24V |
| DC / DC Converter Output Type: Fixed, Adjustable |
| Width: 57.9mm |
| Height: 13.2mm |
| Depth: 61mm |
| Input Voltage DC Min: 18V |
| Input Voltage DC Max: 36V |
| Product Range: QSB350 Series |
Other details
| Brand | XP POWER |
| Part Number | QSB35024S28 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
