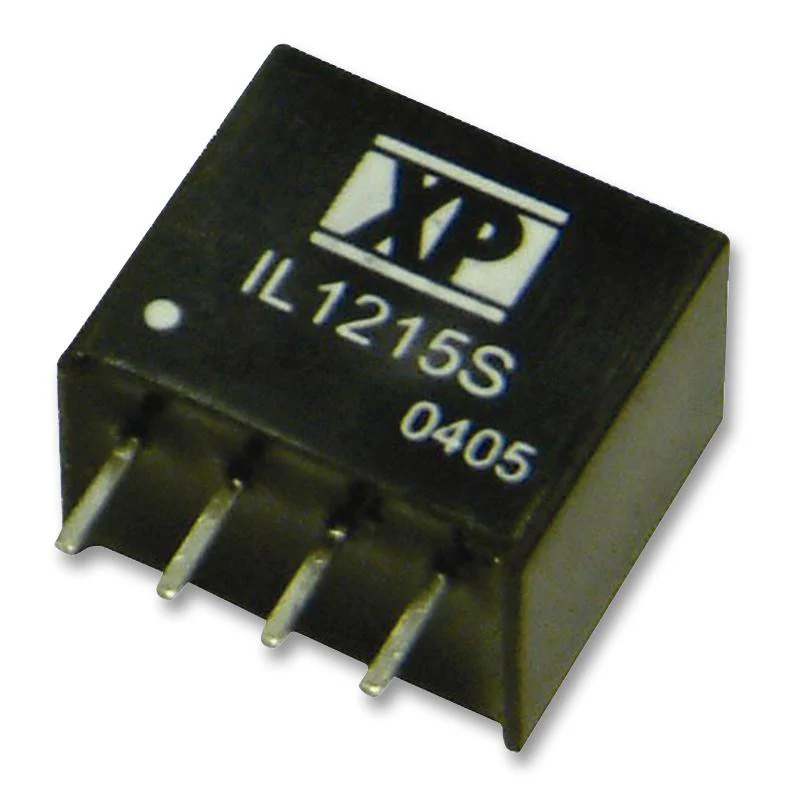

XP POWER IL1215S 2W SIP Single Output DC/DC Converter, Input 12V, Output 15V 132mA
- Single Output
- SIP Package
- 1000 VDC Isolation
- MTBF >1.2 MHrs
- -40°C to +85°C Operation
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 10.8V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 11.68mm |
| Width | 7.5mm |
| Product Range | IL Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 13.2V |
| Output Current - Output 1 | 132mA |
| Height | 10.16mm |
Other details
| Brand | XP POWER |
| Part Number | IL1215S |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
