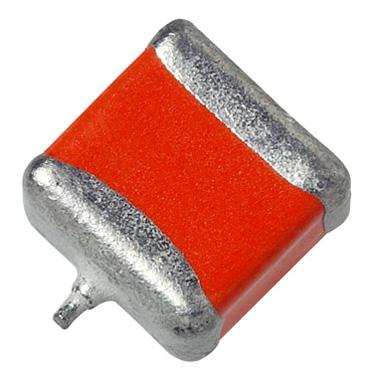

Vishay 597D476X0050Z2T 597D476X0050Z2T Surface Mount Tantalum Capacitor TANTAMOUNT® 47 µF 50 V 3022 [7655 Metric] ± 20% 0.145 ohm Z

The 597D476X0050Z2T is a solid tantalum surface mount Chip Capacitor with 100% tin termination. The 597D series TANTAMOUNT® capacitor is preferred for filtering applications in small power supplies and DC/DC converters. Preferred for their high reliability, long life, extended shelf life, exceptional stability with temperature and their small size. It consists of a sintered tantalum pellet, the anode, on which a tantalum oxide dielectric is formed by electrolysis. The pellet is then coated with manganese dioxide for the cathode. Positive and negative terminations are attached to this pellet and the assembly may be conformally-coated or moulded.

• Ultra-low ESR
• Conformal coated
• Maximum CV

Applications

Power Management, Aerospace, Defence, Military, Industrial, Commercial, Computers & Computer Peripherals, Communications & Networking, Sensing & Instrumentation, Automotive

Other details

Brand	VISHAY
Part Number	597D476X0050Z2T
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Product Change Notice EN
