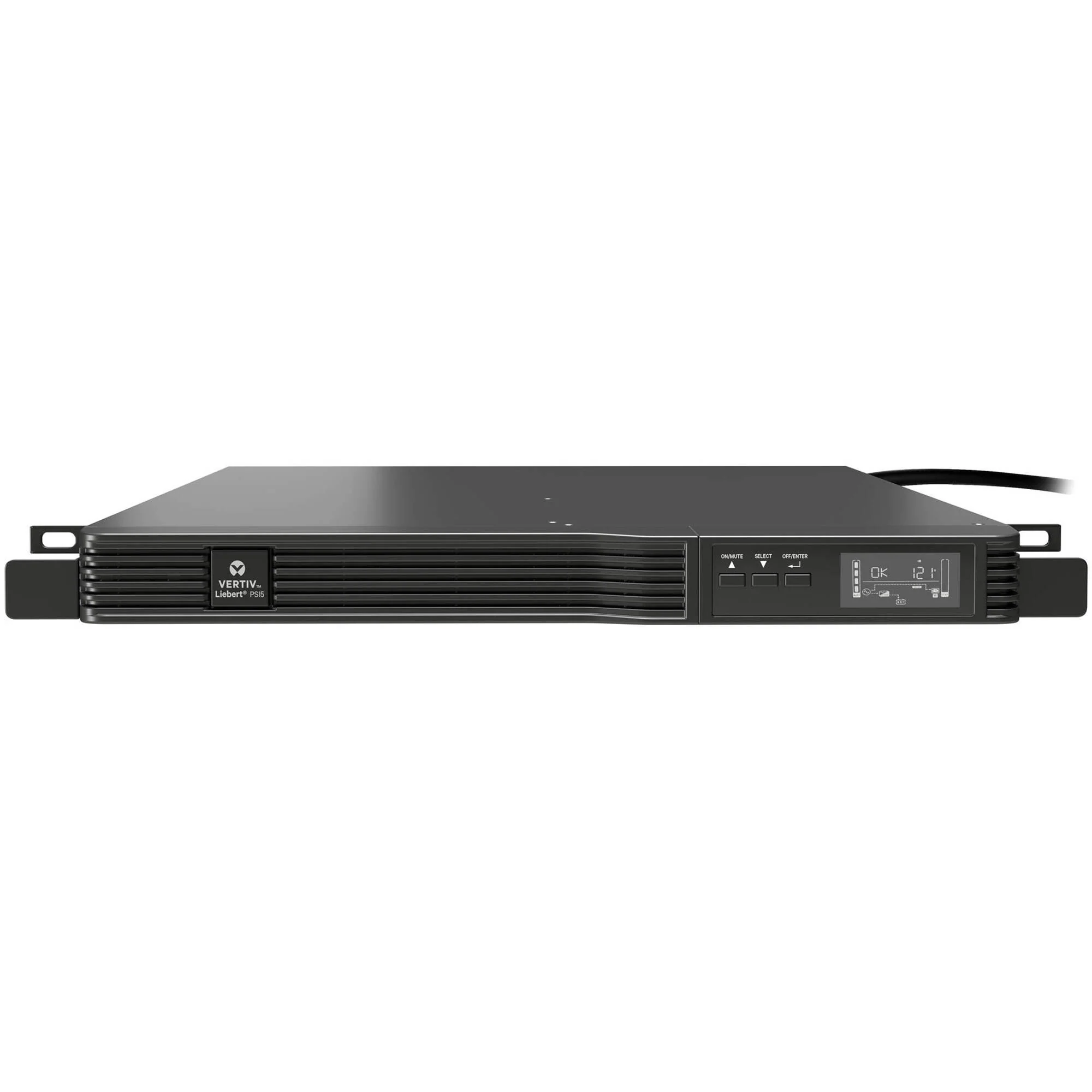

VERTIV Liebert PSI5-1500RM1201U Overview
Keep crucial systems protected during a power surge with the PSl5-1500RM1201U 1U Rack Mount UPS from Vertiv Liebert. Designed to keep crucial systems running long enough for proper shutdown in the event of a power surge or overage, this UPS features five NEMA 5-15R receptacles, two of which are user-controllable. Capable of a total output of 1440 VA or 1350W, the PSl5-1500RM1201U supports input at 75 to 146VAC at 60 Hz and provides a user-selectable output of 100 to 125VAC. A 16A circuit breaker protects connected equipment. This UPS features a typical transfer time of 4 to 6 ms and a max of 10 ms, and transfer times can be adjusted by the user. The battery utilizes a sine waveform, ensuring smooth power output.

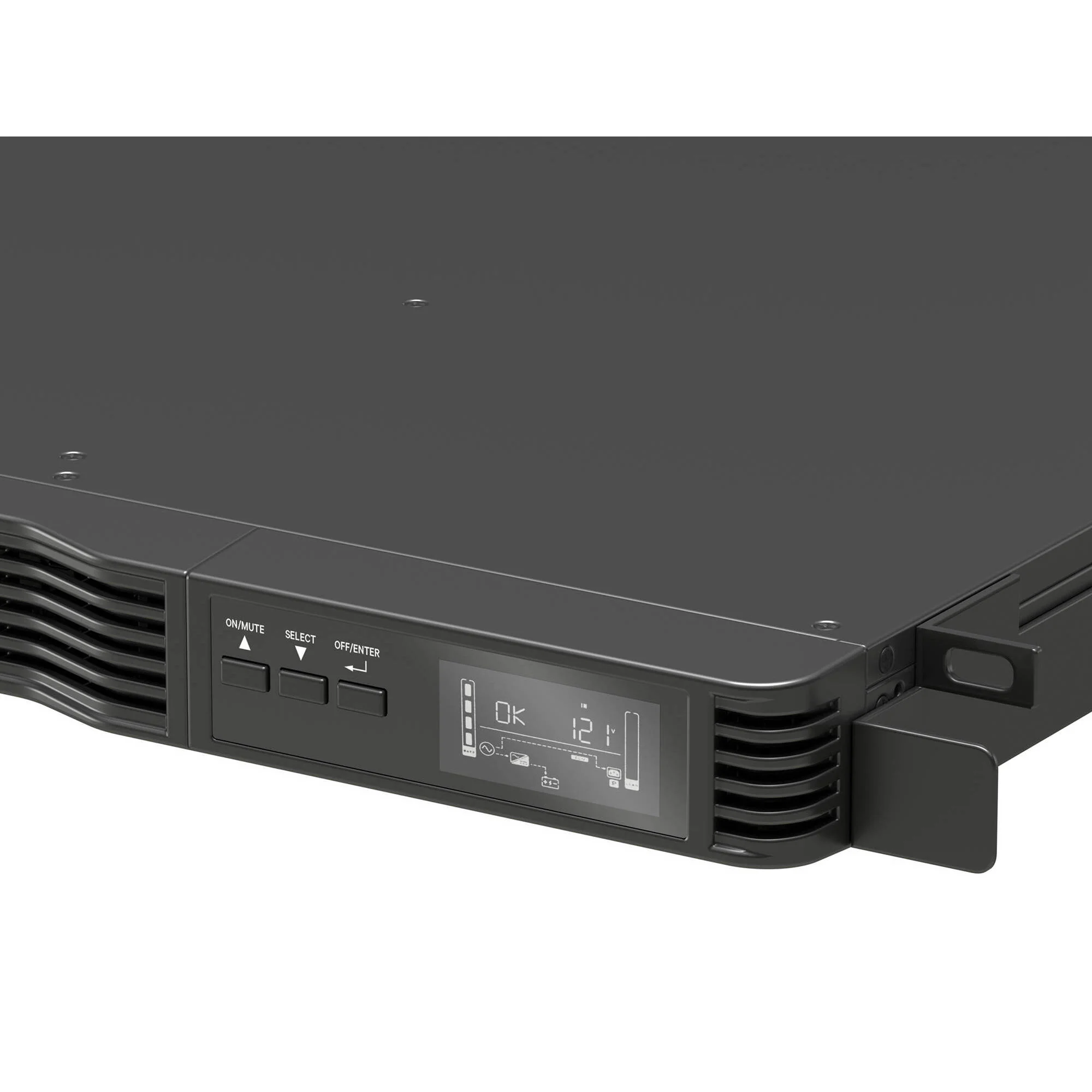

Utilizing user-replaceable, hot-swappable batteries, the PSl5-1500RM1201U features a recharge time of up to 90% in 6 hours. Connect to a host computer via a USB Type-B port and included cable. Users can also monitor status and performance using the integrated LCD display. An IntelliSlot port on the back of the unit allows for an optional communications card, enabling easy remote monitoring, startup, and restart. The PSl5-1500RM1201U incorporates a 10' power cable with an offset, right-angle NEMA 5-15P plug. A $400,000 Equipment Protection Plan ensures peace of mind in regard to connected equipment.
0.9 Output Power Factor
More usable power enables more connected loads, saving space and costs.
Wider Input Voltage Window
Prolongs battery life by allowing the UPS to maximize the use of utility power before transferring to battery when input exceeds specified limits.
Full Sequenced Battery Testing
The Liebert PSI5 UPS includes an automatic and manual self-diagnostic test feature. This provides a comprehensive analysis of the condition of the batteries within the UPS and will notify you when the internal batteries need to be replaced.
Advance Early Warning of UPS System Status
The Liebert PSI5 UPS offers multiple audible and visual alarms to immediately alert you to an input voltage fluctuation, output overload, low battery, or replace battery condition.
Battery-Backed Outlets

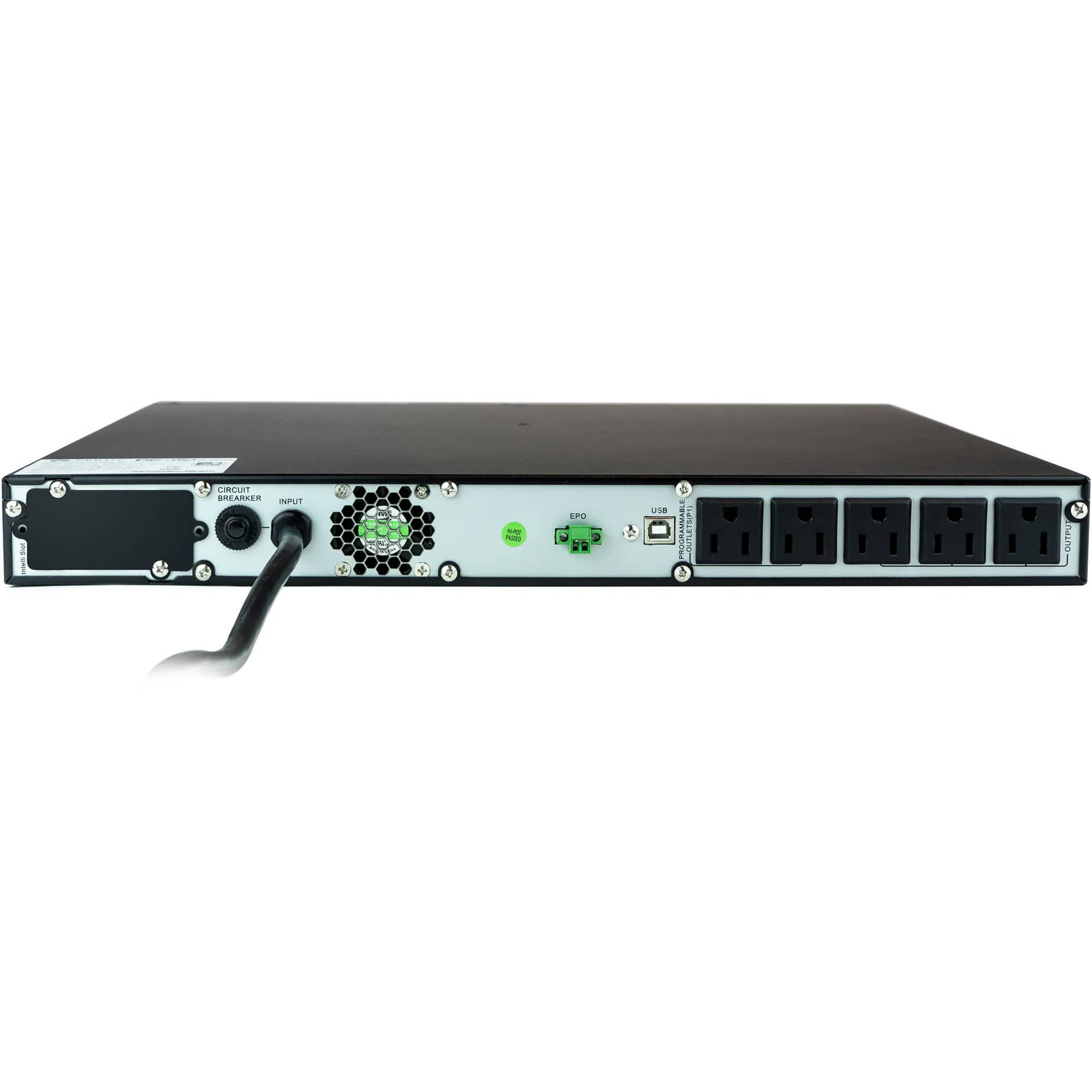

Connect ample equipment to the UPS via five NEMA 5-15R receptacles, two of which are user-controllable. All outlets are protected against surges and backed by battery power.
Configurable Input Voltage Window
Allows the UPS to be properly matched to the incoming utility power and adjusts its input window and transfer points to supply regulated power to connected loads within the selected range.
Programmable Outlet Group
Power cycle connected equipment and load shed on battery to extend run time.
Hot Swappable Batteries
Increase product life and provide prolonged UPS reliability. Batteries can be conveniently accessed from the bottom of the unit.
USB Communications
Power management functions provide monitoring of UPS status and manage the automatic orderly shutdown of the computer if a power outage ever exceeds the battery capacity of the UPS. Trellis Power Insight Shutdown Software is available from the manufacturer.
Remote Emergency Power Off
Allows the UPS to be remotely shut down during an emergency.
SNMP Communication Option
Add an optional Liebert IntelliSlot IS-UNITY communications card to enable SNMP and web-based management for the Liebert PSI5 UPS. The Liebert IntelliSlot UNITY communication cards provide network integration connectivity and allow you to monitor and control your UPS from your network management station or any PC.
Other SNMP Features
Sends both SNMP traps and emails for event notifications.
Auto-senses 10M/100M Ethernet connectors.
Compatible with shutdown software to ensure proper computer shutdown.
IS-UNITY-DP Communications Card also supports Vertiv Liebert SN Series Environmental Sensors.
Allows remote monitoring, start-up, or restart for connected equipment.
![]()
UPC: 812105028717
In the Box
- VERTIV Liebert PSl5-1500RM1201U 1U Rack Mount UPS
- USB Cable (6')
- Pair of Rack Mount Handles
- Pair of 4-Post Fixed Rails
- Mounting Hardware
- Limited 2-Year Warranty
VERTIV Liebert PSI5-1500RM1201U Specs
General
| Total Outlets |
5 x NEMA 5-15R |
| Protected Outlets |
5 x NEMA 5-15R (Battery and Surge) |
| Plug Type |
NEMA 5-15P Offset Right-Angle |
| USB Charging Ports |
None |
| SmartSlot Interface |
1 |
| Coax Protection |
None |
| Data Line Protection |
None |
| Communications |
USB via Type-B |
| Emergency Power Off (EPO) Support |
Yes |
| Topology |
Line Interactive |
| Transfer Time |
4 to 6 ms |
Power
| Maximum Wattage |
1350 W |
| Nominal Input Voltage |
120 VAC |
| Input Voltage Range |
75 to 146 VAC |
| Input Frequency |
60 Hz (Auto Sensing) |
| Nominal Output Voltage |
120 VAC |
| Output Voltage Range |
100 to 125 VAC |
| Output Frequency |
60 Hz ± 1% |
| Load Capacity |
1440 VA |
| Circuit Breaker Rating |
16 A |
| Maximum Efficiency |
98% |
| Waveform |
Sine Wave |
Battery
| Cells |
6 |
| Battery Capacity |
72 VAh |
| Chemistry |
Lead-Acid |
| Charging Time |
6 to 8 Hours |
| User Replaceable |
Yes |
| Replacement Battery |
PSI5- 15001UBATKIT |
| Hot-Swap Support |
Yes |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
20 to 90% |
| Storage Temperature |
-5 to 122°F / -20 to 50°C |
| Operating Altitude |
0 to 9942' / 0.0 to 3030 m |
| Noise Level |
45 dBA |
| Certifications |
FCC, UL, cUL, as per Manufacturer |
Physical
| Cable Length |
9.8' / 3 m |
| Rackmount Size |
1 RU (with Included Hardware) |
| Dimensions (W x H x D) |
17.2 x 1.7 x 24.8" / 436.9 x 43.2 x 629.9 mm |
| Weight |
45.6 lb / 20.7 kg |
Packaging Info
| Package Weight |
57.08 lb |
| Box Dimensions (LxWxH) |
27.88 x 7.13 x 6.5" |
