VERTIV Liebert GXT5-1500LVRT2UXL UPS
HomeStore

VERTIV Liebert GXT5-1500LVRT2UXL UPS

VERTIV Liebert GXT5-1500LVRT2UXL UPS

VERTIV Liebert GXT5-1500LVRT2UXL Overview

  • 1Description
  • 2Vertiv Liebert GXT5 Features
  • 3Designed for High Availability
  • 4User-Friendly Installation and Operation
  • 5Longer Service Life and Runtime of the Batteries
  • 6Optimized Energy and Capacity Management
  • 7Seamless Connectivity
  • 8UPS Technology
  • 9Efficient and Green Product
  • 10Solutions Wide

Designed for education, government, healthcare, retail and wholesale, banking, and financial and insurance industries, the GXT5-1500LVRT2UXL UPS from Vertiv Liebert has a 2 RU form factor and helps to ensure the health and availability of your IT infrastructure with premium power outage protection and continuous power conditioning. With online double-conversion technology, this UPS helps protect critical equipment in both centralized and edge-network applications against outages and other types of power disturbances without drawing on battery power, thereby extending battery life and minimizing replacements. The GXT5-1500LVRT2UXL can provide up to 6.7 minutes of use when running a full load of 1350W and up to 18.8 minutes of use when running a half load of 675W. When connected to an external battery cabinet, it can last for up to 32.4 minutes when running a full load or up to 79.7 minutes when running a half load. It also provides surge protection as per ANSI C62.41 Category B and its batteries can be recharged up to 90% in three hours.

This UPS features an output of 1350W / 1500 VA, a nominal input of 120V @ 50/60 Hz ±10 Hz, an input voltage range of 60-150V, six NEMA 5-15R battery backup outlets (four programmable and two non-programmable), a 10' NEMA 5-15P input connection, a sine waveform output, a USB Type-B port, a Serial RJ45 port, an IntelliSlot port, an external battery connector, and a 15A circuit breaker. Included is a tower stand, a 4-post rack-mounting kit, and a USB cable. Support is provided by a limited 3-year advanced replacement warranty and a limited $500,000 connected equipment protection plan.

Vertiv Liebert GXT5 Features

High Power Factor (0.9-1.0)

More usable power enables more connected loads saving space and costs.

Power Efficiency up to 95% In Online Mode

Thanks to Energy Star 2.0 certification, higher efficiency means optimized energy management and lower heat dissipation for energy savings and improved reliability.

Power Efficiency up to 98% In Active ECO Mode

Improved protection with maximum efficiency.

Colored Graphics LCD with Gravity-Sensitive Orientation

User-friendly interface provides insight to UPS status for easy installation, configuration, and operation.

Battery Cabinets with Auto-Detection

Be confident the UPS is set up correctly to report available runtime when used with external battery cabinets.

Compact Rack/Tower Design

Space-saving UPS provides rack-space optimization and flexible installation.

Product Warranty

Comprehensive coverage through a standard three-year advanced exchange warranty.

Designed for High Availability

The higher power factor (0.9 - 1.0) ensures the connection of more loads and IT equipment
With individually controlled output receptacles, you can manage power to individual devices without impacting other critical network equipment operation
Minimum downtime of the device provided by hot-swappable, user-replaceable battery modules which can be changed during operation
LIFE Services helps to enhance uptime, as well as operational efficiency with continuous remote monitoring, expert analysis, and proactive response
Automatic self-test

User-Friendly Installation and Operation

Easy-to-read, gravity-sensing graphical color display
Intuitive user interface for local configuration and management
Support for the Vertiv suite of remote management tools (Trellis Power Insight, RDU101 network interface card, and serial connectivity support)
Auto-detection of external battery cabinets enables faster deployment and accurate runtime information
Remote UPS firmware upgrade capability ensures the UPS has the latest features and enhancements

Longer Service Life and Runtime of the Batteries

Extended runtimes provided by the addition of external battery cabinets
Improved battery care by temperature-compensated battery charging
Intelligent battery-health management ensures a longer service life (optimized battery maintenance and replacement when needed)

Optimized Energy and Capacity Management

Active ECO operating mode with up to 98% efficiency
Efficiency in online double conversion mode up to 95%
Energy Star 2.0 certified
Four individually programmable output receptacles can be used to extend runtime for the most critical loads and smart disconnection of the less critical ones

Seamless Connectivity

Four onboard, user-definable dry-contact I/O for integration of support management systems
Supports SNMP, web, and environmental sensors with the optional RDU101 communications card
Serial connection for integration of Avocent ACS product or direct serial management and control of the UPS

UPS Technology

High output power factor of up to 1.0
Full-color graphic LCD with gravity-sensing orientation
Individually controllable output power sockets
External battery cabinets with auto-detection
Battery health status and replacement date prediction
Remote management, update, and configuration capabilities
Optimized thermal management and variable speed fan

Efficient and Green Product

High efficiency in online mode
Energy Star 2.0 certified
Higher efficiency of up to 98% in Active ECO mode
Programmable outlets for power cycling hung equipment and optimum battery usage
Compliance with Restriction of Hazardous Substances (RoHS) directive and the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) regulation

Solutions Wide

Compact rack/tower design
Broad range of services and extended warranty
Easy to install, configure, and operate
Vertiv RDU101 network communications card with advanced features
Compatibility with environmental sensors
Integrated dry-contacts with selectable definition
Free Trellis Power Insight management software
Serial port for out-of-band management with Avocent serial consoles
Automatic internal bypass and external maintenance bypass options
UPC: 767041026313

In the Box

  • VERTIV Liebert GXT5-1500LVRT2UXL UPS
  • Tower Stand
  • 4-Post Rack Mounting Kit
  • USB Cable
  • $500,000 Connected Equipment Protection Plan
  • Limited 3-Year Advanced Replacement Warranty
    Table of Contents
    • Description
    • Vertiv Liebert GXT5 Features
    • Designed for High Availability
    • User-Friendly Installation and Operation
    • Longer Service Life and Runtime of the Batteries
    • Optimized Energy and Capacity Management
    • Seamless Connectivity
    • UPS Technology
    • Efficient and Green Product
    • Solutions Wide

    VERTIV Liebert GXT5-1500LVRT2UXL Specs

    General
    Total Outlets 6 x NEMA 5-15R
    Protected Outlets 6 x NEMA 5-15R (Battery and Surge)
    Plug Type NEMA 5-15P
    Communications USB via Type-B
    Serial via RJ45
    Power
    Maximum Wattage 1350 W
    Nominal Input Voltage 120 VAC
    Input Voltage Range 60 to 150 VAC
    Input Frequency 50/60 Hz ± 10 Hz (Auto Sensing)
    Nominal Output Voltage 120 VAC
    Output Voltage Range 110 to 125 VAC
    Load Capacity 1500 VA
    Circuit Breaker Rating 15 A
    Maximum Efficiency 98%
    Power Factor Correction 1
    Waveform Sine Wave
    Battery
    Cells 3
    Battery Capacity 108 VAh
    Chemistry Lead-Acid
    Full-Load Runtime 6.7 Minutes
    Half-Load Runtime 18.8 Minutes
    Recharge Time 4 Hours
    User Replaceable Yes
    Replacement Battery GXT5-48BATKIT
    Hot-Swap Support Yes
    External Battery Connection 1 x IEC Jumper
    Environmental
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 0 to 95%
    Storage Temperature -4 to 140°F / -20 to 60°C
    Operating Altitude 10,000' / 3048 m
    Storage Altitude 50,000' / 15,240 m
    Noise Level 45 to 46 dBA
    Certifications CSA, FCC-A, REACH, RoHS, WEEE, as per Manufacturer
    Physical
    Cable Length 10' / 3 m
    Rackmount Size 2 RU
    Dimensions (W x H x D) 16.9 x 3.4 x 18.5" / 42.9 x 8.6 x 47 cm
    Weight 46.2 lb / 21 kg
    Packaging Info
    Package Weight

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $3,032.97
    VERTIV Liebert GXT5-1500LVRT2UXL UPS—
    $3,032.97

    More Images

    VERTIV Liebert GXT5-1500LVRT2UXL UPS - Image 2

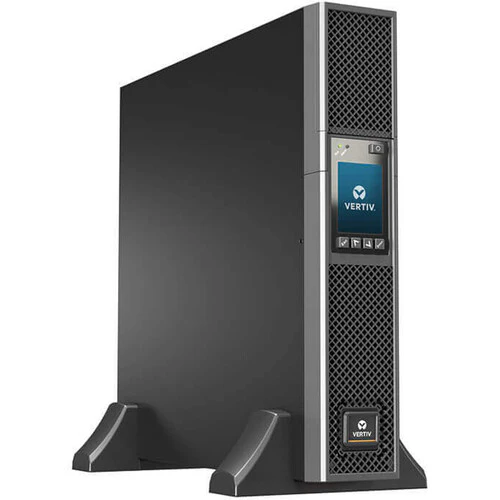

    VERTIV Liebert GXT5-1500LVRT2UXL UPS - Image 3

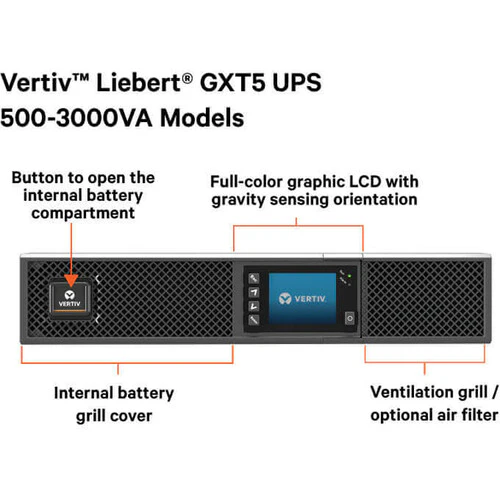

    VERTIV Liebert GXT5-1500LVRT2UXL UPS - Image 4

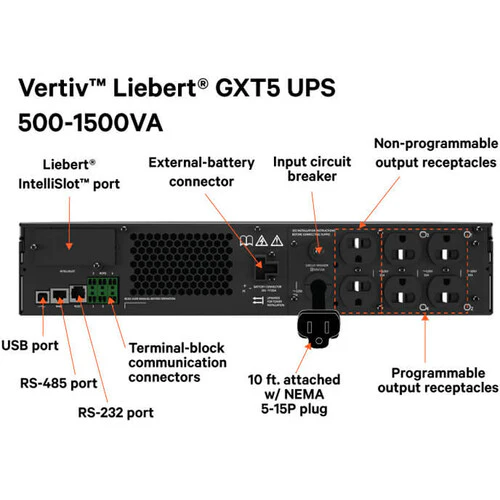

    VERTIV Liebert GXT5-1500LVRT2UXL UPS - Image 5
