TRACOPOWER TMH 2405D Isolated Board Mount DC/DC Converter, Ultraminiature, Fixed, 2 Output, 21.6 V, 26.4 V, 2 W, 5 V
TRACOPOWER TMH 2405D Isolated Board Mount DC/DC Converter, Ultraminiature, Fixed, 2 Output, 21.6 V, 26.4 V, 2 W, 5 V
The TMH 2405D is a 2-output 2W board-mount isolated DC to DC Converter that offer the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance at low cost.
- Fully SMD design
- 1000VDC I/O Isolation
- High efficiency up to 83%
- Industry standard pinout
- 100% Burn-in (8h)
- -40 to +85°C Operating temperature range
Applications
Power Management
- :
- 2W
- :
- 21.6V
- :
- Through Hole
- :
- -5V
- :
- 200mA
- :
- 19.5mm
- :
- 7.5mm
- :
- TMH Series
- :
- SIP
- :
- -
- :
- -
- :
- 5V
- :
- -
- :
- 2 Output
- :
- Fixed
- :
- 26.4V
- :
- 200mA
- :
- 10.2mm
Product details
| Output Power Max | 2W |
| Input Voltage DC Min | 21.6V |
| DC / DC Converter Mounting | Through Hole |
| Output Voltage - Output 2 | -5V |
| Output Current - Output 2 | 200mA |
| Depth | 19.5mm |
| Width | 7.5mm |
| Product Range | TMH Series |
| DC / DC Converter Type | SIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 2 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 26.4V |
| Output Current - Output 1 | 200mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TMH 2405D |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |

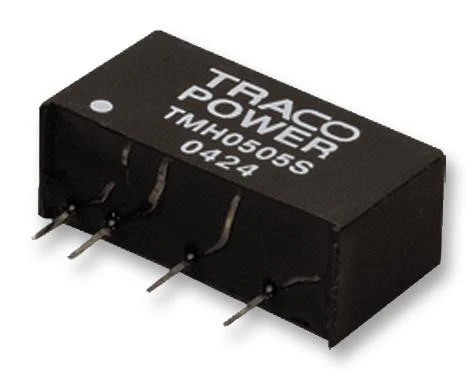

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
