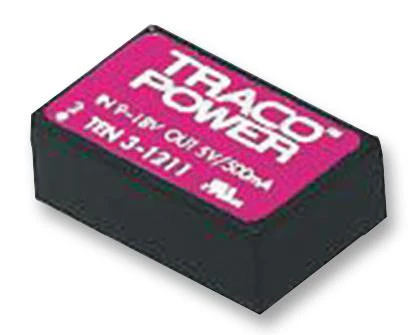

TRACOPOWER TEN 3-2411 Isolated Board Mount DC/DC Converter, 2:1 Input, 1 Output, 3 W, 5 V, 500 mA
TRACOPOWER TEN 3-2411 Isolated Board Mount DC/DC Converter, 2:1 Input, 1 Output, 3 W, 5 V, 500 mA
- Wide 2:1 input range
- 79% Efficiency
- 1500VDC I/O isolation
- ±0.02%/K Temperature coefficient
- 4000µF Maximum capacitive load
- 300kHz Switching frequency
- Full SMD design
- High reliability
Applications
Power Management, Communications & Networking, Industrial
Product details
| Output Power Max | 3W |
| Input Voltage DC Min | 18V |
| DC / DC Converter Mounting | Surface Mount Device |
| Output Voltage - Output 2 | - |
| Output Current - Output 2 | - |
| Depth | 32mm |
| Width | 20.3mm |
| Product Range | TEN 3 Series |
| DC / DC Converter Type | DIP |
| Approvals & Standards | - |
| Output Voltage - Output 3 | - |
| Output Voltage - Output 1 | 5V |
| Output Current - Output 3 | - |
| No. of Outputs | 1 Output |
| DC / DC Converter Output Type | Fixed |
| Input Voltage DC Max | 36V |
| Output Current - Output 1 | 500mA |
| Height | 10.2mm |
Other details
| Brand | TRACOPOWER |
| Part Number | TEN 3-2411 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
