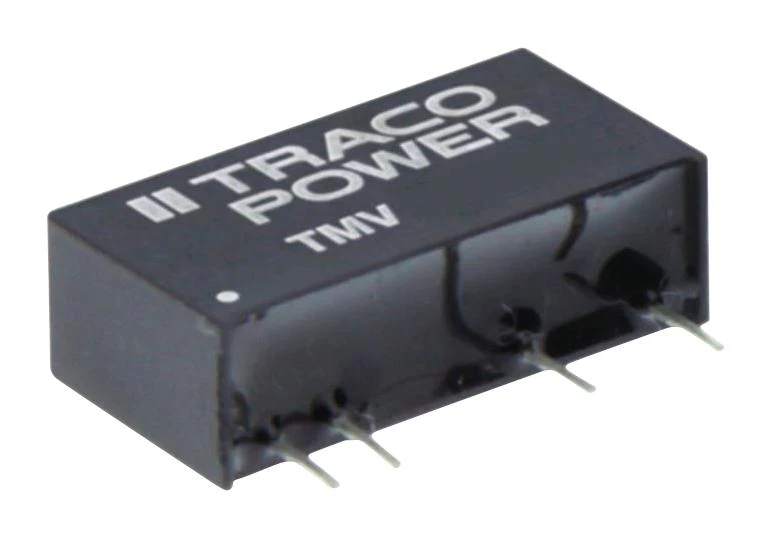

Traco Power TMV 2405S TMV 2405S Isolated Through Hole DC/DC Converter 1:1 1 W Output 5 V 200 mA

TMV series are miniature, isolated 1 W DC/DC-converters with high isolation in a single-in-line package (SIP). Requiring only 1.2cm² board space they offer the ideal solution in many space critical applications for board level power distribution. The use of SMD-technology makes it possible to offer a product with high performance at low cost.

• Isolated single output module
• I/O isolation of 3000VDC
• Unregulated device
• Pin-compatible with other manufacturers
• 100% burn-in (8h)
• UL 94V-0 rated non conductive plastic casing material
• Ripple and noise (20MHz bandwidth) of 65mVp-p typ / 100mVp-p max
• High efficiency, switching frequency of 70 to 120KHz (frequency modulation)
• 3-year product warranty
• Non conductive plastic (UL 94V-0 rated) casing

Other details

Brand	TRACO POWER
Part Number	TMV 2405S
Quantity	Each
Technical Data Sheet EN
