TRACO POWER TEL 2-1211 Isolated Through Hole DC/DC Converter, ITE, 2:1, 2 W, 1 Output, 5 V, 400 mA
TRACO POWER TEL 2-1211 Isolated Through Hole DC/DC Converter, ITE, 2:1, 2 W, 1 Output, 5 V, 400 mA
The TEL 2-1211 is an isolated 2W DC/DC Converter requires only 3.25cm² of space on the PCB it provides a complete DC/DC converter without need of any external components. Wide input range of 9 to 18VDC and 5VDC output, tightly regulated output voltage qualifies this converter for many applications.
- Regulated output
- Low ripple and noise
- Indefinite short-circuit protection
- Wide 2:1 input range
- 1500V I/O isolation
- 77% Typical efficiency
- 12VDC Nominal input voltage
Applications
Industrial, Consumer Electronics
Footnotes
NRND - Not Recommended for New Designs
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications: ITE |
| Input Ratio: 2:1 |
| Output Power Max: 2W |
| No. of Outputs: 1 Output |
| Output Voltage - Output 1: 5V |
| Output Current - Output 1: 400mA |
| Output Voltage - Output 2: - |
| Output Current - Output 2: - |
| Output Regulation: Regulated |
| Isolation Voltage: 1.5kV |
| DC / DC Converter Type: DIP |
| Input Voltage DC Nom: 12V |
| DC / DC Converter Output Type: Fixed |

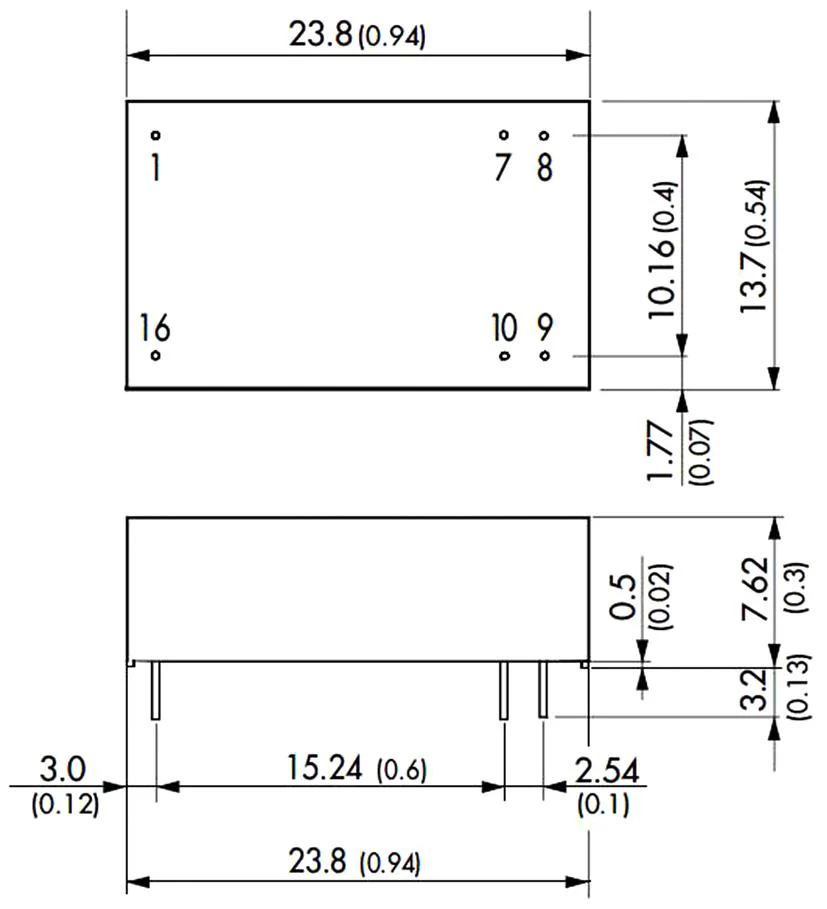

| Width: 13.7mm |
| Height: 7.2mm |
| Depth: 23.8mm |
| Input Voltage DC Min: 9V |
| Input Voltage DC Max: 18V |
| Product Range: TEL 2 Series |
Other details
| Brand | TRACO POWER |
| Part Number | TEL 2-1211 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
