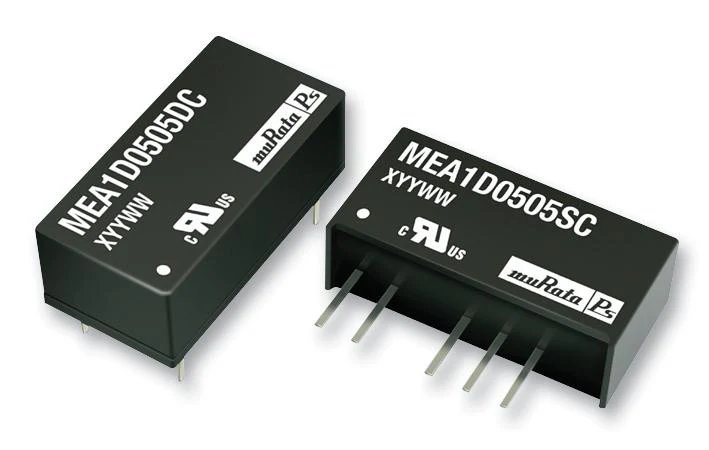

MURATA POWER SOLUTIONS MEA1D1515SC Isolated Board Mount DC/DC Converter, 1kV Isolation, 2 Output, 1 W, 15 V, 33 mA, -15 V, 33 mA
MURATA POWER SOLUTIONS MEA1D1515SC Isolated Board Mount DC/DC Converter, 1kV Isolation, 2 Output, 1 W, 15 V, 33 mA, -15 V, 33 mA
Product details
| No. of Outputs | 2 Output |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 1 | 33mA |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 33mA |
| Output Voltage - Output 3 | - |
| Output Current - Output 3 | - |
| Product Range | MEA1 Series |
| Input Voltage DC Min | 13.5V |
| Input Voltage DC Max | 16.5V |
| DC / DC Converter Output Type | Fixed |
| DC / DC Converter Type | SIP |
| DC / DC Converter Mounting | Through Hole |
| Approvals & Standards | UL |
| Width | 6.15mm |
| Height | 10.15mm |
| Depth | 19.65mm |
Other details
| Brand | MURATA POWER SOLUTIONS |
| Part Number | MEA1D1515SC |
| Quantity | Each |
| Technical Data Sheet EN |  |
| 3D Product Image EN | |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $7.20
-70%$7.20
$2.16MURATA POWER SOLUTIONS MEA1D1515SC Isolated Board Mount DC/DC Converter, 1kV Isolation, 2 Output, 1 W, 15 V, 33 mA, -15 V, 33 mA
