MICROCHIP MPFS-DISCO-KIT SoC Discovery Kit, MPFS095T-1FCSG325E, PolarFire, 64bit, RISC-V, NCNR
MICROCHIP MPFS-DISCO-KIT SoC Discovery Kit, MPFS095T-1FCSG325E, PolarFire, 64bit, RISC-V, NCNR
Product Overview

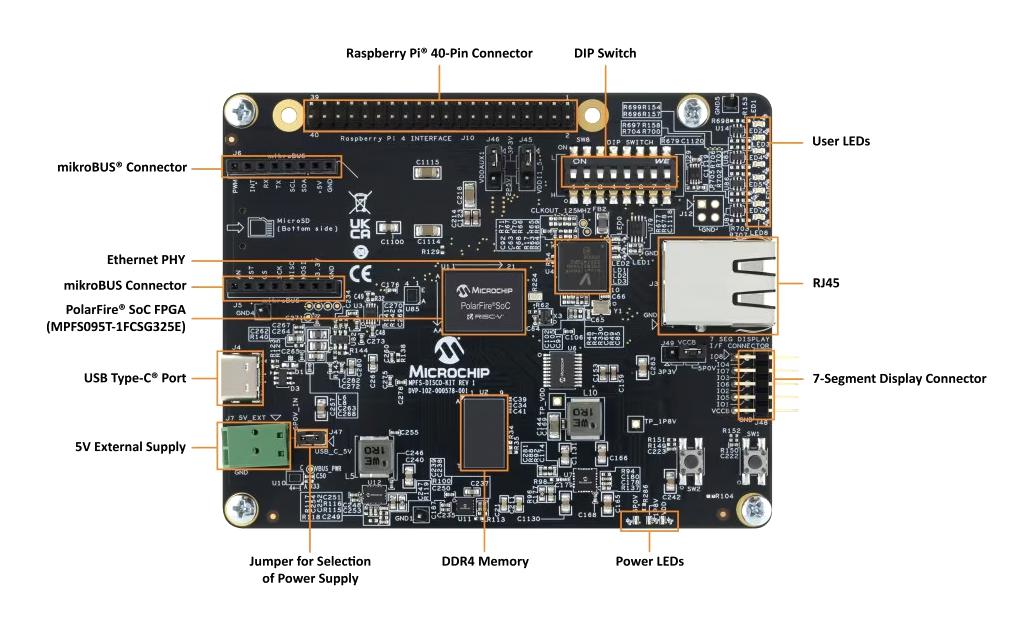

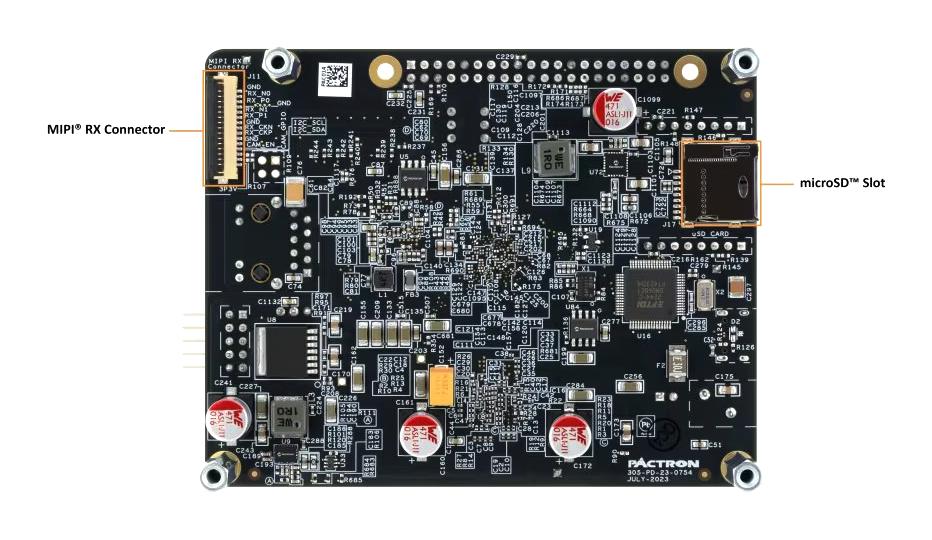

MPFS-DISCO-KIT is a PolarFireS SOC discovery kit (MPFS-DISCO-KIT). This is a cost-optimized kit with general-purpose interfaces that enables to evaluate features of the MPFS095T-1 FCSG325E FPGA device. The Discovery Kit supports the following interfaces such as microSD� card, DDR4, SGMII, USB-UART, mikroBUS, 40-pin Raspberry Pi 4 interface connector. The PolarFire SoC device is programmed using the onboard FlashPro5 programmer. FlashPro5 programmer is also used to debug the FPGA fabric using Identify or SmartDebug and to debug embedded applications using SoftConsole.
- 5V/3A power supply (USB Type-C) or 5V external supply (2 position terminal block1)
- 50MHz and 125MHz oscillator
- 7-Segment display connector
- General purpose I/O: debug- push buttons, dip switches and Light Emitting Diodes (LEDs)
Contents

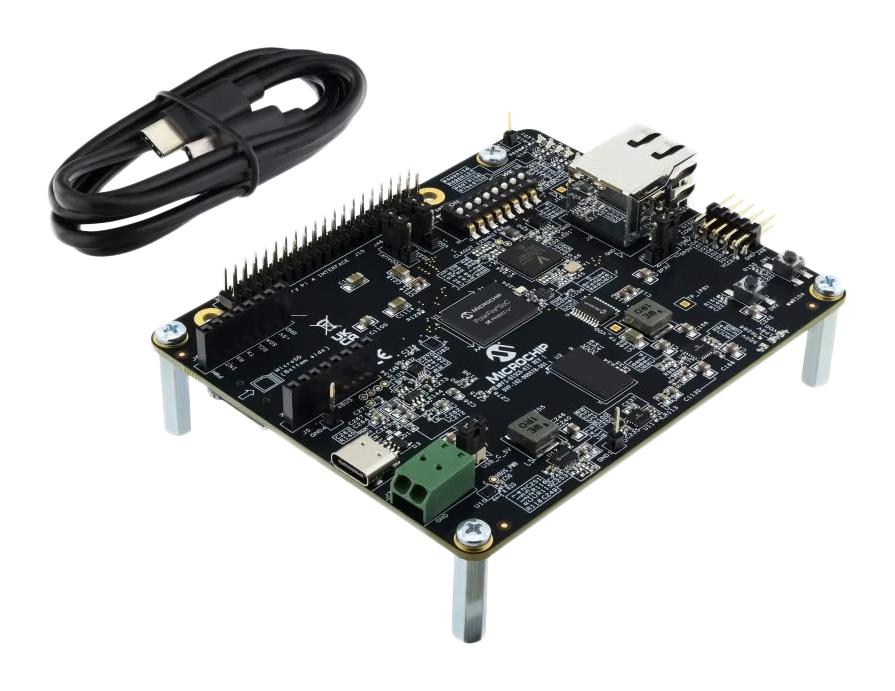

PolarFire® SoC Discovery Kit Board with MPFS095T-1FCSG325E, USB 2.0 Cable C Male to C Male 3.28' (1.00m) Shielded and Quickstart card.
Product details
Other details
| Brand | MICROCHIP |
| Part Number | MPFS-DISCO-KIT |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
