DFROBOT SEN0297 Thin Film Pressure Sensor, 30g to 1.5Kg, -40°C to 85°C, RP-C Series
DFROBOT SEN0297 Thin Film Pressure Sensor, 30g to 1.5Kg, -40°C to 85°C, RP-C Series
Product Overview

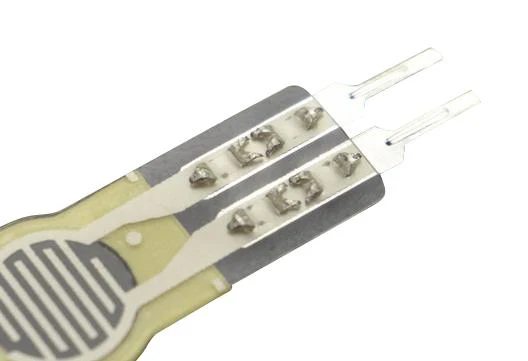

SEN0297 is a thin film pressure sensor. This is a circular flexible thin film pressure sensor of long legs with a diameter of 18.3mm, which can be used to realize highly sensitive detection of pressure. The sensor is durable and designed to sense static and dynamic pressure in a high respond speed. Its advantages of recording the intensity and frequency of force make it widely used in all kinds of applications, such as, pressure switches, bed monitoring system, intelligent sneaker and medical device system. This sensor is also very easy to use. It is made of ultra-thin film of excellent mechanical property, excellent conductive materials and nanometre pressure sensitive layers. There are thin film and pressure sensitive layer on the upper layer of the sensor, and thin film and conductive circuit on the lower layer. These two layers are glued together by double sided tape.
- 0.3mm thickness, 30g, trigger when default resistance�200kohm trigger force
- Pressure measuring range from 30g to 1.5kg
- Static pressure and dynamic pressure measurement
- Initial resistance is �10Mohm, activation time is �0.01S
- �1million times lifespan, +10%, (RF+ -RF-)/FR+, 1000g force hysteresis
- Response time is �10ms, drift is �5%, 1Kg force, static load 24H
- Operating temperature range from -40 to +85°C
Product details
Other details
| Brand | DFROBOT |
| Part Number | SEN0297 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
