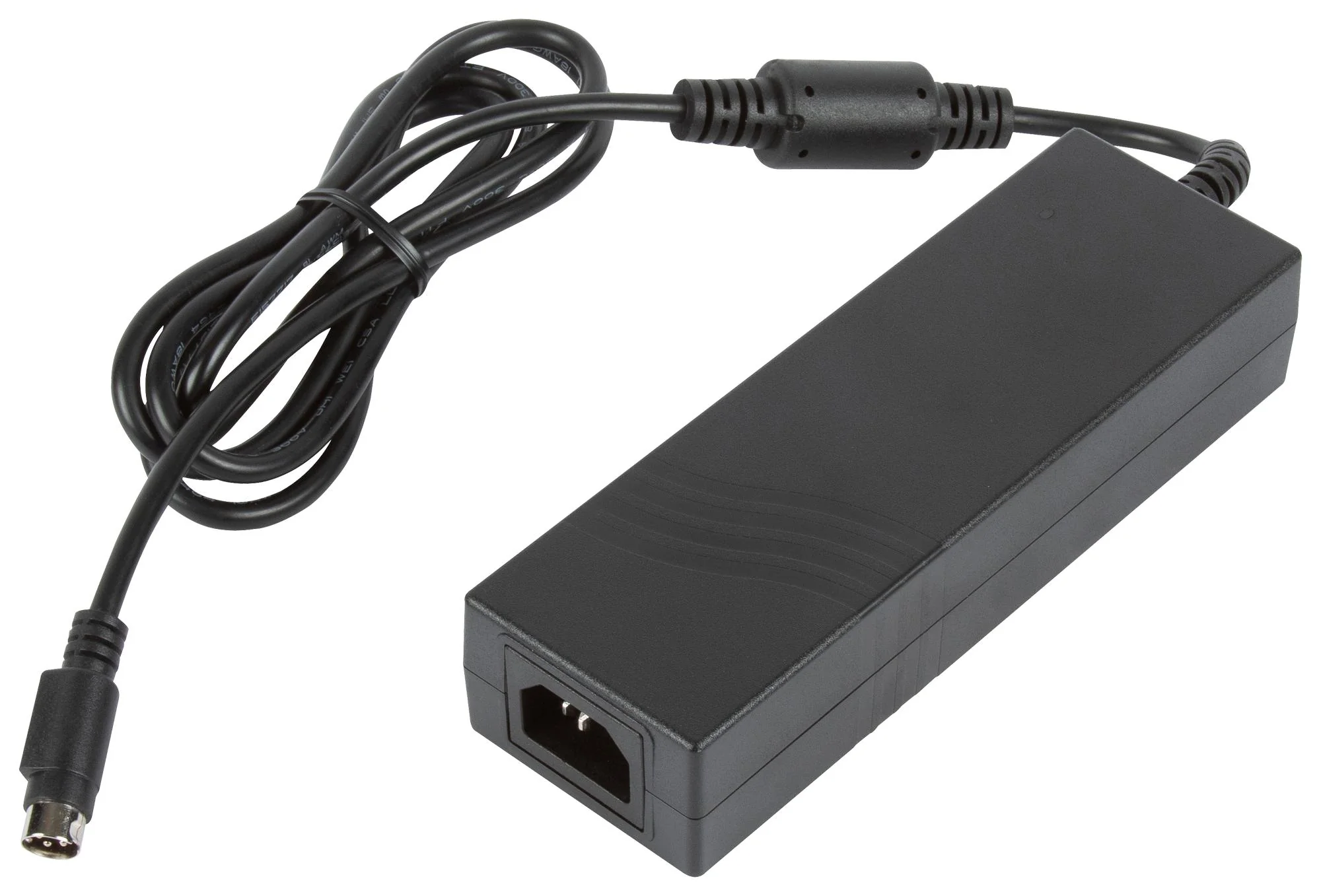

XP POWER AQM200PS24C2 AC/DC Power Supply, Medical, 1 Output, 200 W, 24 VDC, 8.3 A
Product Overview
AQM200PS24C2 is an AQM200 series ultra compact GaN based medical external AC-DC power supply. AQM�s GaN-based design offers high efficiency and high power density, enabling a 50% size reduction relative to traditional designs. The AQM series also features a fully sealed enclosure with IP22 compliance and a smooth surface finish, ensuring easy cleaning in clinical environments. AQM�s worldwide industrial and medical safety approvals, Class B conducted and radiated emissions, 2 x MOPP isolation and low leakage current benefits system designers with easy integration into a wide range of medical applications including imaging, patient monitoring, patient treatment, hospital equipment, and industrial applications such as test & measurement, process control and robotics.
- Universal, single-phase input: 85 to 264VAC
- Output voltage is 24VDC
- Output current is 8.3A
- 93.0% efficiency
- Medical & ITE safety agency approvals
- Low earth leakage current
- Less than 0.15W standby power
- 0 to +60°C operation
- Class II version
- Dimension is 166.5 x 54.2 x 33.0mm (6.56� x 2.13� x 1.30�), 3 year warranty
Product details
Other details
| Brand | XP POWER |
| Part Number | AQM200PS24C2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
