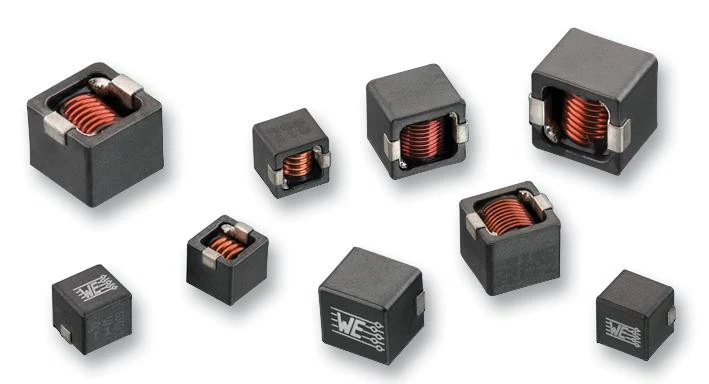

WURTH ELEKTRONIK 7443320330 Surface Mount Power Inductor, WE-HCC Series, 3.3 µH, 17 A, 17 A, Shielded, 4400 µohm
WURTH ELEKTRONIK 7443320330 Surface Mount Power Inductor, WE-HCC Series, 3.3 µH, 17 A, 17 A, Shielded, 4400 µohm
Product details
| Product Range | WE-HCC Series |
| Inductance | 3.3µH |
| RMS Current (Irms) | 17A |
| Saturation Current (Isat) | 17A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.0044ohm |
| Power Inductor Case | 12.1mm x 11.4mm x 9.5mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 7443320330 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $3.77
-70%$3.77
$1.13WURTH ELEKTRONIK 7443320330 Surface Mount Power Inductor, WE-HCC Series, 3.3 µH, 17 A, 17 A, Shielded, 4400 µohm
Product details
| Product Range | WE-HCC Series |
| Inductance | 3.3µH |
| RMS Current (Irms) | 17A |
| Saturation Current (Isat) | 17A |
| Inductor Construction | Shielded |
| DC Resistance Max | 0.0044ohm |
| Power Inductor Case | 12.1mm x 11.4mm x 9.5mm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 7443320330 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN | |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
