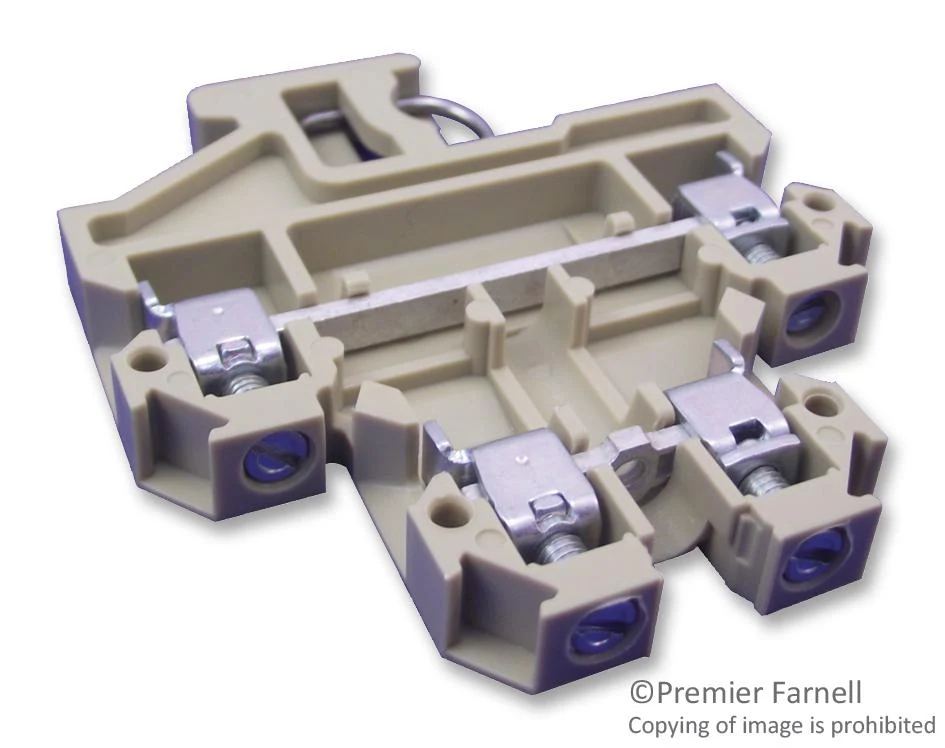

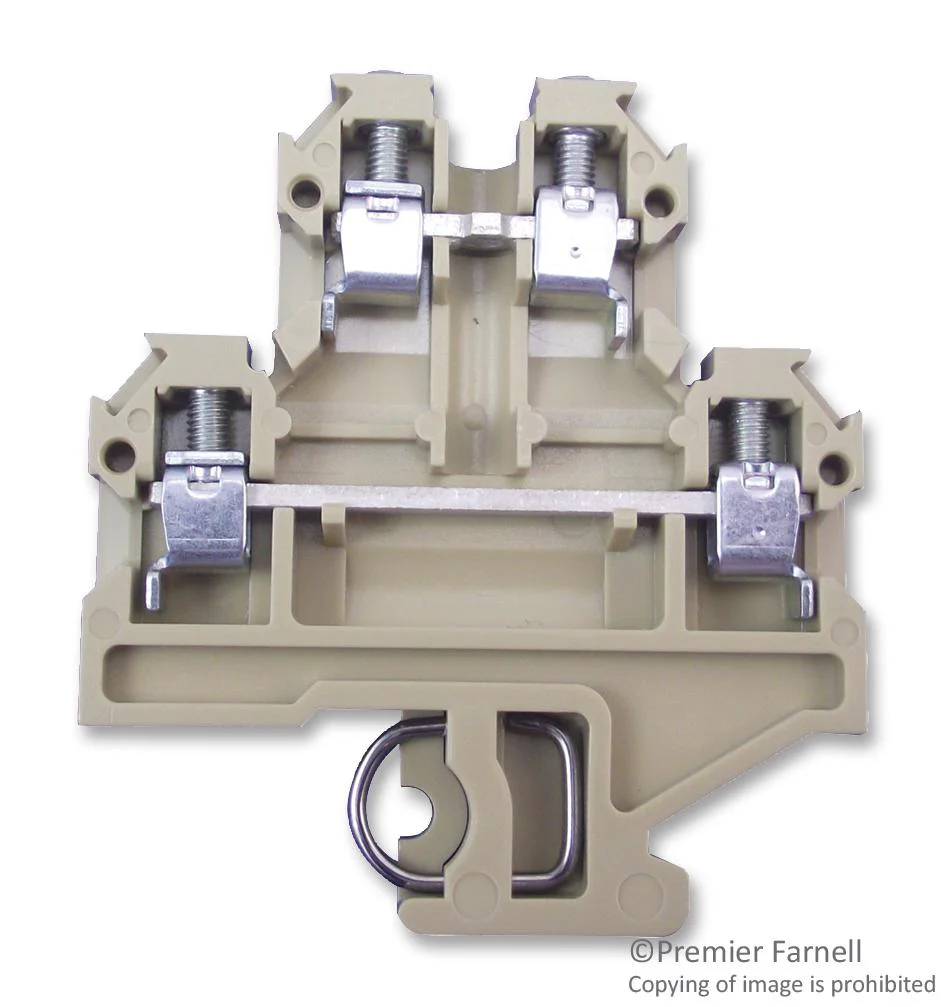

Weidmuller 035546 DK4 035546 DK4 DIN Rail Mount Terminal Block 4 Ways 26 AWG 12 mm² Screw 32 A

The 035546 DK4 is a 4-position 2-level feed through double tier DIN rail Terminal Block with PA 66 (polyamide 66) and beige/yellow colour. Screw connection, for screwable cross-connection, one end without connector, TS32 mounting rail and Clamped type mounting. Right open side, 2.5mm² conductor cross-section, flexible plus plastic collar maximum connection, M3 clamping screw and A3 gauge. With twin wire-end ferrules ZH 0.5 to ZH 2.5 and 26 to 12AWG wire size.

• UL94V2 Flammability rating
• 6kV Rated surge voltage
• 1mR Volume resistance

Applications

Industrial

Other details

Brand	WEIDMULLER
Part Number	035546 DK4
Quantity	Each
Technical Data Sheet EN
