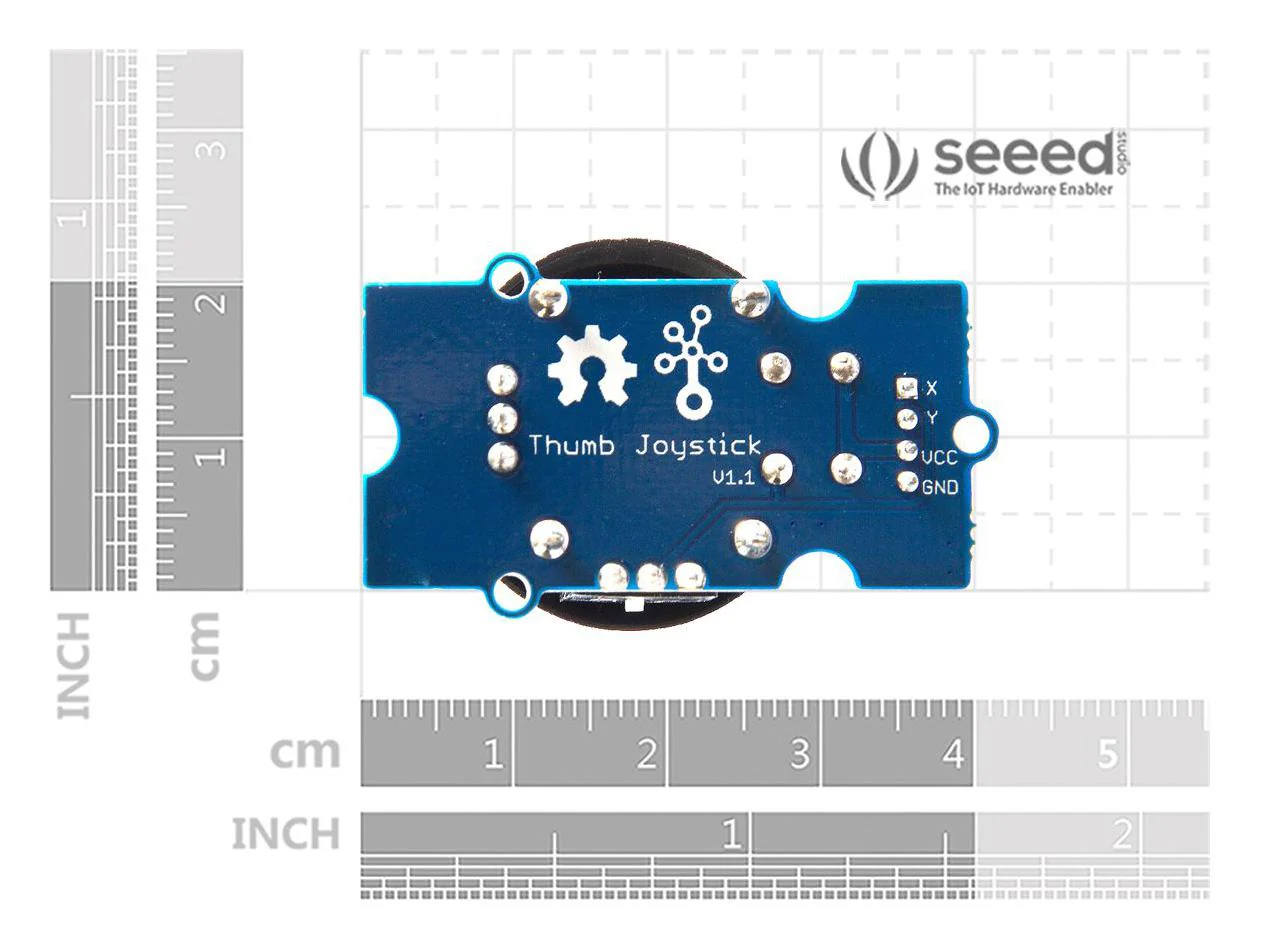

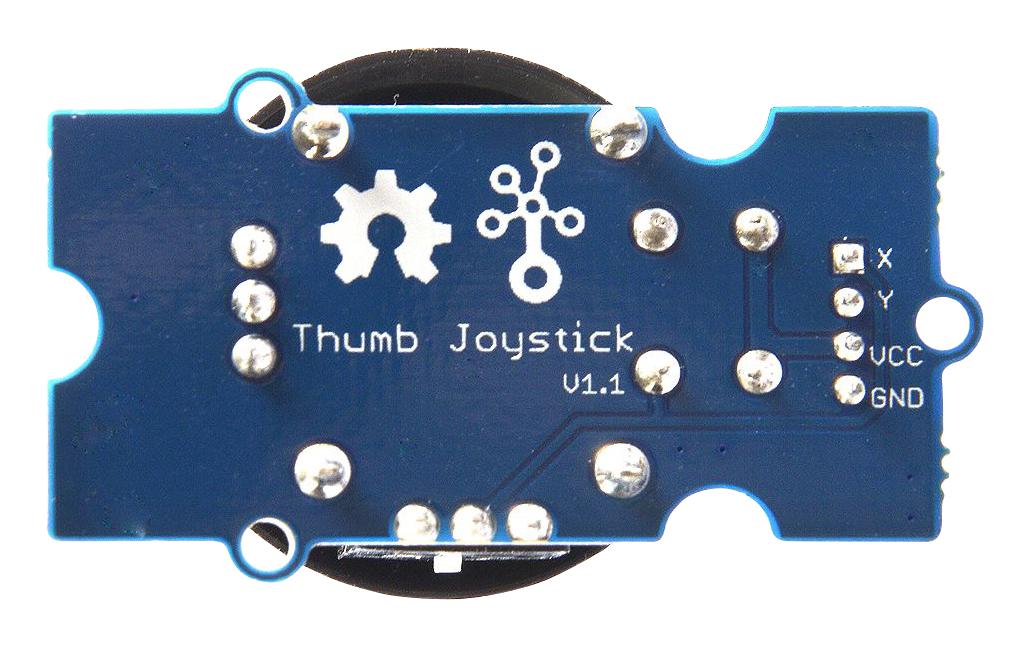

Seeed Studio 101020028 101020028 Thumb Joystick Module With Cable 4.75V to 5.25V Arduino & Raspberry Pi Board

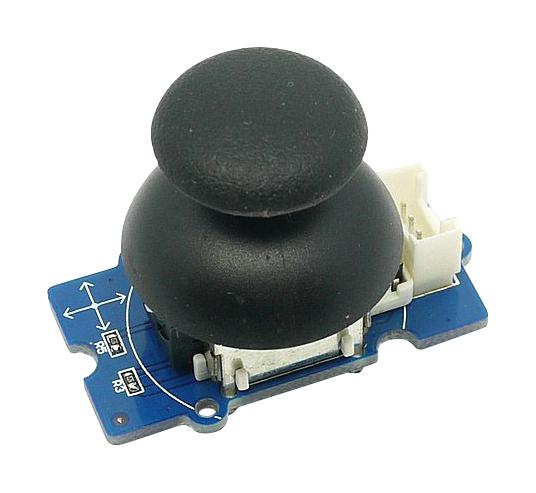

Grove - Thumb Joystick is a Grove compatible module which is very similar to the 'analogue' joystick on PS2 (PlayStation 2) controllers. Two direction movements will output different analogue signals as they are actually two potentiometers. The resistor is ~10k for each. The joystick also has a push button that can be used for special applications. When the module is in working mode, it outputs two analogue values representing two directions. The value is restricted in a smaller range (e.g 200~700)compared to the normal joystick that is around 1023 when the button is pushed, so that the MCU can detect the action of pressing.

• Grove compatible, with 4pin universe 2.0mm connector
• 5V/3.3V compatible
• Analog output (maximal value will be got when the button is pushed)

Contents

Grove - thumb joystick x 1, Grove cable x 1.

Product details

Accessory Type	Thumb Joystick Module
For Use With	Arduino & Raspberry Pi Board
Product Range	-

Other details

Brand	SEEED STUDIO
Part Number	101020028
Quantity	Each
Technical Data Sheet EN
