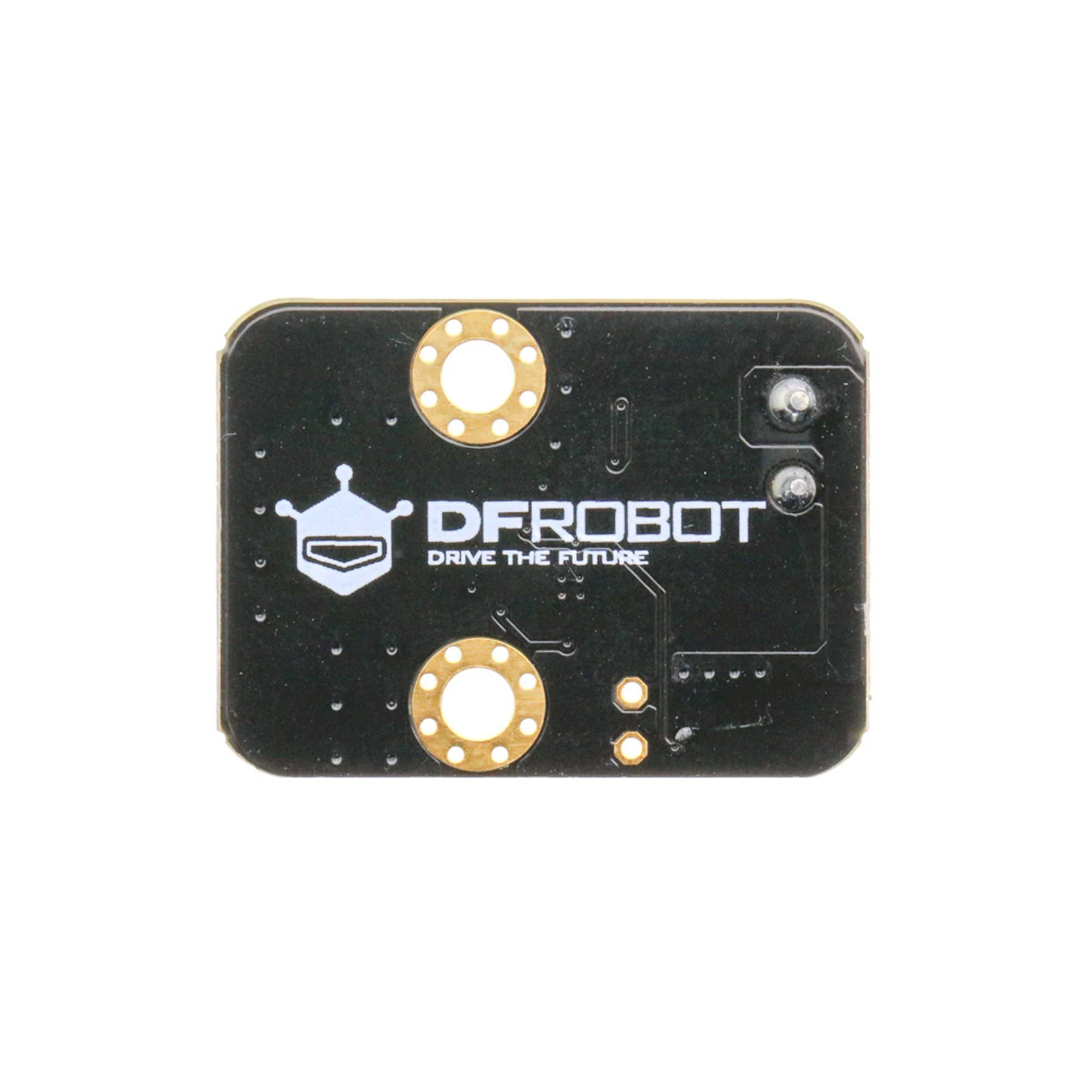

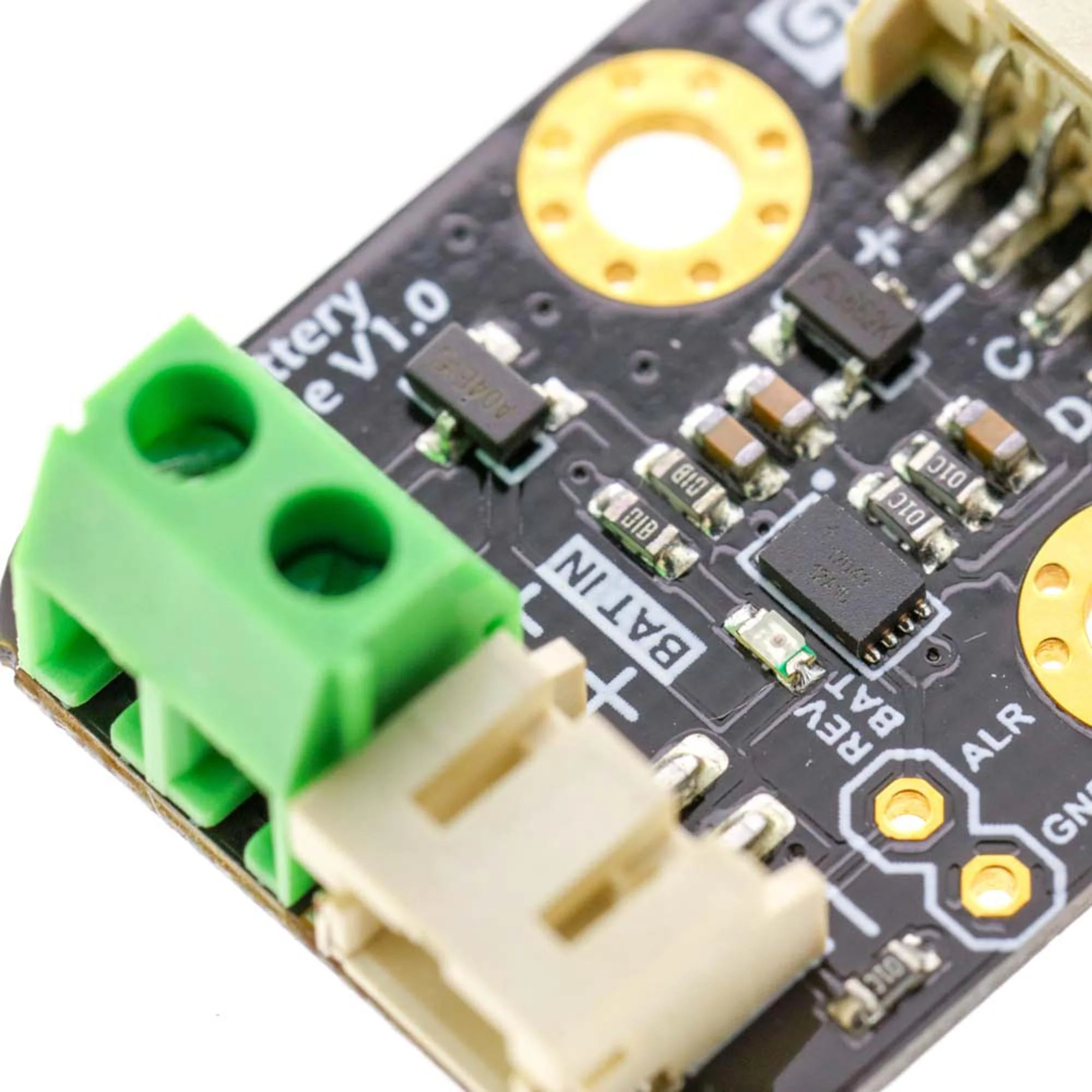

Dfrobot DFR0563 DFR0563 Battery Fuel Gauge Gravity I2C 3.7V Lithium Dfrduino UNO R3 & Raspberry Pi 3B Development Board

• Gravity I2C 3.7V Li battery fuel gauge module
• Maxim's patented algorithm, accurate voltage and remaining power readings of lithium battery
• No full-to-empty relearning process, no offset accumulation errors, plug and play
• Wide input voltage, compatible with 3.3V and 5V controllers
• Programmable low power alert interrupt threshold
• Battery reverse connection protection
• Used for solar weather station, street light, lithium battery charger and robotics
• 3.3V to 6.0V input voltage (VCC), 2.5V to 4.2V battery input voltage (BAT IN)
• 3.7V Li-polymer/Li-ion battery, 50uA operating current

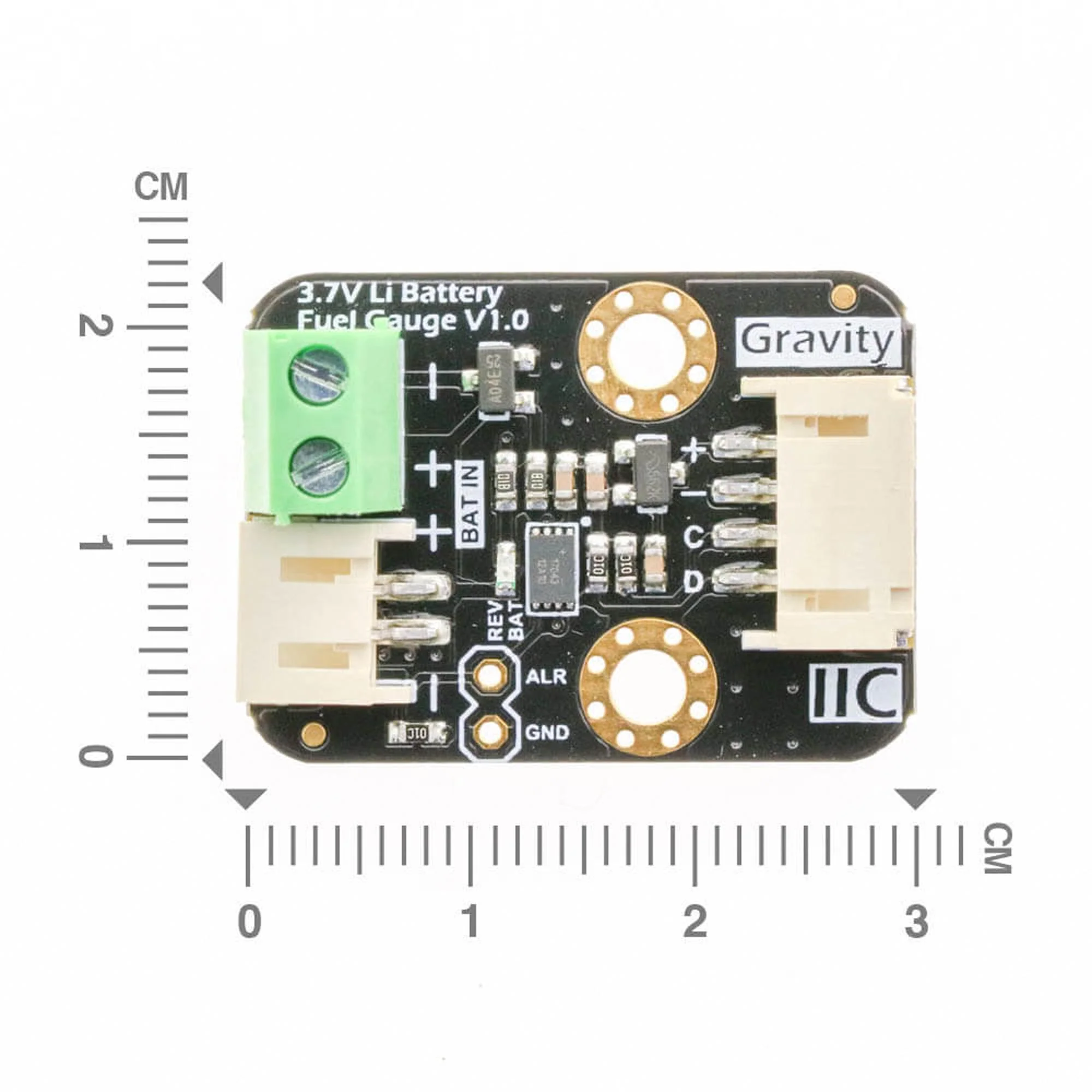

• Gravity I2C (logic level: 0-3.3V) interface, 22.0 x 30.0mm dimension

Contents

Gravity: I2C 3.7V Li Battery Fuel Gauge x1, xh2.54-2P Header x1, Gravity-4P I2C/ UART Sensor Wire x1.

Product details

Silicon Manufacturer	-
Core Architecture	-
Core Sub-Architecture	-
Silicon Core Number	-
Silicon Family Name	-
For Use With	DFRduino UNO R3 & Raspberry Pi 3B Development Boards
Kit Contents	Gravity I2C 3.7V Li Battery Fuel Gauge, XH2.54-2P Header, Gravity-4P I2C/ UART Sensor Wire
Product Range	-

Other details

Brand	DFROBOT
Part Number	DFR0563
Quantity	Each
Technical Data Sheet EN
Manufacturer Product Page EN
