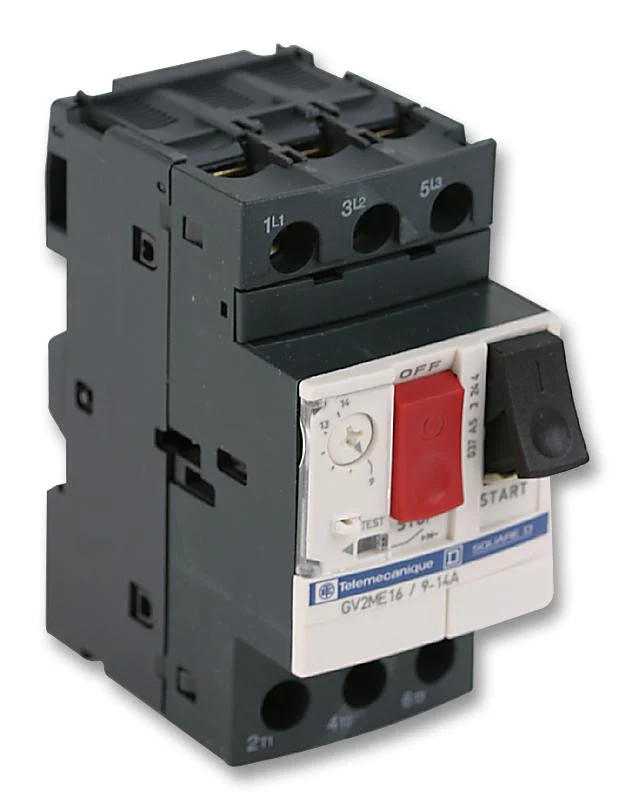

SCHNEIDER ELECTRIC / TELEMECANIQUE GV2ME16 Thermal Magnetic Circuit Breaker, GV2M Series, 690 VAC, 14 A, 3 Pole, DIN Rail
SCHNEIDER ELECTRIC / TELEMECANIQUE GV2ME16 Thermal Magnetic Circuit Breaker, GV2M Series, 690 VAC, 14 A, 3 Pole, DIN Rail
- Breaking capacity of 3KA at 690VAC (50/60Hz) conforming to IEC 60947-2
- Thermal protection adjustment range from 9A to 14A
- Magnetic tripping current is 170A
- Rated operational voltage of 690VAC (50/60Hz) conforming to IEC 60947-2
- Conventional free air thermal current of 14A conforming to IEC 60947-4-1
- Power dissipation per pole is 2.5W
- IP20 degree of protection conforming to IEC 60529
- IK04 degree of protection
- Operating ambient air temperature range from -20�C to 60�C
- Pushbutton control
Applications
Safety, Industrial
Product details
| Voltage Rating V AC | 690VAC |
| Current Rating | 14A |
| Product Range | GV2M Series |
| Circuit Breaker Mounting | DIN Rail |
| Voltage Rating V DC | - |
| No. of Poles | 3 Pole |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | GV2ME16 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Original: $285.19
-70%$285.19
$85.56SCHNEIDER ELECTRIC / TELEMECANIQUE GV2ME16 Thermal Magnetic Circuit Breaker, GV2M Series, 690 VAC, 14 A, 3 Pole, DIN Rail
- Breaking capacity of 3KA at 690VAC (50/60Hz) conforming to IEC 60947-2
- Thermal protection adjustment range from 9A to 14A
- Magnetic tripping current is 170A
- Rated operational voltage of 690VAC (50/60Hz) conforming to IEC 60947-2
- Conventional free air thermal current of 14A conforming to IEC 60947-4-1
- Power dissipation per pole is 2.5W
- IP20 degree of protection conforming to IEC 60529
- IK04 degree of protection
- Operating ambient air temperature range from -20�C to 60�C
- Pushbutton control
Applications
Safety, Industrial
Product details
| Voltage Rating V AC | 690VAC |
| Current Rating | 14A |
| Product Range | GV2M Series |
| Circuit Breaker Mounting | DIN Rail |
| Voltage Rating V DC | - |
| No. of Poles | 3 Pole |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | GV2ME16 |
| Quantity | Each |
| Technical Data Sheet EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
