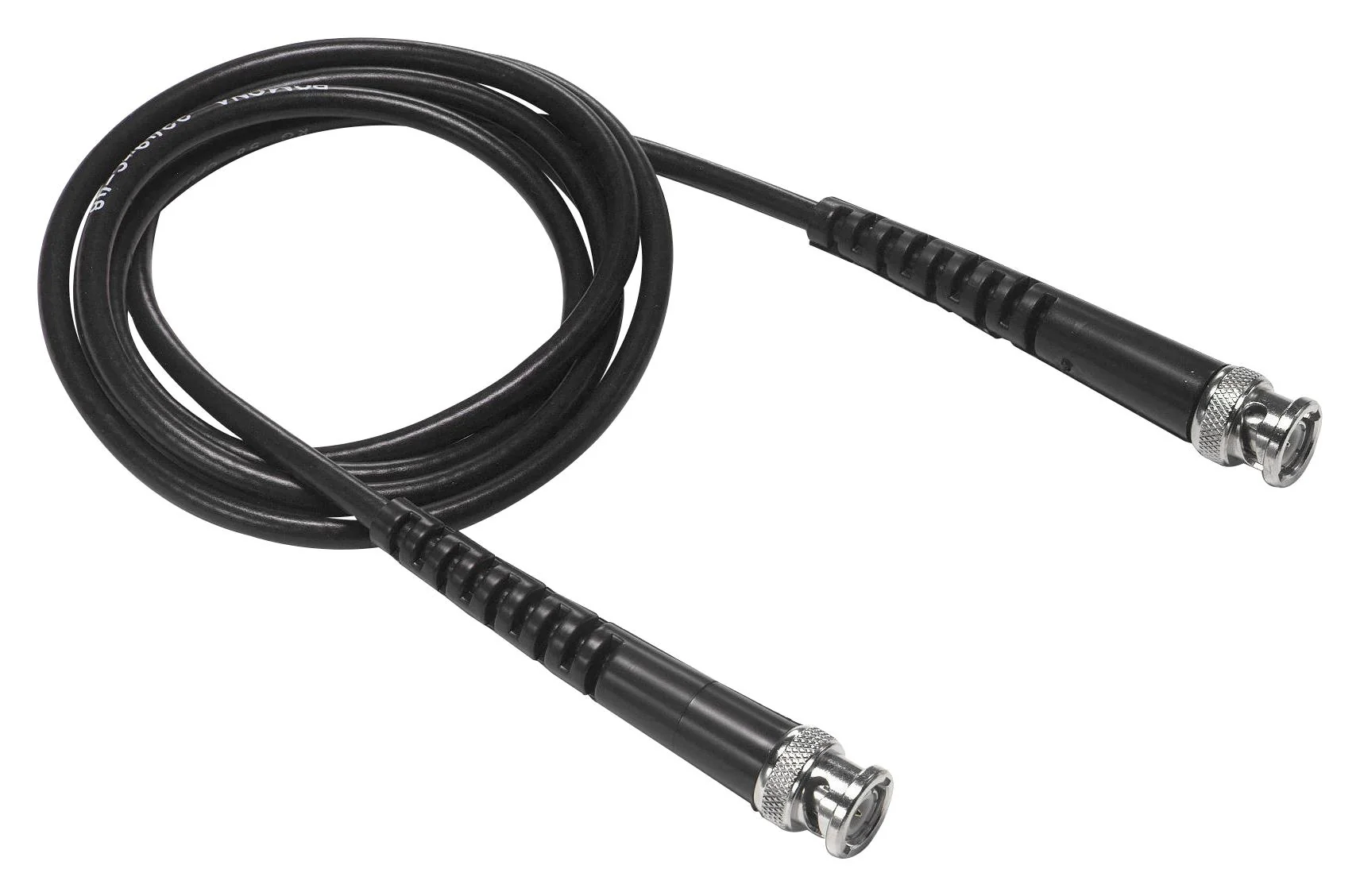

Pomona 2249-Y-120 RF / Coaxial Cable Assembly BNC Straight Plug RG223 50 ohm 10 ft 3.048 m

The 2249-Y-120 is a 120-inch RG223/U RF/Coaxial Cable Assembly with BNC male to BNC male connectors, PE insulation, tinned copper wire type, polyvinyl chloride non-contaminating (PVCNC) jacket and tinned copper braid shield. The moulded strain relief is directly bonded to the cable jacket for superior strength and durability. PTFE insulation and nickel tarnish-resistant outer shells used in the BNC connector provide long life and reliability. Gold-plated brass center contacts assure the most noise free connection possible. The connectors and cable is impedance matched.

• The molded strain relief is directly bonded to the cable jacket for superior strength and durability
• PTFE insulation and nickel tarnish resistant outer shells used in the BNC connector provide long life and reliability
• Gold-plated center contacts assure the most noise free connection possible
• The connectors and cable are impedance matched
• 50R Impedance

Applications

Test & Measurement, RF Communications, Communications & Networking, Electronics Design, Electronics Service, Computer Hardware, Instrumentation

Product details

Connector Type A	BNC Straight Plug
Connector Type B	BNC Straight Plug
Coaxial Cable Type	RG223
Impedance	50ohm
Cable Length - Imperial	10ft
Cable Length - Metric	3.048m
Jacket Colour	Black
Product Range	-
RoHS Phthalates Compliant	To Be Advised

Other details

Brand	POMONA
Part Number	2249-Y-120
Quantity	Each
Technical Data Sheet EN
