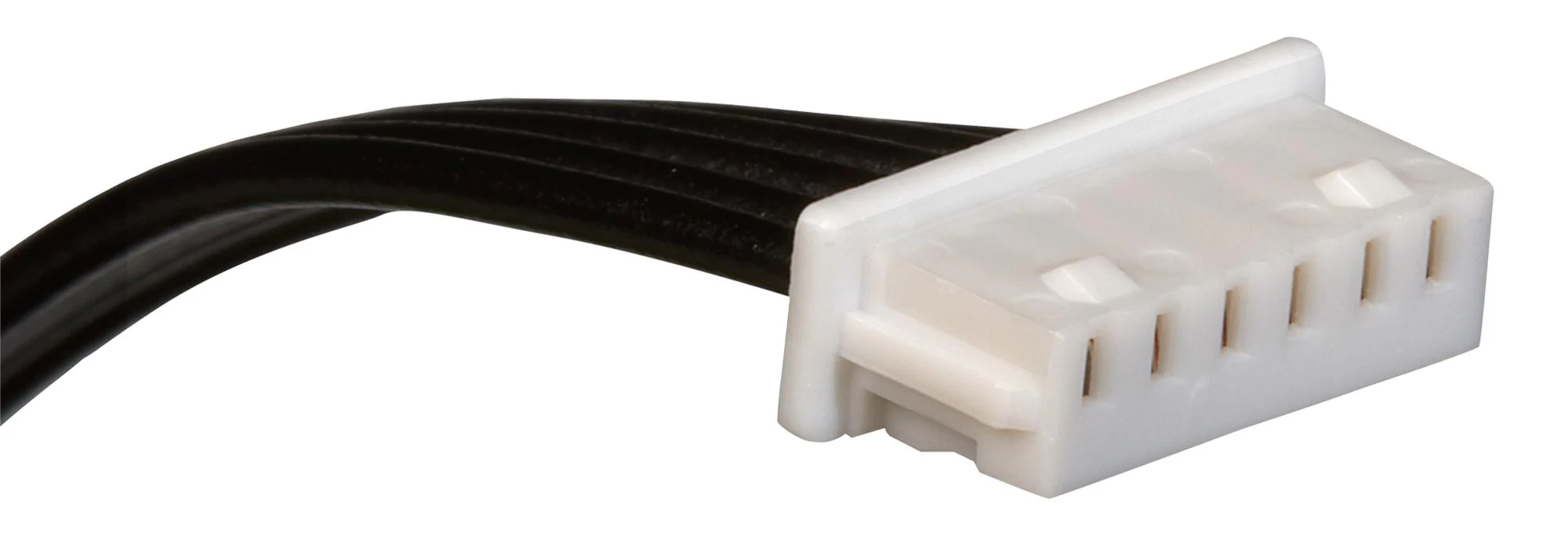

Molex 15134-0600 Cable Assembly 6Pos Picoblade 6 Position Receptacle 2 " 50 mm
The 15134-0600 from Molex is a PicoBlade, single row, natural colour female to female 50mm standard cable assembly with 6 circuits. This PicoBlade to PicoBlade off-the-shelf (OTS) cable assembly supports user's design for both prototyping and global production. Point to point single row configurations support both development and production programs. Pin to pin map configurations reduces the need to design cable layout. It also provides ease of design, prototyping and production.
- Built using UL1061 discrete wires
- Less engineering time and resources required to use
- Built-in ISO and TS-16949 certified facilities and meets current market standards
- Maximum voltage rating of 125V and maximum current rating of 1A
- 20mohm contact resistance, 250VAC dielectric withstanding voltage, 10Mohm insulation resistance
- Operating temperature range from -40 to +85°C
- Mates with PicoBlade 53261, 53047, 53398, 53048 headers
- Polyester resin, phosphor bronze metal material with tin mating and termination
Industrial, Consumer Electronics, Medical
Product details
| Connector Type A | PicoBlade 6 Position Receptacle |
| Connector Type B | PicoBlade 6 Position Receptacle |
| Cable Length - Imperial | 2" |
| Cable Length - Metric | 50mm |
| Jacket Colour | Black |
| Product Range | PicoBlade OTS 15134 Series |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | MOLEX |
| Part Number | 15134-0600 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
