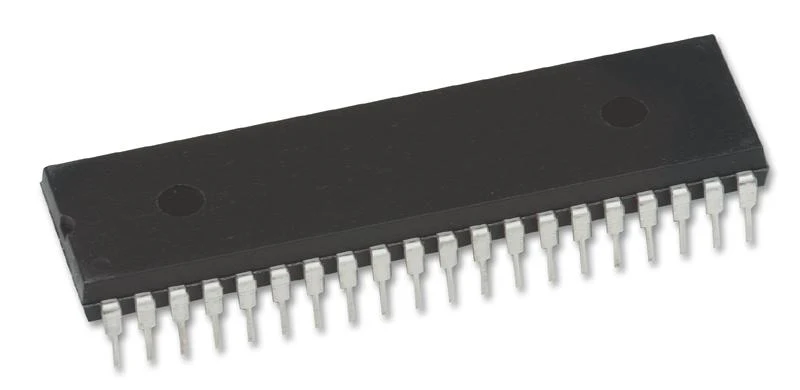

MICROCHIP PIC18F452-I/P 8 Bit MCU, Flash, PIC18 Family PIC18F45xx Series Microcontrollers, PIC18, 40 MHz, 32 KB, 40 Pins

The PIC18F452-I/P is a high-performance Enhanced Flash Microcontroller with 8 channels of 10-bit Analogue-to-digital (A/D) converter. The PIC18F452 features a C compiler friendly development environment, 256 bytes of EEPROM, self-programming, an ICD, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPIâ�¢) or the 2-wire Inter-Integrated Circuit (I²Câ�¢) bus and Addressable Universal Asynchronous Receiver Transmitter (AUSART). All of these features make it ideal for manufacturing equipment, data acquisition, power conditioning and environmental monitoring.

• High performance RISC CPU - Up to 10MIPs operation & 16-bit wide instructions, 8-bit wide data path
• Peripheral - 3 external interrupt pins, master synchronous serial port (MSSP) module
• Analogue - Programmable low voltage detection (PLVD) and programmable brown-out reset (BOR)
• Flash/data EEPROM retention of >40 years
• Self-reprogrammable under software control
• Watchdog timer (WDT) with its own on-chip RC oscillator for reliable operation
• Programmable code protection
• Power saving sleep mode
• Single supply 5V In-Circuit Serial Programmingâ�¢ (ICSPâ�¢) via two pins
• In-Circuit Debug (ICD) via two pins
• CMOS technology - Low power, high speed flash/EEPROM technology

Applications

Sensing & Instrumentation, Test & Measurement, Power Management, Communications & Networking, Consumer Electronics, Audio, Imaging, Video & Vision, Industrial

ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
