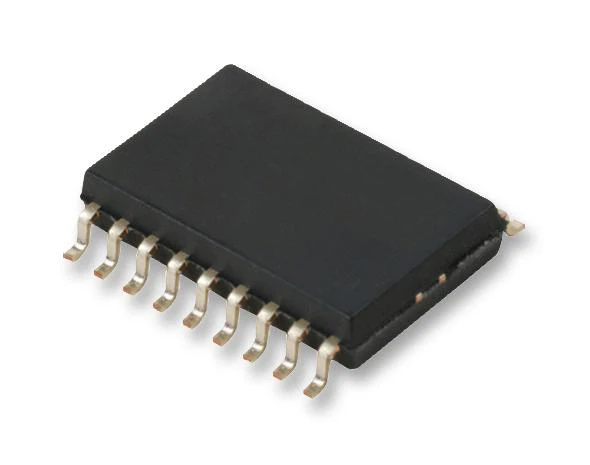

Microchip PIC16LF88-I/SO PIC16LF88-I/SO 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 7 KB 18 Pins

The PIC16LF88-I/SO is a mid-range PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 7kB of addressable program memory size, 368bytes of data memory size, 16 general-purpose I/O pins, two comparators and 7-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• 256bytes of EEPROM data memory
• Power on reset (POR)
• Watch dog timer (WDT)
• Two 8-bit digital timers
• One 16-bit digital timer
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16LF88-I/SO
Quantity	Each
Technical Data Sheet EN
Product Change Notice EN
CAD CadSoft_EAGLE EN
