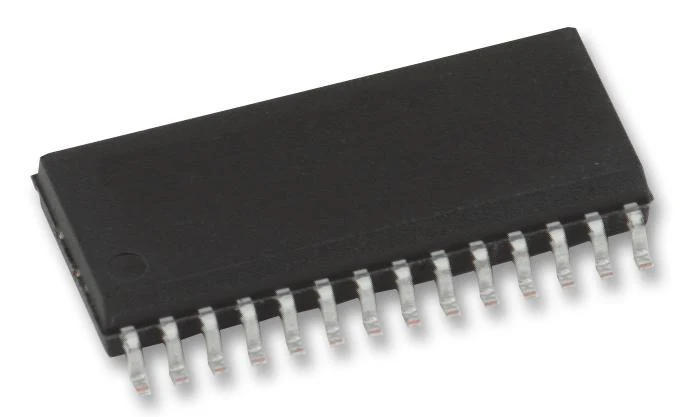

Microchip PIC16F872-I/SO PIC16F872-I/SO 8 Bit MCU Flash PIC16 Family PIC16F8XX Series Microcontrollers 20 MHz 3.5 KB 28 Pins

The PIC16F872-I/SO is a baseline PIC16 family 8-bit powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS flash based Microcontroller packs powerful PIC®(RISC) architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 3.5kB of addressable program memory size, 128bytes of data memory size and 5-channel 10-bit analog-to-digital (A/D) converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.

• 35 (14-bit wide) easy instructions to learn
• 8 level hardware stack
• 1 (9-bit) file select register
• Hardware interrupt handling
• In-Circuit Serial Programmingâ�¢ (ICSPâ�¢)
• Power on reset (POR)
• Power-up timer (PWRT)
• Oscillator start-up timer (OST)
• Programmable code protection
• Power saving SLEEP mode
• In-circuit debugging via two pins
• 64bytes of EEPROM data memory

Applications

Industrial, Automotive, Consumer Electronics, Motor Drive & Control, Lighting, Medical, Security

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MICROCHIP
Part Number	PIC16F872-I/SO
Quantity	Each
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
