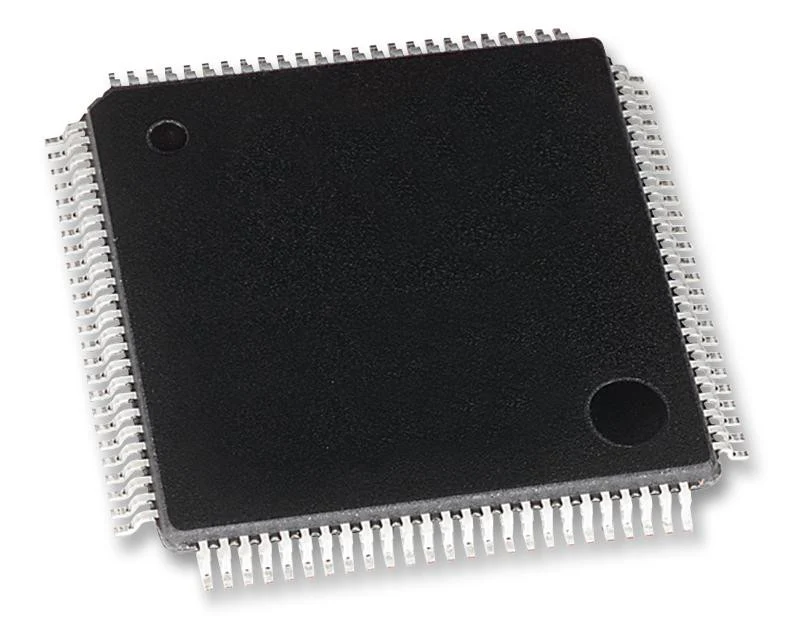

MICROCHIP DSPIC33EP512MU810-I/PF Digital Signal Controller, dsPIC33E Series, 60 MHz, 536 KB, 83 I/O's, DCI, ECAN, I2C, SPI, UART
MICROCHIP DSPIC33EP512MU810-I/PF Digital Signal Controller, dsPIC33E Series, 60 MHz, 536 KB, 83 I/O's, DCI, ECAN, I2C, SPI, UART
The DSPIC33EP512MU810-I/PF is a 16-bit microcontroller and Digital Signal Controller with high-speed PWM, USB and advanced analogue. The digital signal controller (DSCs) features a 70 MIPS dsPIC� DSC core with integrated DSP and enhanced on-chip peripherals. These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. This device is also ideal for high-performance general purpose applications.
- Modified Harvard architecture
- C compiler optimized instruction set
- 16-bit wide data path
- 16 x 16 Integer multiply operations
- 11 Additional instructions
- Two 40-bit accumulators with rounding and saturation options
- Flexible and powerful addressing modes
- Single-cycle multiply and accumulate
- Single-cycle shifts for up to 40-bit data
- 16 x 16 Fractional multiply/divide operations
Applications
Motor Drive & Control, Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Core Frequency | 60MHz |
| DSC Case Style | TQFP |
| Embedded Interface Type | DCI, ECAN, I2C, SPI, UART |
| Flash Memory Size | 536KB |
| No. of I/O's | 83I/O's |
| Operating Temperature Min | -40�C |
| Operating Temperature Max | 85�C |
| Core Supply Voltage | 1.8V |
| No. of Pins | 100Pins |
| Product Range | dsPIC33E Series |
| Automotive Qualification Standard | AEC-Q100 |
| Supply Voltage Min | 3V |
| Packaging | Each |
| Supply Voltage Max | 3.6V |
| MSL | MSL 3 - 168 hours |
Other details
| Brand | MICROCHIP |
| Part Number | DSPIC33EP512MU810-I/PF |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
