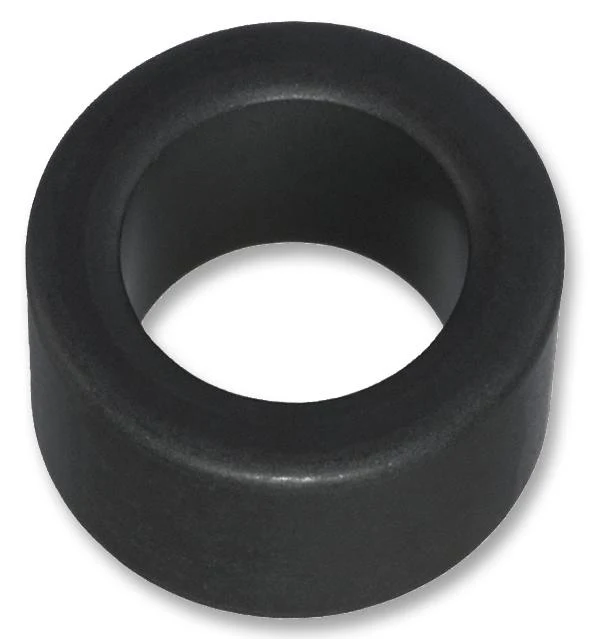

Laird 28B0686-200 Ferrite Core 242 ohm 28.58 mm Length 9.53 ID 17.42 OD

The 28B0686-200 is a Broadband Cylindrical Core provides an effective means of reducing common and differential mode EMI. This core is most frequently used to suppress common mode EMI on the internal and external cable assemblies of electronic equipment. By decreasing the levels of EMI radiated by internal cables, ferrite cores can reduce the cost and amount of overall shielding required confining EMI within a product's enclosure. It may also be successfully used on power cables that carry digital or analogue signalling. It is suitable to achieve maximum EMI filtering performance in a given application. The in-circuit impedance may be substantially increased by passing 2 turns of the wire conductor through the ferrite core. A typical common mode application might have two conductors passed through a ferrite core. With equal and opposite currents flowing through the core, zero net bias is established through the component and maximum impedance is thus realized from the ferrite. Applications

Consumer Electronics, Security, Automotive, Medical, Industrial, Computers & Computer Peripherals, Communications & Networking, Logistics

Product details

Outer Diameter	17.42mm
Product Length	28.58mm
Inner Diameter	9.53mm
Frequency Min	-
Frequency Max	-
Impedance	242ohm
Product Range	-

Other details

Brand	LAIRD
Part Number	28B0686-200
Quantity	Each
Technical Data Sheet EN
