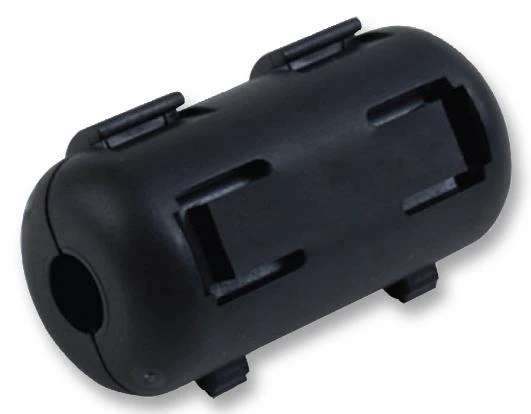

Laird 28A2432-0A2 28A2432-0A2 Ferrite Core 160 ohm 8.2 mm 100 MHz

The 28A2432-0A2 is a broadband Split/Snap-on Core provides excellent common and differential mode EMI suppression on round cable assemblies. The lightweight inexpensive plastic snap-on cases provide secure closure of the split cores onto the cable. The in-circuit impedance may be substantially increased by passing 2 turns of the wire conductor through the ferrite core assembly. It is suitable for fixing EMI issues without board level design changes, cable and wiring harnesses, energy and utilities.

• Easy to install

Applications

Security, Consumer Electronics, Automotive, Computers & Computer Peripherals, Medical, Industrial, Communications & Networking, Logistics

Product details

Outer Diameter	19.2mm
Length	19.9mm
Inner Diameter	8.2mm
Frequency Min	-
Frequency Max	-
Impedance @ 100MHz	160ohm
Product Range	-

Other details

Brand	LAIRD
Part Number	28A2432-0A2
Quantity	Each
Technical Data Sheet EN
