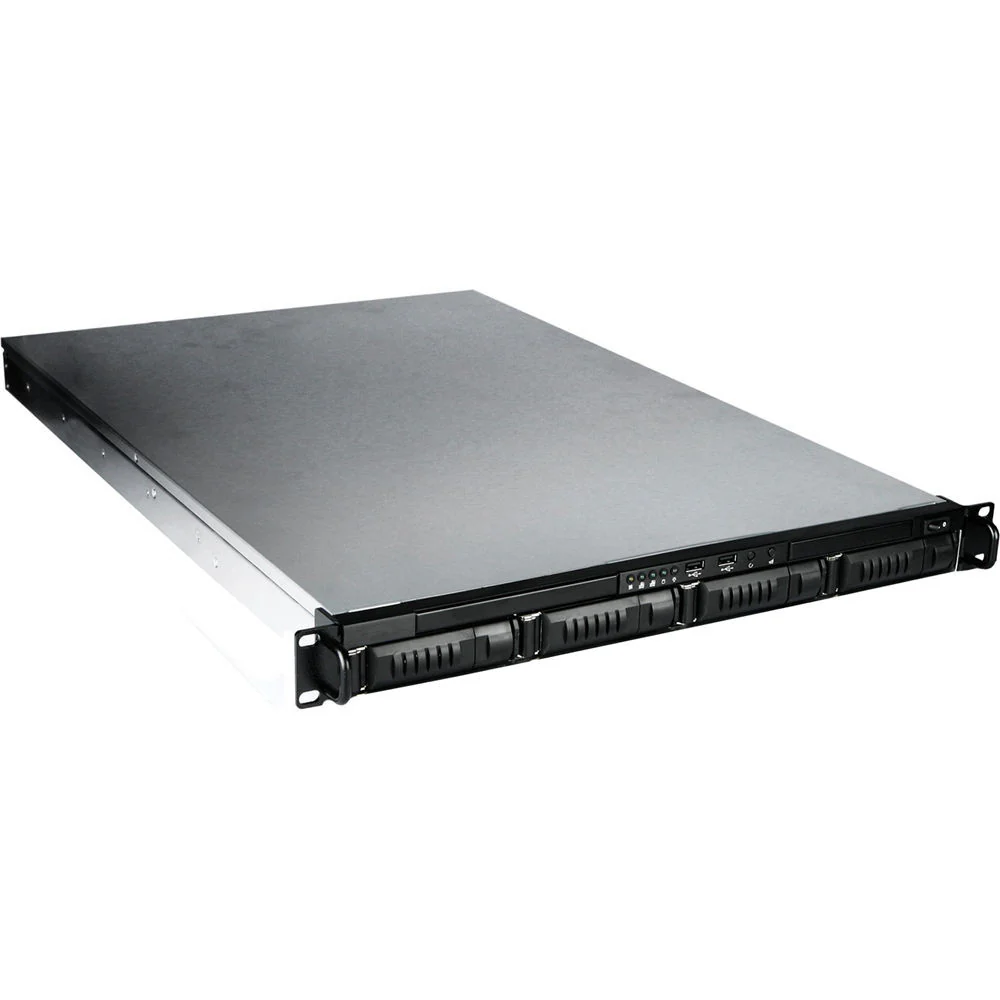

iStarUSA E1M4 1U 4-Bay Storage Server Rackmount Chassis
- Advance Thermal Cooling Design
- 4x Cooling Fans with Status Monitor
- Supports EATX Motherboard
- Mini-SAS Backplane
- Front Access USB Connector
- Power + Fan Failure + HDD LED Indicator
- Power / Alarm Reset Switch
- RoHS Compliance

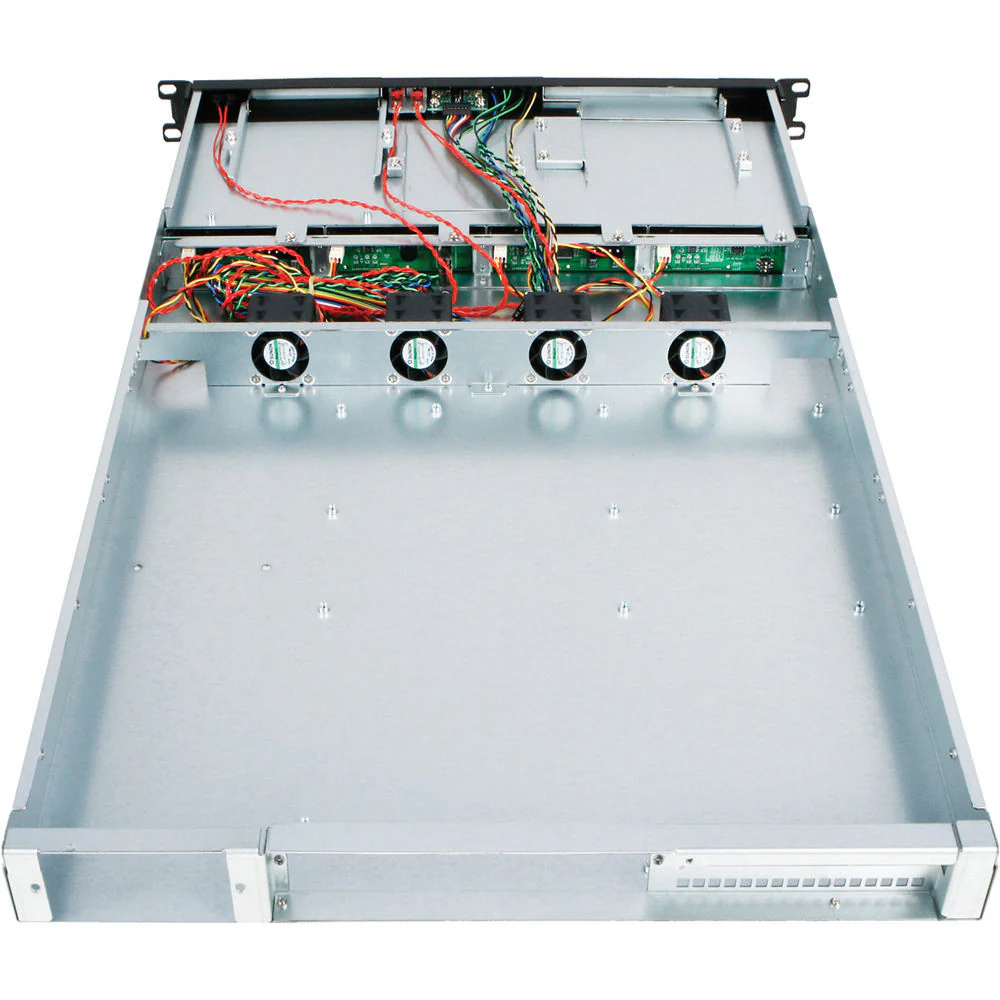

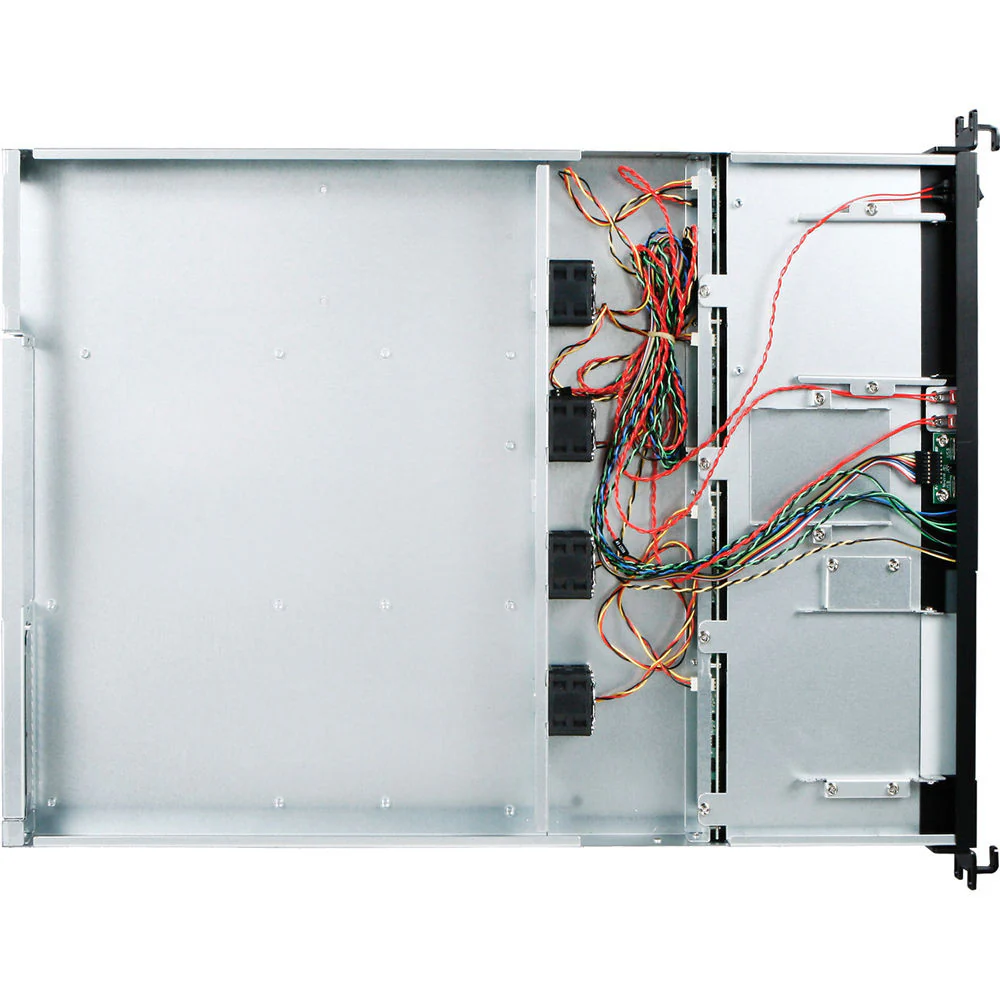

The E1M4 1U 4-Bay Storage Server Rackmount Chassis from iStarUSA is a high performance 1U chassis compatible with full size E-ATX motherboard, as well as ATX and micro-ATX boards. With four 40 mm fans, the E1M4 features a fan failure light located at the front of the chassis, which gives you indication when any of the four fans fail to operate so the system can avoid overheating.

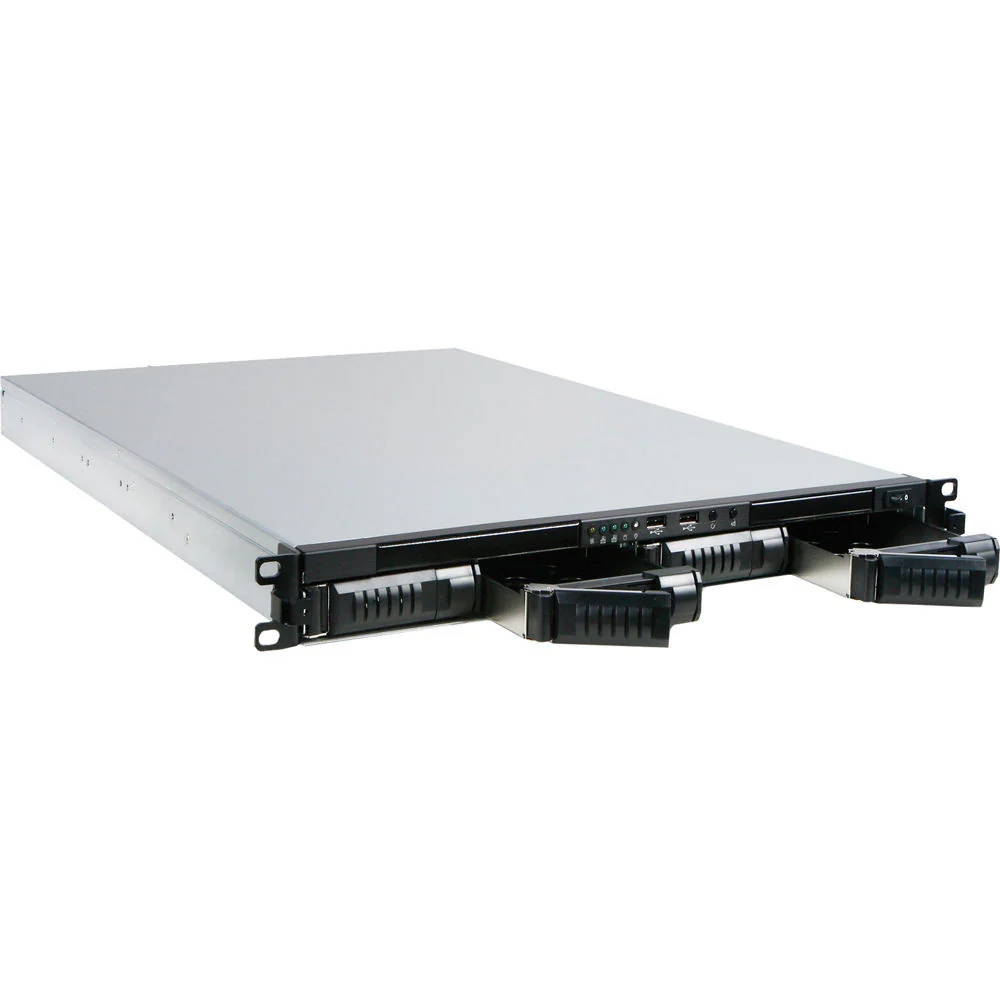

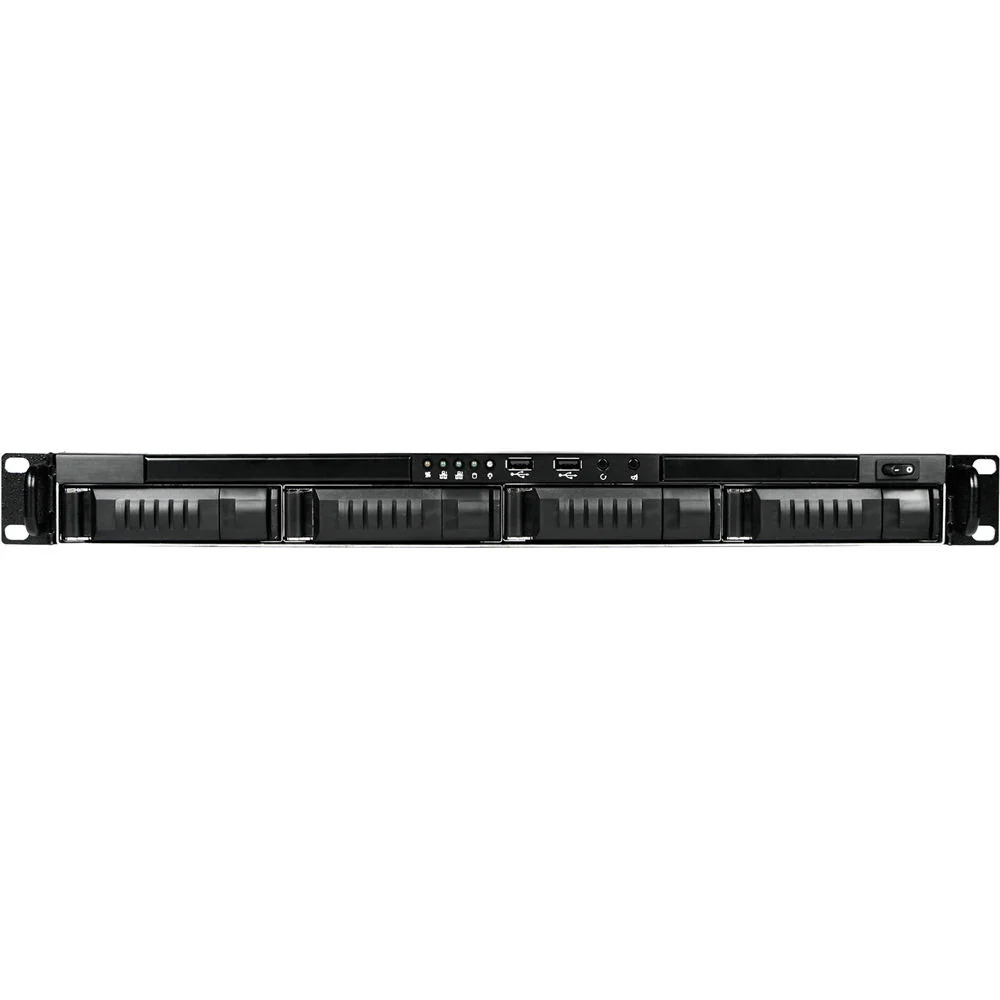

The front panel houses power, reset and mute switches. The E1M4 has mini-SAS backplane to support the latest SAS and SATA hard drives. The front of the E1M4 features four 3.5" hot-swap drive bays, one slim optical 5.25" drive bay and one slim FDD 3.5" drive bay.
- Fiber optical drive tray status indicator
- Advance thermal cooling design optimizes airflow
- 4x 40 mm cooling fans with status monitor
- Supports EATX motherboard
- Mini-SAS (SFF8087) backplane
- Front access 2x USB 2.0 connector
- Power + fan failure + HDD LED indicator
- Power on/off, reset, mute switches
- RoHS compliance

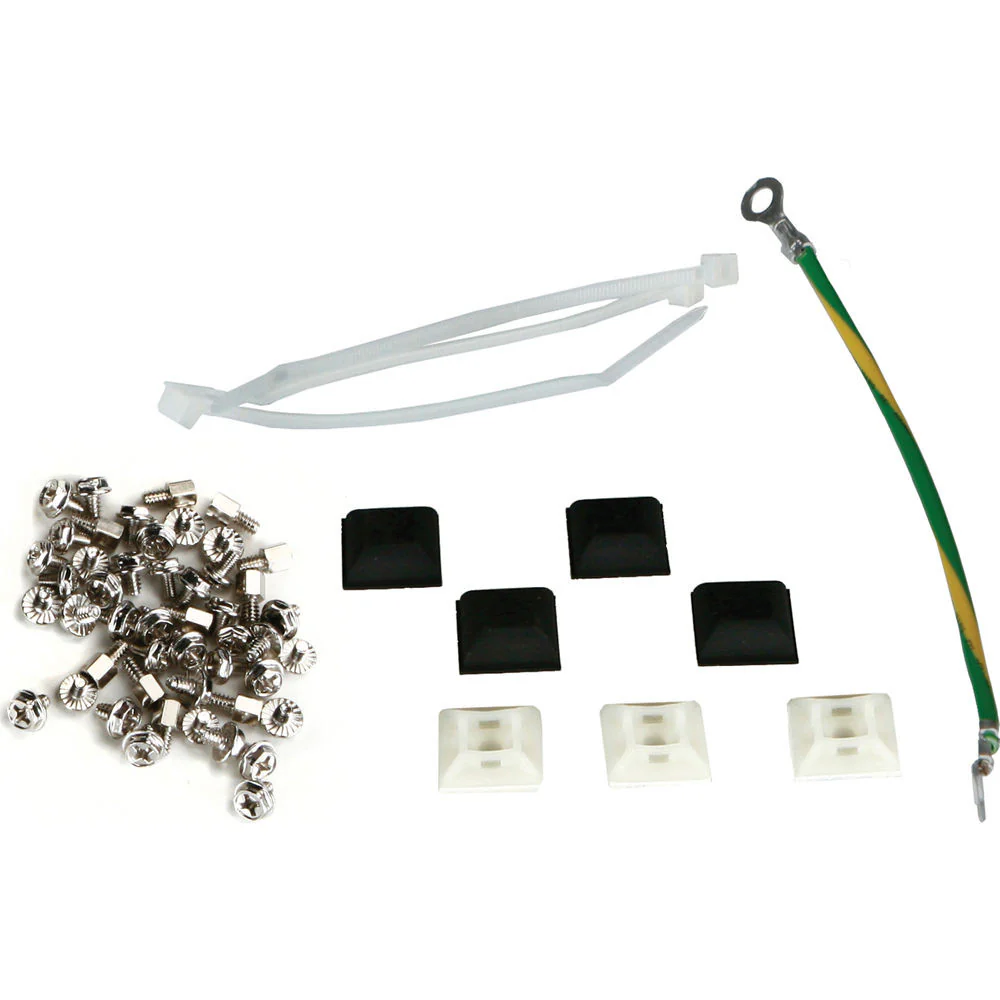

- Ground Cable
- Cable Tie
- Stand
- Screws Kit
- 1 Year Warranty*
Note: * (Warranty available only in USA & Canada)
| Form Factor | 1U |
| HDD Interface | SAS / SATA II |
| Standard Drive Bays | Hot-Swap Drive: 4x 3.5" 5.25" Drive: 1x slim optical 3.5" Drive: 1x slim FDD |
| Hotswap HDD Type | 3.5" SAS I / II & SATA |
| Indicators | Power + fan failure + HDD LED |
| Switches | Power on / off, reset, mute |
| Expansion Slots | 1x slot |
| Material of Front Bezel | Texture-coated |
| Material of Handle | Aluminum |
| Material of Main Chassis | Zinc-plated with bright chromate heavy-duty SGCC cold-rolled steel |
| Color of Main Chassis | Silver |
| Backplane | Mini-SAS (SFF8087) |
| Front Connector | 2x USB 2.0 |
| Motherboard Size | 12 x 13 (E-ATX, ATX, micro-ATX) |
| Cooling Fan (optional) | 4x 40 mm |
| RoHS Compliance Version | Yes |
| Dimensions (HxWxD) | 1.75 x 19.00 x 27.00" (44.5 x 482.6 x 685.8 mm) |
| Weight | Not specified by the manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 23.0 lb |
| Box Dimensions (LxWxH) | 30.0 x 22.0 x 6.0" |
