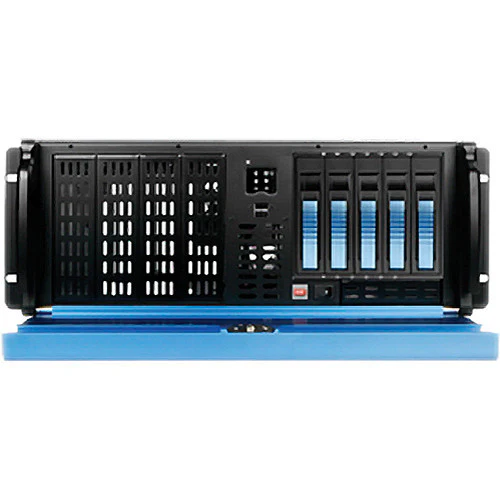

iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount Chassis & BPU-350SATA-BLUE Hot-Swap Cage
iStarUSA D2-407BL-B5BL Kit with D2-400-7-BLUE Rackmount Chassis & BPU-350SATA-BLUE Hot-Swap Cage
The iStarUSA D2-407BL-B5BL Kit includes�a D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis and�a BPU-350SATA-BLUE 3x5.25 to 5x3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage.
The D2-400-7-BLUE Rackmount Chassis is a 4U industrial rackmount chassis, which can be combined with iStarUSA HDD cages. The BPU or T Series enable hot-swappable storage capability. It also supports up to 7 add-on cards for system expansions and upgrades. The D2-400-7-BLUE Chassis provides your server or cluster maximum reliability and performance.
The BPU-350SATA-BLUE Hot-Swap Cage offers high level RAID and high availability storage in a compact design and adds extra storage and hot-swap capability to satisfy any application needs. It is constructed of aluminum material that provides heat dissipation required for high performance SAS/SATA drives, and is designed with front to back vent airflow. This Hot-Swap Cage provides a solution for internal server RAID and JBOD applications. The aluminum body and a 3.15" (80mm) cooling fan (sold separately) subsystem complete a high end data storage server or workstation.
- D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue)
The blue D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis from iStarUSA is a 4U industrial rackmount chassis that can be combined with the iStarUSA HDD cages. The BPU or T series enable hot-swappable storage capability. It also supports up to 7 add-on cards for system expansions and upgrades. This rackmount chassis provides your server or cluster maximum reliability and performance.
- Two front access USB 2.0
- Power and HDD LED
- Standard I/O shield
- Power and reset switches
- One 80mm cooling fan
- RoHS compliant
- Black main chassis
- BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue)
The blue BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage from iStarUSA offers high-level RAID and high-availability storage in a compact design. It provides additional storage and hot-swap capability to satisfy any application needs. The storage cage is constructed of aluminum material that provides superb heat dissipation required for high-performance SAS/SATA drives. In addition, the 80mm cooling fan allows for excellent front to back vent airflow. The hot-swap storage cage is an ideal solution for internal server RAID and JBOD applications and is designed for use with high-end data storage servers or workstations.
- Supports 2.5"/3.5" SAS I/II and SATA I/II/III HDDs
- High-performance transfer rate up to 6.0 Gb/s
- 4TB hard drive compatibility
- Stylish aluminum color handle and heat-sink body
- Supports hot-swap and RAID configuration 1
Please Note:
Needs an additional RAID controller.
close
- Aluminum design with conductive dissipation grooves
- Power, fan and high temperature LED indicators
- Equipped with fan speed control switch
UPC: 846813000598
- Installation Hardware
- Limited 1-Year Warranty
- 5 x SATA Cables
- Required Screws
- 1-Year Limited Warranty
- D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue)
Standard Drive Bays One 3.50" drive
One 3.50" internal drive
Seven 5.25" drivesIndicators Power, HDD Switches Power, Reset Expansion Slots 7 Security Front bezel Material of Front Bezel Aluminum alloy Material of Handle Aluminum Material of Main Chassis Steel 1.2 mm Front Connector Two USB 2.0 Compatible Power Supplies IS-1000PD8 1000W PS2 ATX High Efficiency Switching Power Supply
IS-400R8P 400W PS2 Mini Redundant Power Supply
IS-500R8P 500W PS2 Mini Redundant Power Supply
IS-550R8P 550W PS2 Mini Redundant Power Supply
IS-680PD8 680W PS2 ATX High Efficiency Switching Power Supply
IS-700R3NP 700W PS2 Mini Redundant Power Supply
IS-780PD8 780W PS2 ATX High Efficiency Switching Power Supply
IS-800R3NP 800W PS2 Mini Redundant Power Supply
IS-880PD8 880W PS2 ATX High Efficiency Switching Power Supply
TC-600PD2 600W PS2 ATX Switching Power Supply
TC-620PD3 620W PS2 ATX Switching Power Supply
TC-650PD2 650W PS2 ATX Switching Power Supply
TC-700PD2 700W PS2 ATX Switching Power Supply
TC-750PD1 750W PS2 ATX Switching Power Supply
TC-750PD2 750W PS2 ATX Switching Power Supply
TC-850PD1 850W PS2 ATX Switching Power Supply
IS-1000R3NP 1000W PS2 Mini Redundant Power Supply
IS-950R3NPD8950W 80 Plus PS2 Mini Redundant Power Supply
TC-500PD3 500W PS3 Size ATX12V Switching Power SupplyCompatible Motherboards ASUS:
ATX: P8B-C(4L), P8B-E(4L), P8B-X, P6T WS Professional, P6X58-E WS, P8B WS, P8C WS, P8P67 WS REVOLUTION, P8Z77 WS, Z9PA-U8
Micro-ATX: P8B-MX
ASRock:
ATX: C216 WS, E3C204, E3C204-4L, E3C204-V+, E3C204-V4L, H77WS-DL, Z77 WS
Mini ITX: AD2550R/U3S3
TYAN:
ATX: S5512
MicroATX: S5510, S5515
GIGABYTE:
microATX: GA-6UASV3, GA-6UASL3
ATX: GA-6PXSV4, GA-6PXSV1, GA-6PXSV2, GA-6PXSV3Motherboard Size 12.00 x 9.60" (30.48 x 24.38 cm) (ATX, microATX) Cooling Fan One 3.15" (80.00 mm) Dimensions (W x H x D) 19.00 x 7.00 x 20.75" (482.60 x 177.80 x 527.00 mm) Weight 35.00 lb (15.88 kg) Packaging Info Box Dimensions (LxWxH) 28.0 x 23.0 x 13.0" - BPU-350SATA 3 x 5.25" to 5 x 3.5" Bay SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue)
Standard Drive Bays 5.25" Drives: 3
Hot-Swap 3.5: 5HDD Type Hot-Swappable 3.5" SAS I/II and SATA I/II/III Indicators Power, HDD, fan and high temperature Material Material of Front Bezel: Aluminum
Material of Handle: Aluminum
Material of Main Chassis: Aluminum design with conductive dissipation groovesCooling Fan 1 x 80 mm Compliance RoHS Dimensions (W x H x D) 5.75 x 4.96 x 8.11" (14.6 x 12.6 x 20.6 cm) Packaging Info Box Dimensions (LxWxH) 16.0 x 11.0 x 10.5"
