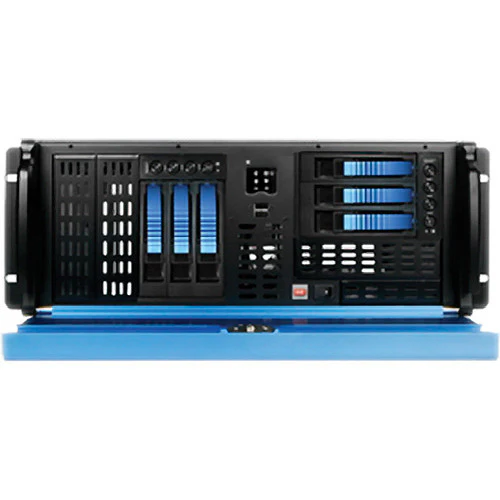

iStarUSA D Storm Series D2-407BL-B6BL 4U Compact Stylish 6 x 3.5" Hotswap Rackmountable Chassis Kit

The D Storm Series D2-407BL-B6BL Chassis Kit from iStarUSA consists of the D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis and the BPU-230SATA-BLUE 2 x 5.25� to 3 x 3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage.

The D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis supports up to 7 add-on cards for system expansions and upgrades. It provides your server or cluster with maximum reliability and performance.

The BPU-340-SATA 2 x 5.25� to 3 x 3.5" Hot-Swap Cage enables you to use additional hard drives with hot-swap capability. This cage supports RAID 1/0/1+0/5 configurations for high-performance or redundancy data applications. Made of aluminum alloy, it is very lightweight. The high-density multi-disk storage backplane allows multiple 3 x 3.5" SAS/SATA hard drives to be mounted into 2 standard 5.25" drive bays. This cage also provides good heat dissipation, and is designed with excellent front to back vent airflow.

• D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis (Blue)

  The blue D Storm Series D2-400-7-BLUE 4U Compact Stylish Rackmount Chassis from iStarUSA is a 4U industrial rackmount chassis that can be combined with the iStarUSA HDD cages. The BPU or T series enable hot-swappable storage capability. It also supports up to 7 add-on cards for system expansions and upgrades. This rackmount chassis provides your server or cluster maximum reliability and performance.

  Two front access USB 2.0

  Power and HDD LED

  Standard I/O shield

  Power and reset switches

  One 80mm cooling fan

  RoHS compliant

  Black main chassis

• 5.25 to 3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage (Blue)

  The Blue 5.25 to 3.5" SAS/SATA 6.0 Gb/s Hot-Swap Cage from iStarUSA creates additional space for hard drives with hot-swap capability. This series supports RAID 1/0/1+0/5 configuration for high performance or redundancy data application. A high density multi-disk storage backplane allows multiple 3x3.5"(88.9mm) SAS/SATA hard drives to be mounted into 2 standards 5.25"(133.35mm). All-aluminum construction provides superior heat dissipation required for high-performance SAS/SATA drives, while a 2.75"(70mm) fan provides excellent front to back vent airflow.

  Stylish aluminum color handle and heat-sink body

  Plug-and-play hot-swappable

  All-aluminum design with conductive dissipation grooves

  LED indicators for P/S, HDD access, fan sensor and buzzer

  Power control switch

  3-stage temperature alarm settings and reset switch for buzzer alarm

  Super air ventilation and heat sink with a 2.75"(70mm)

  SATA 15-pin and 4-pin power connectors

  Exceeds rotational vibration requirements specified for today's high-rpm drives

  Patent balance handle - No skew in/out problem and avoid abrasion during connection

  Precise connection between the hard drive and the cage

  UPC: 846813000451

• Installation Hardware

• Limited 1-Year Warranty

• 3x SATA Cables

• Screw

• 1-Year Warranty
