iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact Rackmount mini-ITX Chassis & 270W Flex ATX 80 Plus High Efficiency Power Supply
iStarUSA D-118V2-ITX-30FX8 Kit with 1U Compact Rackmount mini-ITX Chassis & 270W Flex ATX 80 Plus High Efficiency Power Supply
- D-118V2-ITX 1U mini-ITX Chassis
- TC-1U30FX8 1U 300W ATX Power Supply
The iStar USA D-118V2-ITX-30FX8 Kit includes the D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis and the TC-1U30FX8 1U 300W Flex ATX 80 Plus High Efficiency Power Supply.
The black D-118V2-ITX Compact Rackmount mini-ITX Chassis is a reliable and stable 1U high and 11" deep industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drives with a mini-ITX motherboard. The D-118-ITX Chassis also supports a 1U flex power supply to meet regular system applications and 1.5" (40mm) cooling fans (sold separately) that can be installed in the front for adequate air ventilation.
The TC-1U30FX8 1U 300W Flex ATX 80 Plus High Efficiency Power Supply is designed to aptly fit into your 1U rackmount chassis. This compact and versatile power supply unit features low noise, triple circuit protections, and active PFC.
Note: The standard I / O shield will not fit any 1U chassis.
- D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Black)

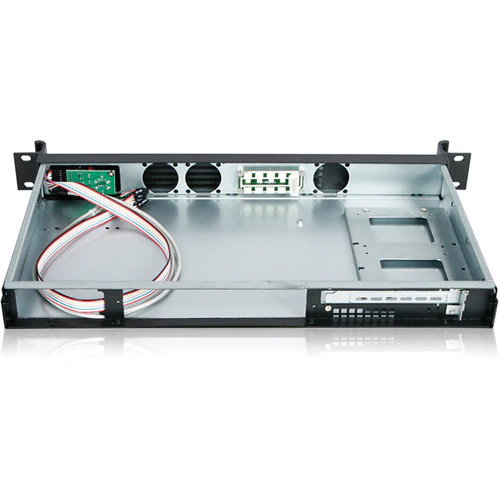

The black D-118V2-ITX Compact Rackmount mini-ITX Chassis from iStarUSA is a reliable and stable 1U high and 11" deep industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drives with a mini-ITX motherboard. The D-118-ITX Chassis supports a 1U flex power supply to meet regular system applications and 1.5" (40mm) cooling fans (sold separately) that can be installed in the front for proper air ventilation.
Note: The standard I / O shield will not fit any 1U chassis.
- Industrial chassis with 11.0" (279.4mm) depth
- Supports 2 front access USB 2.0 ports
- Power, HDD, and LAN LEDs
- Power and reset switch
- Supports mini-ITX motherboard
- Supports 1U flex power supply
- RoHS compliant
UPC: 846813019583 - TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply
The iStarUSA TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply is compact, versatile and�designed to fit perfectly into your 1U rackmount chassis. It includes features such as low noise, triple circuit protections, and active PFC.
- Output Over Voltage, Short Circuit, and Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
- Low noise and ripple
- Thermal Fan Speed Control function
- Compatible with European Union Directive 2002/95/EC (RoHS)
- 80 Plus Bronze High Efficiency
- Complied with Flex ATX and ATX12V Standard
- Active Power Factor Correction (PFC) Meet EN61000-3-2
UPC: 846813014861

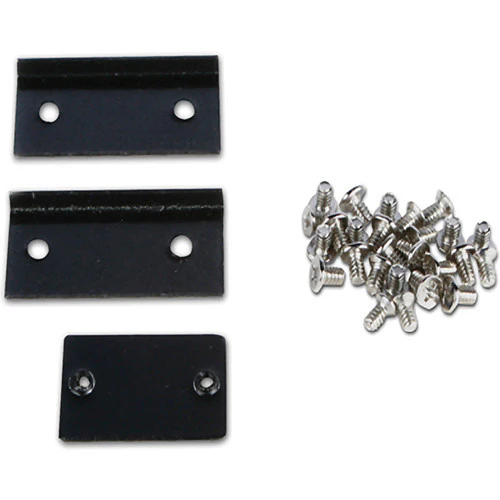

- Installation Hardware
- Limited 1-Year Warranty
- D-118V2-ITX 1U Compact Rackmount mini-ITX Chassis (Black)
Compatibility Power Supplies:
TC-1U18FX1 1U 180W Flex ATX Power Supply
TC-1U22FX8 1U 220W Flex ATX 80 Plus High Efficiency Power Supply
TC-1U30FX8 1U 300W Flex ATX 80 Plus High Efficiency Power Supply
TC-1U15FX1 1U 150W Flex ATX Power Supply
TC-1U30FX2 1U 300W Flex ATX Power Supply
TC-1U20FX2 1U 200W Flex ATX Power SupplyStandard Drive Bays 2.5" (63.5 mm) Drive (internal): 2 The 3.5" (88.9 mm) HDD cannot be placed when an expansion slot is used.
Indicators Power, HDD, LAN Switches Power, reset PSU Supported PSU Types: 1U Flex Expansion Slots 1 Front Connector 2 x USB 2.0 (front) Material Front Bezel: Aluminum
Main Chassis: SteelMotherboard Size mini-ITX: 6.7 x 6.7" (170.1 x 170.1 mm) Fan 3 x 1.5" (40.0 mm) Fan is sold separately.
Dimensions (W x H x D) 19.00 x 1.75 x 11.00" (482.60 x 44.45 x 279.40 mm) Weight 8.0 lb (3.6 kg) Packaging Info Box Dimensions (LxWxH) 23.0 x 16.0 x 5.0" - TC-1U30FX8 1U 300 W Flex ATX 80 Plus High Efficiency Power Supply
RoHS Compliance Version Yes Wattage 300 W Efficiency 80% Connector Type Main Connector: 20+4 pin4pin 12V: 1Molex: 3SATA: 2Floppy: 1 Dimensions (W x H x D) 3.20 x 1.60 x 5.90" (81.3 x 40.6 x 149.9 mm) Weight Not specified by the manufacturer Packaging Info Box Dimensions (LxWxH) 10.0 x 8.0 x 6.0"
