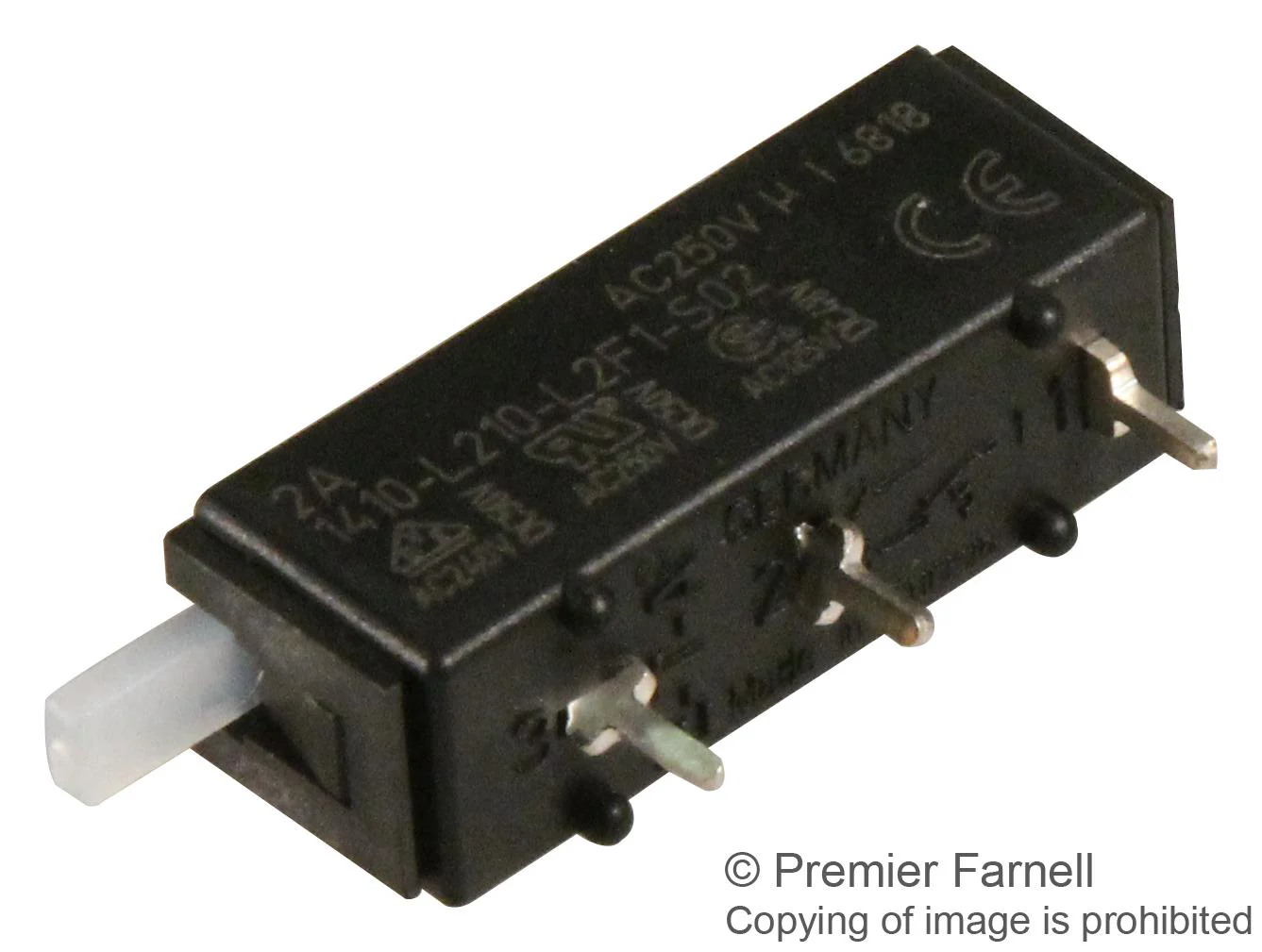

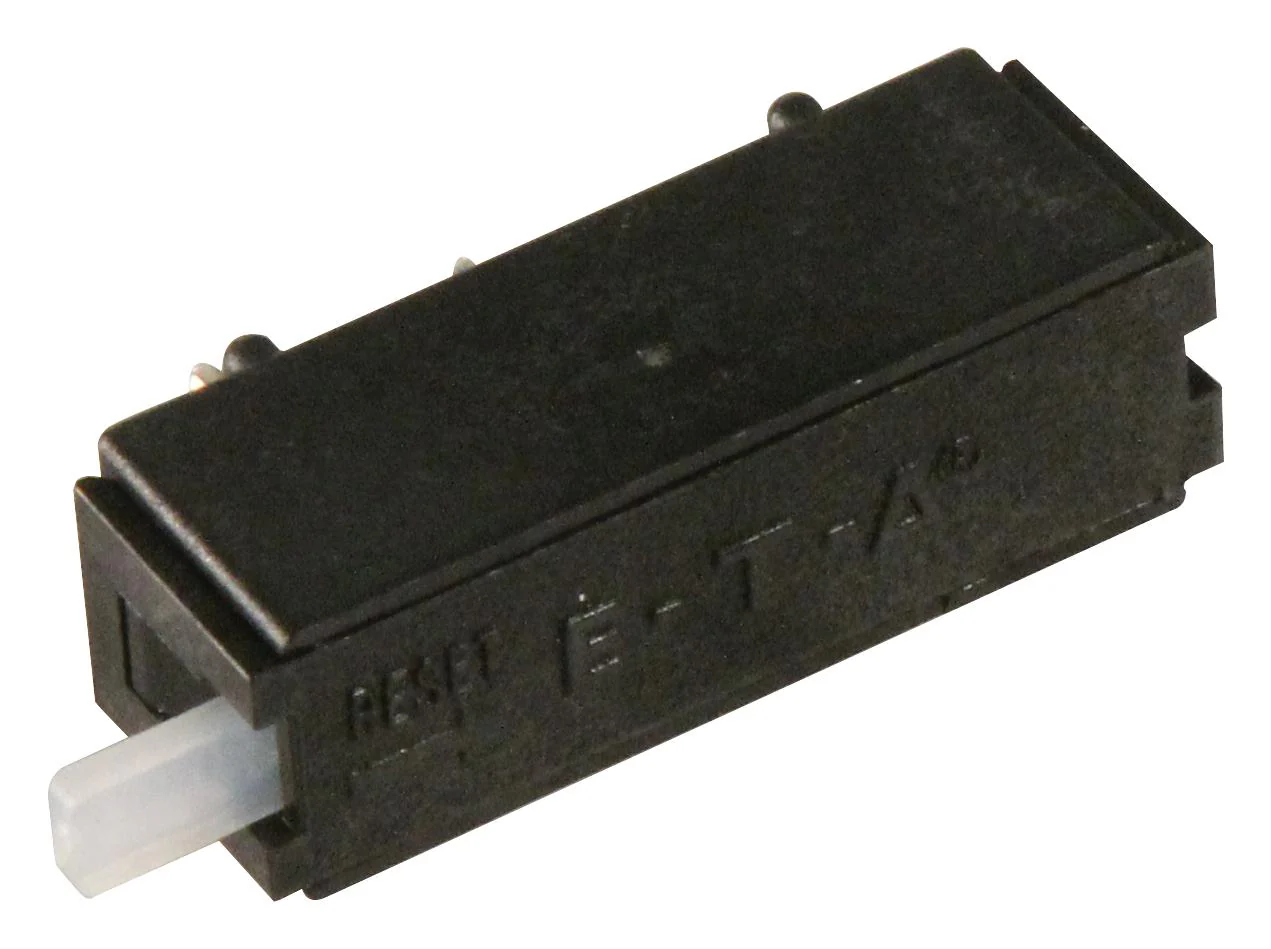

ETA 1410-L210-L2F1-S02-2A 1410-L210-L2F1-S02-2A Thermal Circuit Breaker 1410 2 A 1 Pole 28 VDC 240 VAC PCB Through Hole

The 1410 series single-pole press-to-reset thermal Circuit Breaker with extremely fast overload switching performance (R-type to CBE to EN 60934). Single-hole thread-neck, PCB or integral mounting with a choice of designs. Miniaturised construction minimises PCB real estate required. Type 1410-L2 and 1410-G1 versions feature changeover contacts suitable for providing status output signals. It is suitable for transformers, solenoids, PCBs and hand-held machines.

• Largely temperature-insensitive
• >100MR at 500VDC Insulation resistance
• IP40/IP00 Protection rating
• -20 to 70°C Ambient temperature range

Applications

Motor Drive & Control, Industrial, Consumer Electronics, Sensing & Instrumentation

Other details

Brand	ETA
Part Number	1410-L210-L2F1-S02-2A
Quantity	Each
Technical Data Sheet EN
