Dfrobot SEN0429 Sensor Board Distance Ranging TMF8701 2.7 V to 3.3 Arduino UNO R3
SEN0429 is a Fermion: TMF8701 ToF distance ranging sensor (10-600mm) (breakout). The TMF8701 is a time-of-flight distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the colour, reflectivity and texture of the object. The TMF8701 offers high dynamic range and operates in either a proximity mode (1-10cm) or a ranging mode (10-60cm) for detection sensing. And the device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. TMF8701 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.
- 21� FOI, detect the object closest to the centre
- 940nm VCSEL class 1 eye safety
- Low power consumption
- Operating voltage is 2.7~3.3V
- Dimension is 21�14.5mm

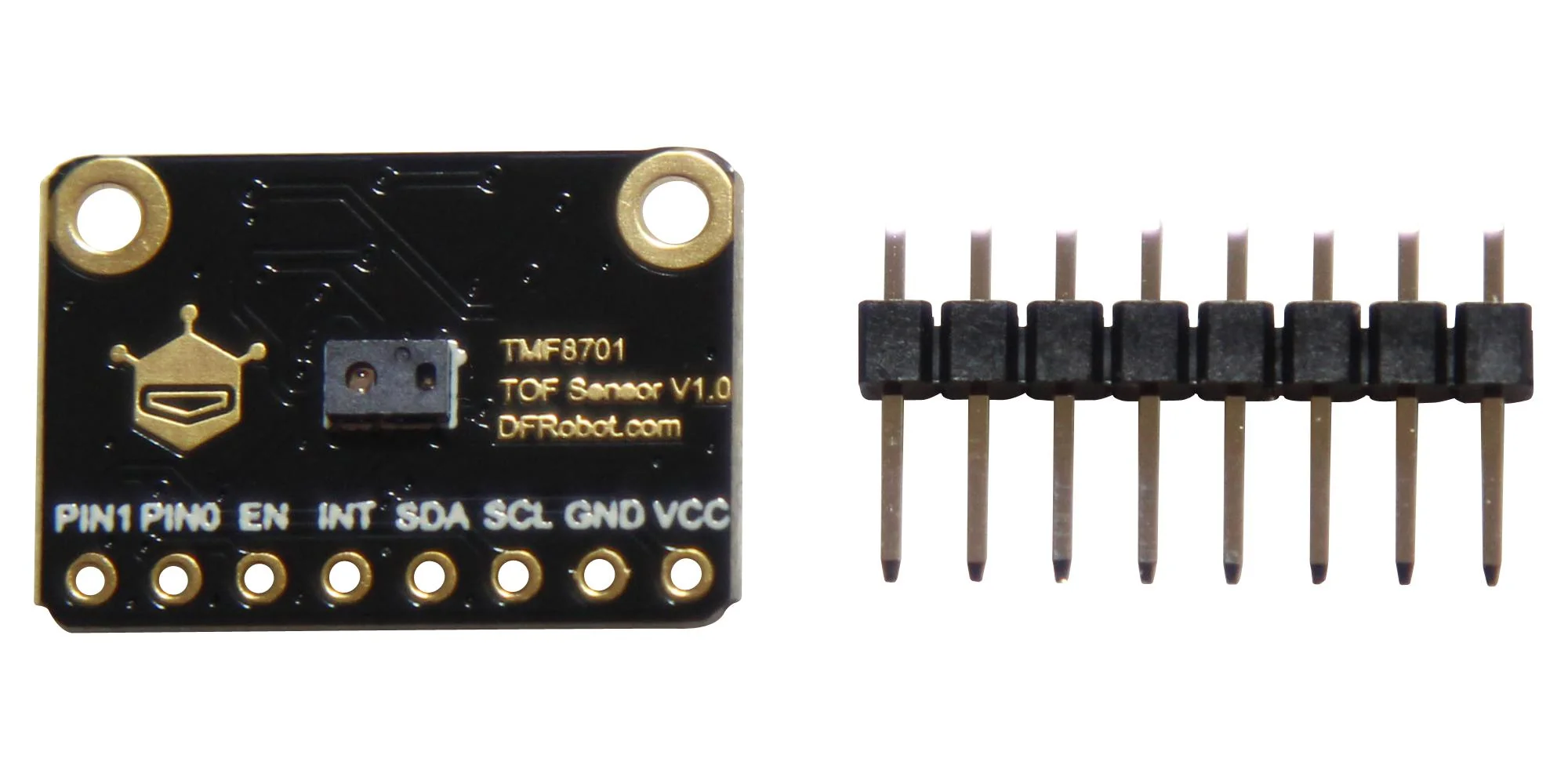

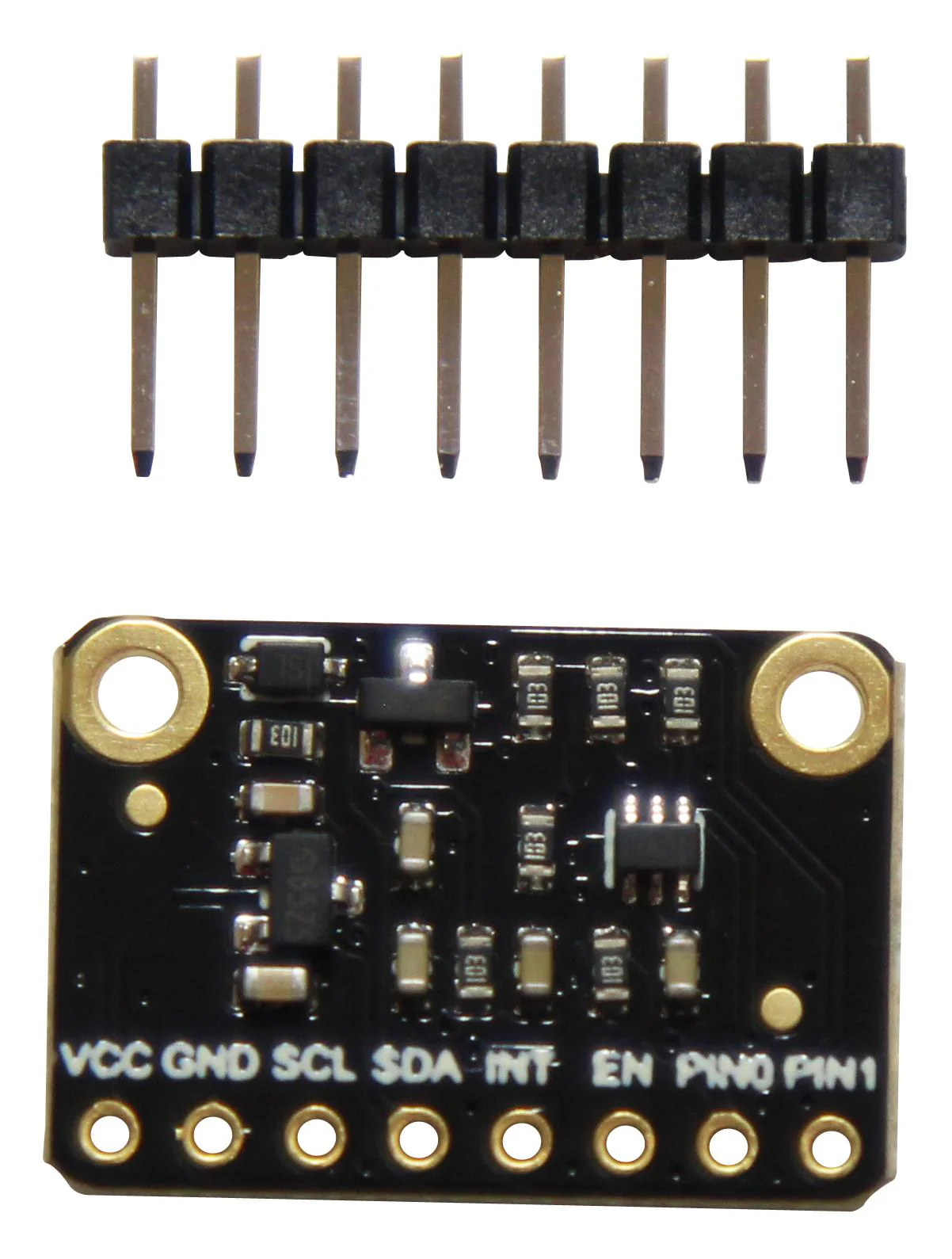

Fermion: TMF8701 ToF distance ranging sensor (10-600mm) x1, 2.54-8P black single-row connector x1.
Product details
| Silicon Manufacturer | AMS |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Core Number | TMF8701 |
| Silicon Family Name | - |
| For Use With | Arduino UNO v3.0[R3] Board |
| Kit Contents | Time-of-Flight Distance Ranging Sensor TMF8701, 8P Black Single-Row Connector |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | SEN0429 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
