Comica Audio ADCaster C1-K1 Streaming and Podcasting Audio Kit
Comica Audio ADCaster C1 Overview
- 1Description
- 2DSP-Rich Condenser Microphone
- 3Hi-Res Sound Card
- 4Thin and Lightweight, Miniature and Portable
- 5Wide Compatibility and Multi-Mic Support
- 63.5mm and USB-C Output for Live Streaming
- 7Internal Bluetooth 5.3 Chipset
- 8Dedicated Controls
- 9Preset and Custom Sound Effects
- 10One-Click Functions
- 11Built-In Lithium Battery
- 12Touch-Sensitive Panel Design
By Photo's
Trevor Collins
Equip yourself for portable streaming and podcasting anywhere with the ADCaster C1-K1 Audio Kit from Comica Audio, a miniature audio interface bundled with a 25mm condenser microphone with high-resolution 24-bit / 48 kHz sound capture and sophisticated features oriented towards the modern content creator. The STA-X2S cardioid condenser mic minimizes unwanted environmental noise for clear capture, and sports onboard DSP for enriching your content, including three EQ modes, three reverb modes, and five voice-changing modes.
Convenient streaming-oriented features include one-click activated denoising, loopback, muting, and ducking, as well as six touch-sensitive pads (four preset, two user created) for enhancing the production quality of your streams and podcasts. The internal battery gives you six hours of operation, freeing you from the confines of a studio. Power the interface over USB-C from a power adapter, power bank, or computer for even more operating time. The ADCaster 1 includes one 2-in-1 USB audio cable, one USB-C to dual-XLR audio cable, two 3.5mm TRRS audio cables, one USB-C to USB-A charging cable, and two sound pad templates.
DSP-Rich Condenser Microphone
Enrich your productions and bring a different experience to your gaming and content creation with the STA-X2S cardioid condenser microphone. With the STA-X2S, you get:
- 3 EQ modes (clear, natural, and low)
- 3 reverb modes (hall, stage, and room)
- 5 voice-changing modes (male, female, robot, monster four-voice FX, and independent tune function)
Hi-Res Sound Card
The ADCaster C1 sound card supports hi-resolution 24-bit / 48 kHz sampling rate and bit depth, as well as extremely low noise. The sound card features dual 48V phantom-powered XLR inputs, dual 3.5mm inputs, and a USB OTG interface.

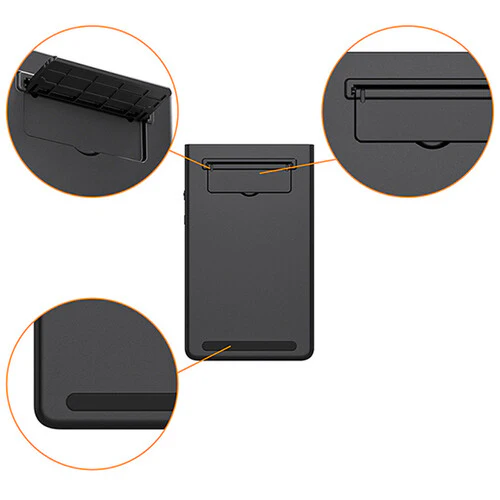

Thin and Lightweight, Miniature and Portable
The ADCaster C1 is incredibly thin at just 0.6" and sports an ultralight weight of a mere 272 grams, making it as small as an iPad mini. You can easily take it with you anywhere for indoor or outdoor recording.
Wide Compatibility and Multi-Mic Support
Designed with external dual XLR inputs via a USB-C to XLR cable and dual integrated 3.5mm mic input jacks, the ADCaster C1 sound card is compatible with 99% of existing XLR and 3.5mm mics. You can use up to two microphone inputs at the same time without issues during two-person podcasts or interviews.

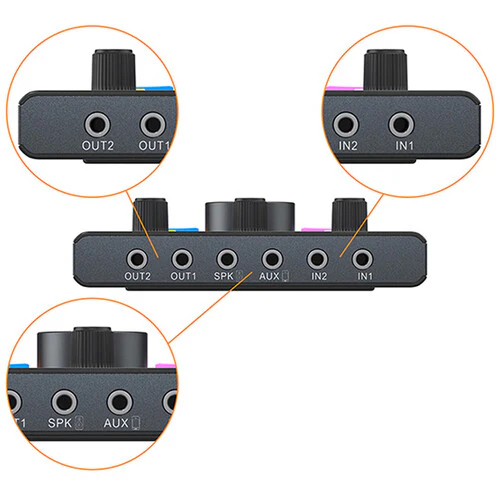

3.5mm and USB-C Output for Live Streaming
You can use the USB-C digital output and the two 3.5mm analog jacks to support connections with multiple mobile phones and computers simultaneously, achieving a multiplatform synchronous live streaming setup with ease.
Internal Bluetooth 5.3 Chipset
The high-quality Bluetooth 5.3 chip supports stable transmission and low latency. You can directly connect your smartphone or similar device without worrying about cable clutter. Audio transmits wirelessly without stuttering.

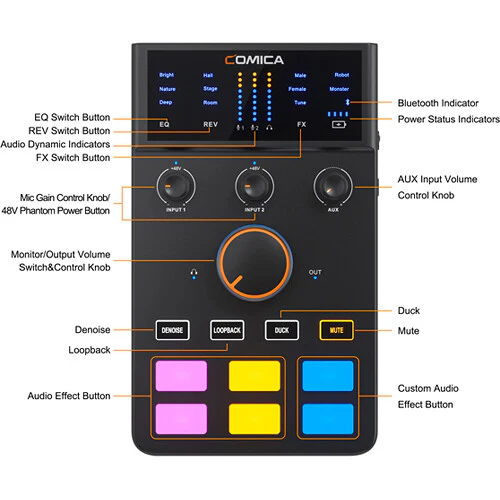

Dedicated Controls
The ADCaster C1 is equipped with two separate preamp gain control knobs, providing up to 60 dB of gain. It is widely compatible with 90% of high-impedance dynamic microphones. Intuitive controls make it easy to adjust background volume, real-time monitor volume, and output gain, with just a single click.
Preset and Custom Sound Effects
You get four warm-up sound effects including applause, cheering, laughter, and embarrassment, as well as two custom sound effects. Freely record your favorite songs, music, beats, and more, to create exclusive sound FX and establish your streaming or podcasting atmosphere.
One-Click Functions
Along with level controls, you can also activate a number of useful features for supporting your productions with just a single button press, including:
- Denoise: Filters out ambient noise for studio-quality sound
- Loopback: Useful for feeding audio to and from remote sources such as a smartphone or conferencing software, ideal for streaming and podcasting
- Mute: Just one click stealthily turns on the mute function, so you can take a quick break without making a scene
- Duck: Automatically lowers the volume of background sounds when the host is speaking
Built-In Lithium Battery
The internal 1800mAh battery provides six hours of operating time, letting you take your interface with you anywhere, even to places without power outlets. You can also run the ADCaster 1 entirely off bus power, letting you charge with a battery or power bank and stream at the same time.
Touch-Sensitive Panel Design
The high-end touch panel is more convenient than a traditional button control panel, solving the issue of keys affecting the audio recording and making noise. The visual operation is also more intuitive and flexible when making adjustments on the fly.
In the Box
- Comica Audio ADCaster C1-K1 Streaming and Podcasting Audio Kit
- Comica Audio ADCaster C1 Miniature Integrated Audio Interface
- STA-X2S Condenser Microphone
- Pop Filter
- Shockmount
- Desktop Microphone Stand
- 2-in-1 USB Audio Cable
- USB-C to Dual XLR Audio Cable
- XLR to 3.5mm TRS Audio Cable
- 2 x 3.5mm TRRS Audio Cable
- USB-C to USB-A Charging Cable
- 2 x Sound Pad Template
- Limited 1-Year Manufacturer Warranty
Guides & Manuals
Table of Contents
- Description
- DSP-Rich Condenser Microphone
- Hi-Res Sound Card
- Thin and Lightweight, Miniature and Portable
- Wide Compatibility and Multi-Mic Support
- 3.5mm and USB-C Output for Live Streaming
- Internal Bluetooth 5.3 Chipset
- Dedicated Controls
- Preset and Custom Sound Effects
- One-Click Functions
- Built-In Lithium Battery
- Touch-Sensitive Panel Design
Comica Audio ADCaster C1 Specs
Key Specs
| Channels of I/O |
5 Input / 5 Output
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Inputs |
2
|
| Input Level Adjustment |
2x Knob
|
| Number of Headphone Mixes |
2x Master
|
| Analog Audio I/O |
2x XLR 3-Pin Line Input (on Included Breakout Cable)
2x 1/8" / 3.5 mm TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Aux Input 2x 1/8" / 3.5 mm TRRS Line Output 1x 1/8" / 3.5 mm TRS Monitor Output 2x 1/8" / 3.5 mm TRRS Headphone Output |
| Host Connection |
1x USB-C (Class-Compliant)
|
| OS Compatibility |
macOS
Windows |
| Power Requirements |
Battery, USB Bus Power, USB Power Adapter (Included)
|
| Channels of I/O |
5 Input / 5 Output
|
| Built-In DSP |
Yes
|
| Maximum Sampling Rate |
48 kHz / 24-Bit
|
| Number of Microphone Inputs |
2
|
| Built-In Microphone |
No
|
| Input Level Adjustment |
2x Knob
|
| Number of Headphone Mixes |
2x Master
|
| Expansion Slots |
No
|
Signal Processing
| Pad |
No
|
| Gain/Trim Range |
XLR Mic Inputs:
+10 dB to +60 dB |
| High-Pass Filter |
No
|
Connectivity
| Analog Audio I/O |
2x XLR 3-Pin Line Input (on Included Breakout Cable)
2x 1/8" / 3.5 mm TRS Mic/Line Input 1x 1/8" / 3.5 mm TRS Aux Input 2x 1/8" / 3.5 mm TRRS Line Output 1x 1/8" / 3.5 mm TRS Monitor Output 2x 1/8" / 3.5 mm TRRS Headphone Output |
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
1x USB-C (Class-Compliant)
|
| Host Connection Protocol |
USB 3.0 / 3.1/3.2 Gen 1
|
| USB (Non-Host) |
1x USB-C (Digital Input)
1x USB-C (Device Charging) |
| MIDI I/O |
No
|
| Wireless |
Bluetooth 5.3
*Built-In |
Performance
| Frequency Response |
XLR Mic Inputs:
20 Hz to 20 kHz 1/8" / 3.5 mm Speaker Outputs: 20 Hz to 20 kHz 1/8" / 3.5 mm Headphone Outputs: 20 Hz to 20 kHz |
| Maximum Input Level |
XLR Mic Inputs:
-8 dBu |
| Maximum Output Level |
1/8" / 3.5 mm Monitor Outputs:
4 dBu 1/8" / 3.5 mm Headphone Outputs: 4 dBu |
| Impedance |
XLR Mic Inputs:
5 Kilohm 1/8" / 3.5 mm Monitor Outputs: 600 Ohms 1/8" / 3.5 mm Headphone Outputs: 6 Ohms |
| Dynamic Range |
XLR Mic Inputs:
100 dB (A Weighted) 1/8" / 3.5 mm Speaker Outputs: 100 dB (A Weighted) 1/8" / 3.5 mm Headphone Outputs: 100 dB (A Weighted) |
| THD+N |
XLR Mic Inputs:
0.003% (1 kHz, -3 dBFS, 22 Hz / 22 kHz BPF) |
Digital Audio
| Sample Rates |
48 kHz
|
| Sample Rate Conversion |
No
|
| Bit Depths |
24-Bit
|
| Sync Sources |
No
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
macOS
Windows |
| Mobile App Compatible |
No
|
Power
| Power Requirements |
Battery, USB Bus Power, USB Power Adapter (Included)
|
| AC/DC Power Adapter |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
