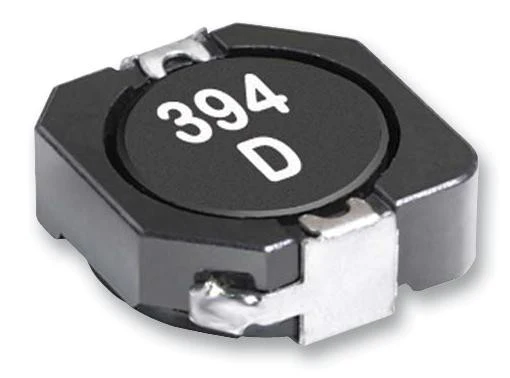

COILCRAFT MSS1038-153MLC Surface Mount Power Inductor, MSS1038 Series, 15 µH, 3.8 A, 2.84 A, Shielded, 0.05 ohm

The MSS1038-153MLC is a surface mount shielded Power Inductor with ferrite core. This inductor features matte tin over nickel over copper terminations and is resistance to soldering heat maximum three 40 seconds reflows at +260°C, parts cooled to room temperature between cycles. This inductor also features moisture sensitivity level (MSL) of 1, failures in time (FIT)/mean time between failures (MTBF) is 38 per billion hours/26,315,789 hours, calculated per Telcordia SR-332 and only pure water or alcohol recommended for wash. DC current at which the inductance drops the specified amount from its value without current and Inductance tested at 100kHz, 0.1Vrms, 0Adc.
