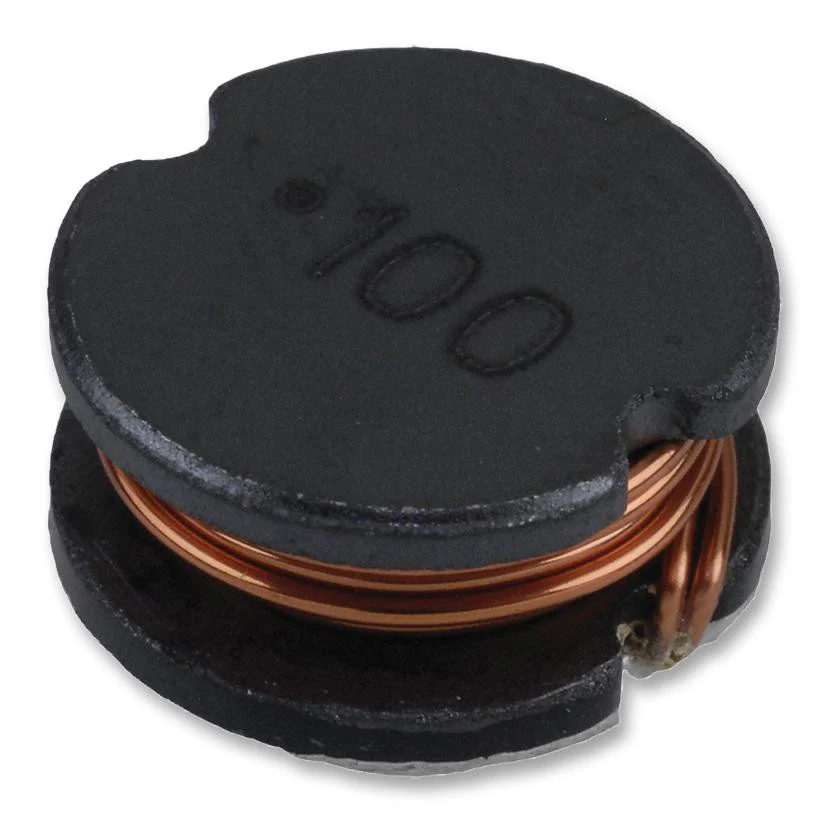

BOURNS SDR1307-150ML Surface Mount Power Inductor, SDR1307 Series, 15 µH, 4.5 A, 7.5 A, Unshielded, 0.034 ohm
HomeStore

BOURNS SDR1307-150ML Surface Mount Power Inductor, SDR1307 Series, 15 µH, 4.5 A, 7.5 A, Unshielded, 0.034 ohm

BOURNS SDR1307-150ML Surface Mount Power Inductor, SDR1307 Series, 15 µH, 4.5 A, 7.5 A, Unshielded, 0.034 ohm

This is a Surface Mount Power Inductor, SDR1307 Series, 15 µH, 4.5 A, 7.5 A, Unshielded, 0.034 ohm product from BOURNS with the model number SDR1307-150ML

Product details

Product Range SDR1307 Series
Inductance 15µH
RMS Current (Irms) 4.5A
Saturation Current (Isat) 7.5A
Inductor Construction Unshielded
DC Resistance Max 0.034ohm
Power Inductor Case 13mm x 13mm x 7mm
Inductance Tolerance ± 20%
Packaging Cut Tape

Other details

Brand BOURNS
Part Number SDR1307-150ML
Quantity Each (Supplied on Cut Tape)
Technical Data Sheet EN Download technical document - datasheet - Tanotis India
3D Product Image EN Download technical document - datasheet - Tanotis India

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
