Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black)
HomeStore

Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black)

Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black)

Atlas Sound FAP40T Overview

  • 1Description
  • 2Extended Bass Response
  • 3Sturdy Construction
  • 4Internal Transformer with Selectable Taps
  • 52-Pole Terminal Strip
  • 6Tile Bridge

This pair of black Atlas Sound FAP40T lightweight Strategy II Series 4" 16W ceiling speakers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 4" polypropylene full-range drivers are housed by low-profile plastic enclosures, which are tuned and ported for extended low-frequency range. Each FAP40T yields a frequency response of 100 Hz to 12 kHz, with adjustable power output settings ranging from 16W at 8 ohms to a maximum of 16W at 70.7V. The tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the 2-pole terminal strip, located beneath a removable rear-panel cover. Two tile bridges�one for each speaker�are included for easy installation in suspended ceiling tiles.

Extended Bass Response
The tuned and ported design of the enclosure is specifically intended to give the listener an extended bass response.
Sturdy Construction
The low-profile enclosure features a press-fit steel mesh grille and high-impact plastic exterior for durability. Lightweight construction renders additional support in drywall ceilings unnecessary.
Internal Transformer with Selectable Taps
The 16W internal transformer offers power taps at 1, 2, 4, 8, or 16 watts, as well as an 8-ohm setting that bypasses the transformer.
2-Pole Terminal Strip
The 2-pole terminal strip is housed behind a removable metal cover that allows for easy access and daisy-chain capabilities.
Tile Bridge
The included tile bridges are designed for use on 2 x 4' or 2 x 2' suspended ceiling tiles.
UPC: 612079189366

In the Box

  • Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black)
  • 2 x Tile Bridges
  • Limited 5-Year Manufacturer Warranty
    Table of Contents
    • Description
    • Extended Bass Response
    • Sturdy Construction
    • Internal Transformer with Selectable Taps
    • 2-Pole Terminal Strip
    • Tile Bridge

    Atlas Sound FAP40T Specs

    Speaker
    Active or Passive Passive
    Number of Included Speakers 2
    Speaker Configuration Full-Range
    Constant Voltage / Transformer Taps 70 V:
    1 / 2 / 4 / 8 / 16 W or 8 Ohms Bypass
    Transformer Wattage 16 W
    Drivers
    Full-Range Driver 1 x 4" / 10.16 cm Polypropylene-Coated Cone
    Full-Range Voice Coil 1" / 2.54 cm
    Magnet 13 oz / 368.5 g
    Performance
    Frequency Response 100 Hz to 12 kHz ±3 dB
    80 Hz to 15 kHz ±5 dB
    Sensitivity 87 dB
    Coverage Angle 130° (Conical)
    Connectivity
    I/O Screw Terminal 2-Pole Input
    Environmental
    Certifications UL
    *as per Manufacturer
    Physical
    Color Black
    Mounting In-Ceiling
    Cutout Size 6.3 x 6.3" / 16 x 16 cm
    Construction Material Perforated Metal Grille, Plastic
    Dimensions 7.4 x 7.1" / 18.7 x 18.1 cm

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $512.53
    Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black)—
    $512.53

    More Images

    Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black) - Image 2

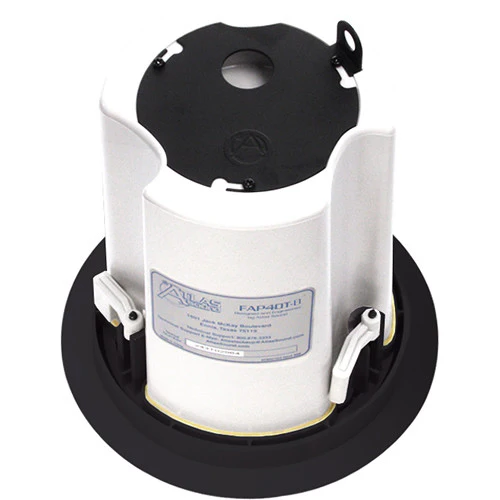

    Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, Black) - Image 3
