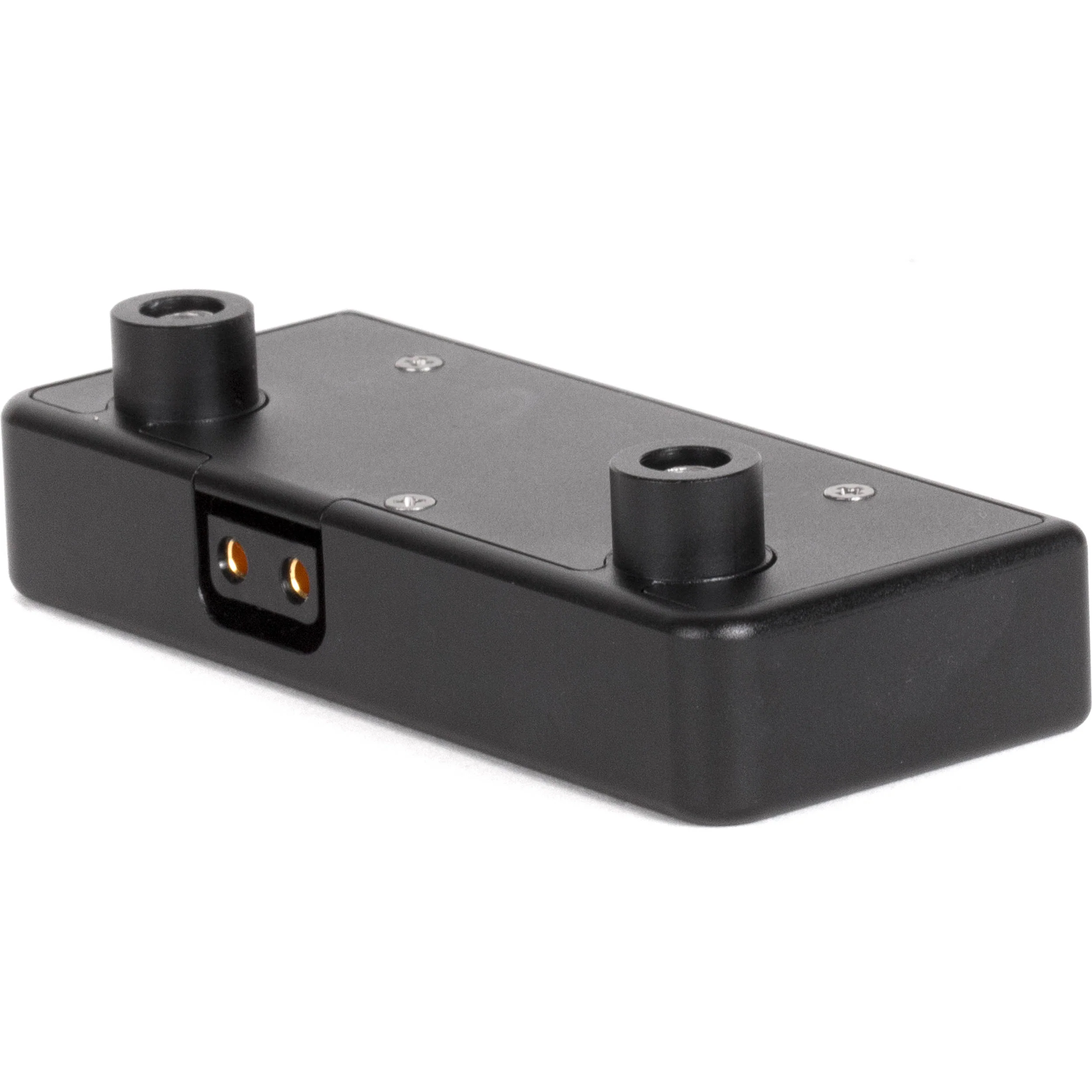

Wooden Camera Power Strip with 18.3' Y Cable for D-Box and Sony Rialto
Wooden Camera 900214 Overview

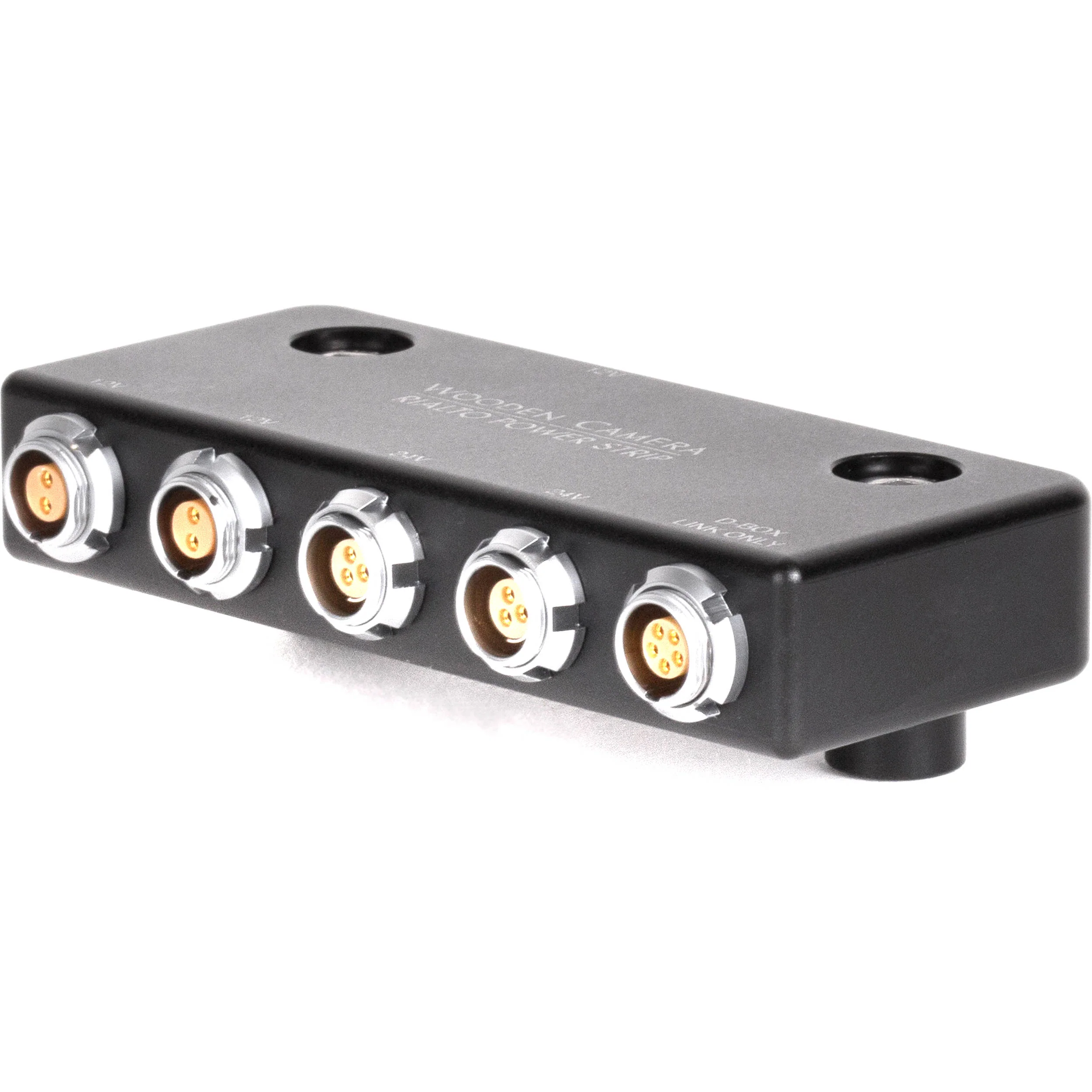

Expand the Sony Rialto extension system for your Sony VENICE camera with this Power Strip with 18.3' Y Cable from Wooden Camera. The power strip provides two 12V 2-pin LEMO-type connectors, two 24V 3-pin Fischer connectors, and a D-Tap port.
The separately available Wooden Camera D-Box is required to pass power to the power strip from either Gold mount or V-mount batteries, and it plugs into the 5-pin D-Box port. The power strip attaches to the Sony Rialto with two 1/4"-20 screws and connects to the Rialto extension head cable with the included 18.3' Y-cable. Also included are five hook-and-loop cable ties to secure the Y-cable to the Rialto.
Sony Rialto Extension System for Sony VENICE camera

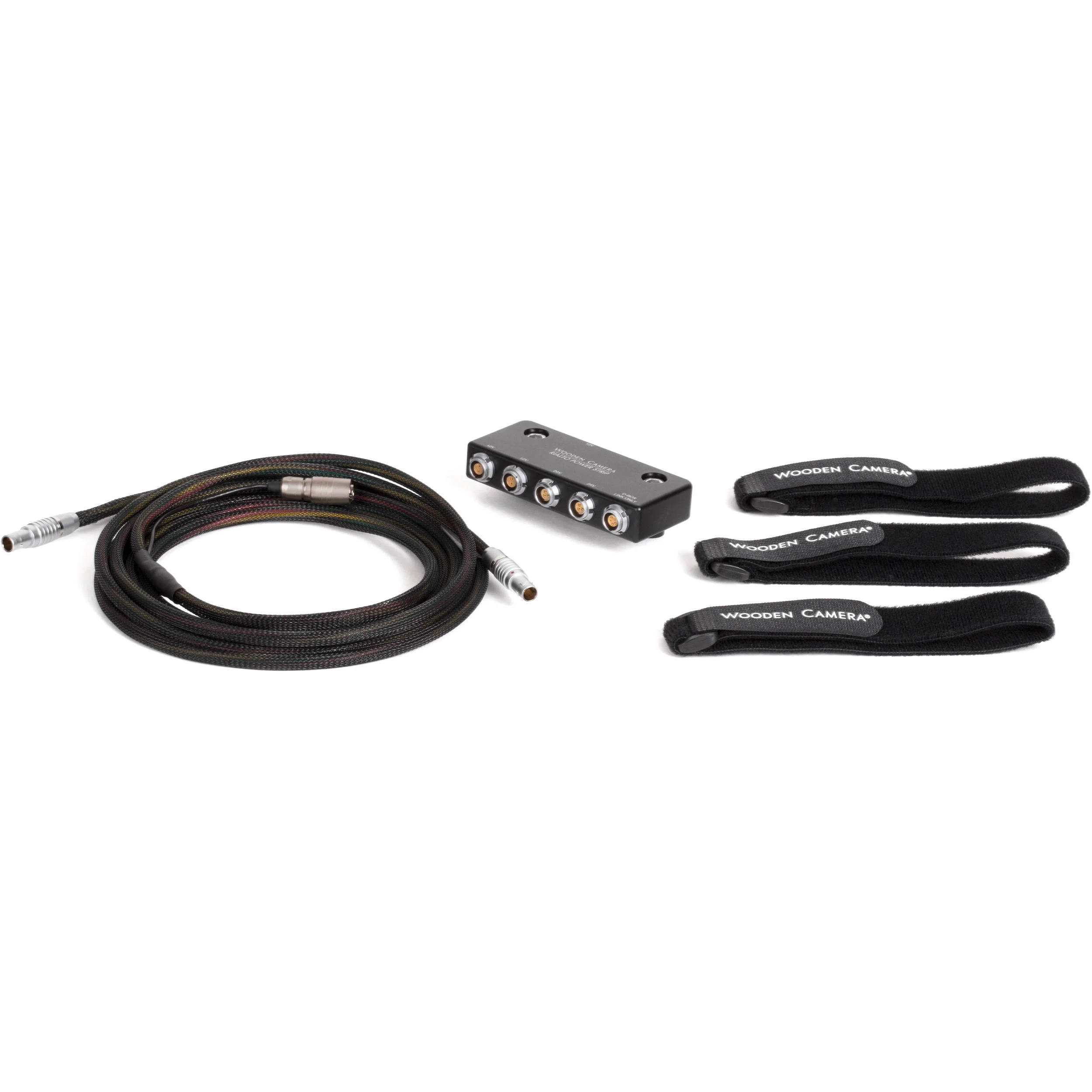

In the Box
- Wooden Camera Power Strip with 18.3' Y Cable for D-Box and Sony Rialto
- Wooden Camera Power Y Cable for Sony Rialto and D-Box (220")
- 5 x Cable Tie
- Limited 1-Year Manufacturer Warranty
Wooden Camera 900214 Specs
| Connectors |
2 x 2-Pin LEMO, 12 V
2 x 3-Pin Fischer, 24 V 1 x D-Tap, 12 V 1 x 5-Pin Link Port for D-Box |
| Mounting |
2 x 1/4"-20 Captive Screws
|
| Cable Length |
18.3' / 5.6 m
|
| Dimensions |
3.5 x 1 x 1.5" / 88.9 x 25.4 x 38.1 mm
|
| Weight |
2.5 oz / 70 g
|
| Package Weight |
0.78 lb
|
| Box Dimensions (LxWxH) |
11.4 x 7.8 x 2.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
