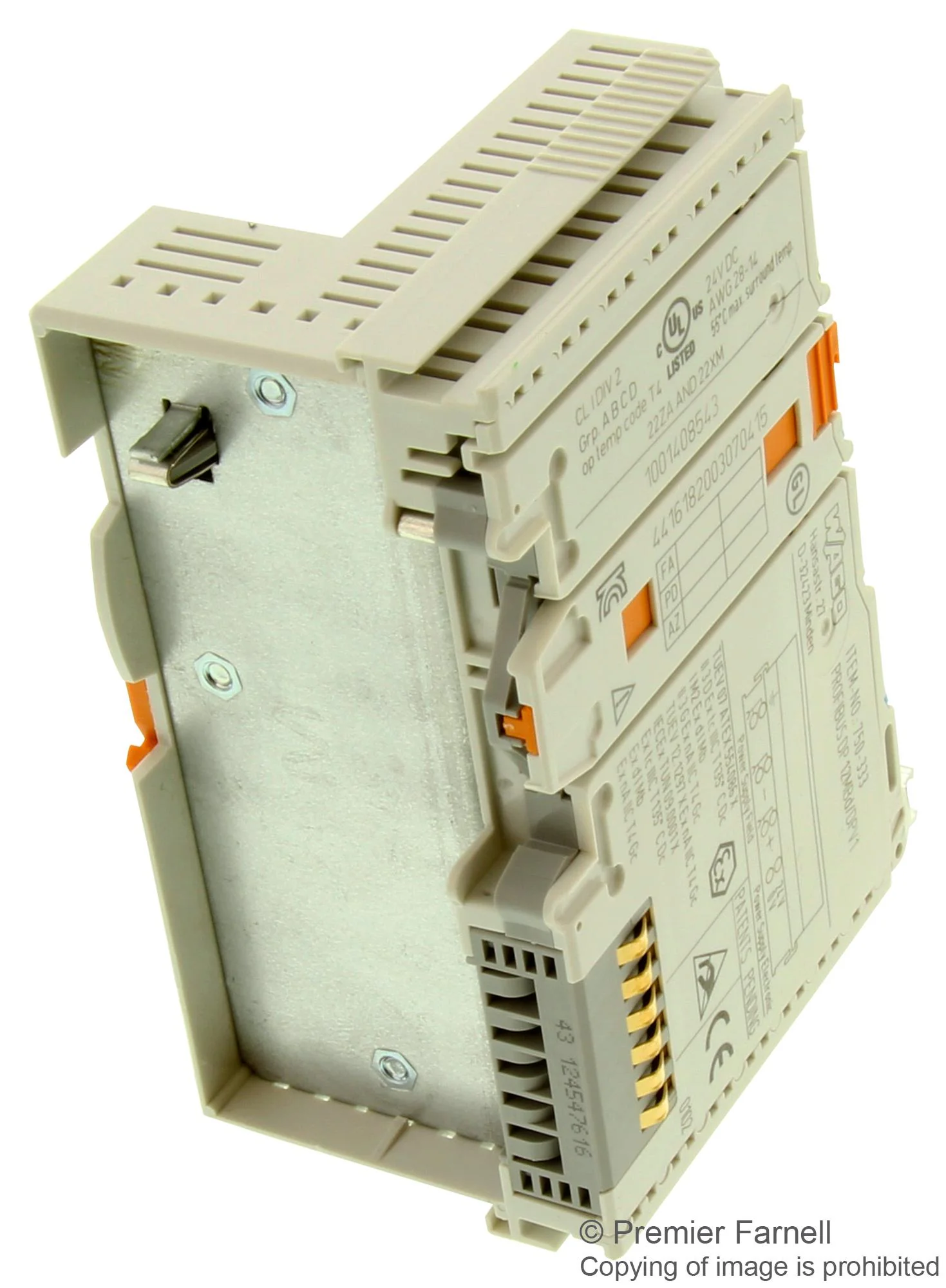

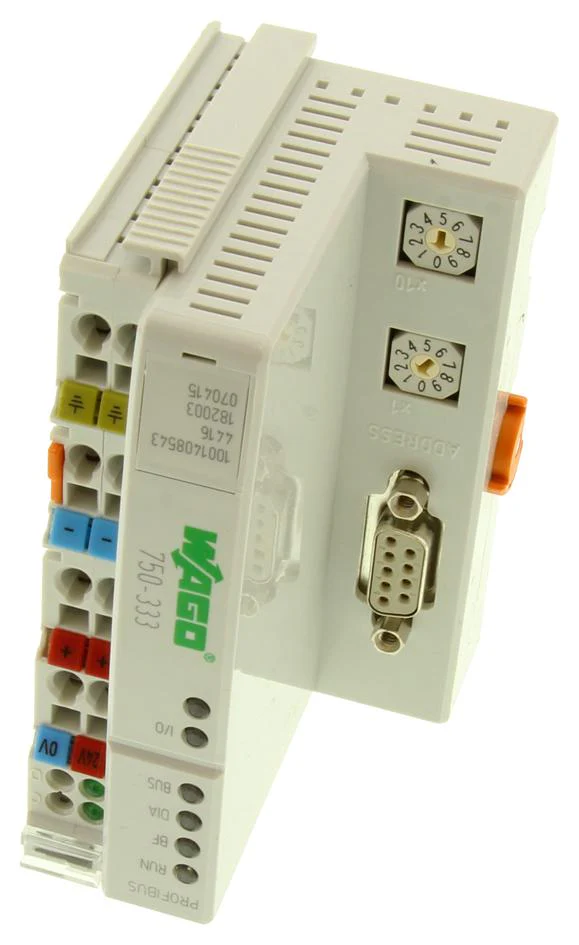

Wago 750-333 750-333 Fieldbus Coupler Profibus DP V1750 Series Digital and Analog Signals 12 Mbaud

The 750-333 is a Fieldbus Coupler interfaces the I/O modules of the Wago I/O system to PROFIBUS DP. When initializing, the bus coupler determines the module structure of the node, to create the process image in PROFIBUS. In order to optimize addresses, the I/O modules with a bit width smaller than 8 are grouped in one byte. It is furthermore possible to deactive I/O modules and to modify the image of the node according to the connected signals without having to modify the existing application. The diagnosis concept is based on diagnostics according to the EN 50170 standard. Therefore the programming of modules is not necessary to interpret the diagnostic information from each manufacturer.

• 63 I/O modules
• 244-byte Maximum input process image
• 244-byte Maximum output process image
• 87% Power supply efficiency

Applications

Automation & Process Control

Product details

Current Rating	1.8A
Product Range	-

Other details

Brand	WAGO
Part Number	750-333
Quantity	Each
Technical Data Sheet EN
