Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor
HomeStore

Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor

Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor

Viltrox DC-V1 Overview

The lightweight DC-V1 5.5" Touchscreen HD On-Camera Monitor from Viltrox lets you view your camera's image on a bright, sharp 5.5" display. The DC-V1 supports up to DCI/UHD 4K30 via the HDMI video input and can send the signal to another display through an HDMI loop-through output. This model features multiple image tools such as histogram and waveform, and its 400 cd/m² brightness makes it suitable for indoor or outdoor use.

The DC-V1 features a 1920 x 1080 display that supports live view from your camera, and you can monitor the audio via its built-in speaker or 3.5mm headphone port. The SD card slot can be used to upgrade the firmware or to add custom 3D LUT files to apply to your view. At the rear of the monitor, a built-in L-series battery plate enables you to power the monitor with the L-series battery, or you can power it with a separately available DC barrel or USB-C adapter. The camera mounts onto a cage, camera, or rig using the included shoe adapter mount, and a sun hood is available to protect the monitor from glare.

Features
Daylight-viewable, 5.5" on-camera LCD monitor with 1920 x 1080 resolution
The DC-V1 features 400 cd/m² brightness for indoor and outdoor use
Full-size HDMI input, full-size HDMI loop-through output
Supports up to DCI/UHD 4K30 video input and output
Power the monitor with a separately available DC barrel or USB-C power adapter or via Sony L-series type batteries in the built-in battery plate
Import custom 3D LUTs via a separately available SD card using the built-in slot, which is also used for firmware updates
UPC: 784365598692

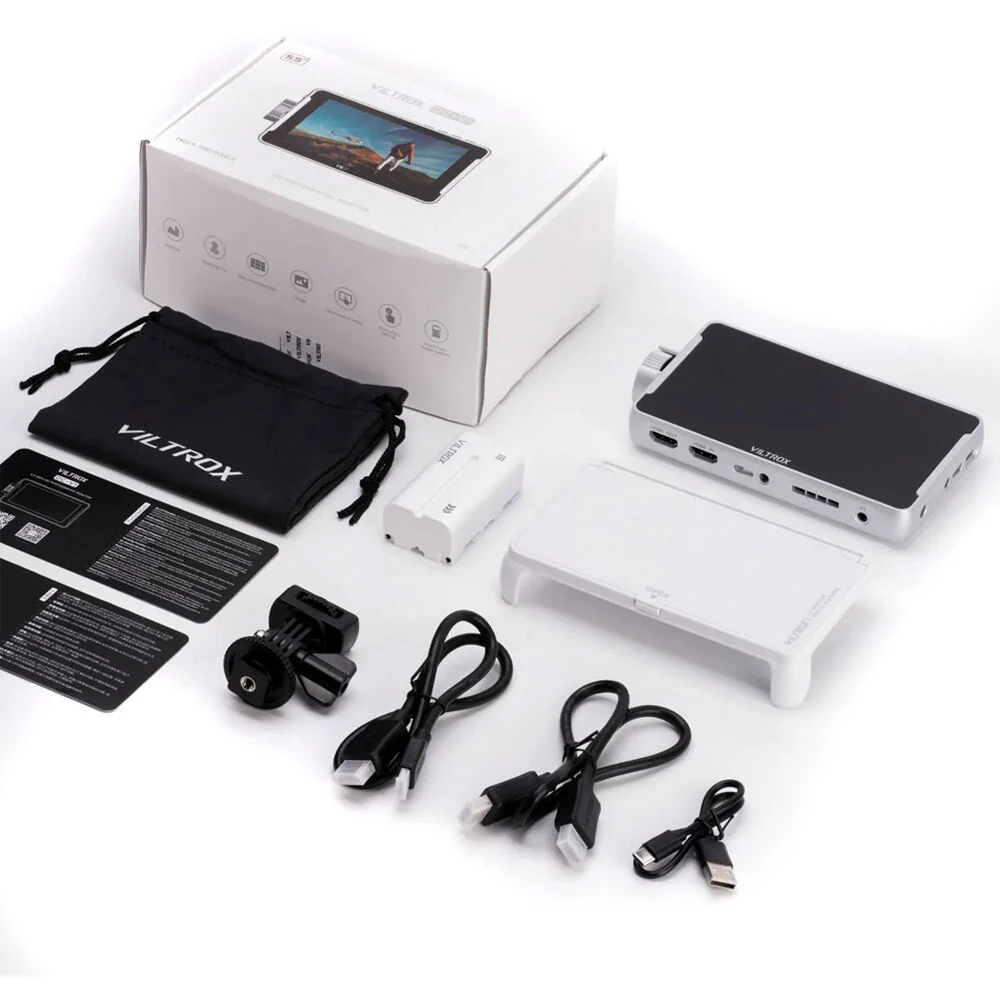

Items Included

  • Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor
  • Sun Hood
  • Shoe Mount Adapter
  • HDMI Type A to Mini-HDMI Cable
  • Limited 1-Year Manufacturer Warranty

Additional Resources

    Viltrox DC-V1 Specs

    Key Specs
    Display Size
    5.5" / 14.0 cm
    Native Resolution
    1920 x 1080
    Touchscreen
    Yes
    HDR Support
    No
    Video I/O
    1x HDMI 1.4 Input
    1x HDMI 1.4 Output
    Media/Memory Card Slot
    Single Slot: SD (Unspecified Type)
    Video Format
    HDMI
    DCI 4K: 30/25/24
    UHD 4K: 30/25/24
    1080p
    Battery Type
    1x L-Series
    Mounting
    1x 1/4"-20 Female (Bottom)
    Display
    Panel Type
    LCD
    Display Size
    5.5" / 14.0 cm
    Native Resolution
    1920 x 1080
    Aspect Ratio
    16:9
    Touchscreen
    Yes
    Maximum Brightness
    400 nits / cd/m2 (Peak)
    HDR Support
    No
    Pixels Per Inch (ppi)
    400 ppi
    LUT Support
    No
    Image Controls
    False Color, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform
    Inputs/Outputs
    Video I/O
    1x HDMI 1.4 Input
    1x HDMI 1.4 Output
    Embedded Audio
    HDMI
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    No
    Power I/O
    1x Barrel (2 A / 12 VDC) Input
    1x USB-C (3 A / 5 VDC) Input
    Other I/O
    No
    Media/Memory Card Slot
    Single Slot: SD (Unspecified Type)
    Wi-Fi
    No
    Bluetooth
    No
    Mobile App Compatible
    No
    Format Support
    Video Format
    HDMI
    DCI 4K: 30/25/24
    UHD 4K: 30/25/24
    1080p
    Gamma Curve
    Rec709
    Power
    Input Power
    12 to 18 VDC at 2 A
    Battery Type
    1x L-Series
    Mounting
    Mounting
    1x 1/4"-20 Female (Bottom)
    General
    Operating Conditions
    32 to 104°F / 0 to 40°C
    Storage Conditions
    -4 to 140°F / -20 to 60°C
    Material of Construction
    Aluminum
    Dimensions
    6.5 x 3.6 x 1.1" / 16.5 x 9.1 x 2.9 cm
    Weight
    7.87 oz / 223.00 g
    Packaging Info
    Package Weight
    1.5 lb
    Box Dimensions (LxWxH)
    8 x 5 x 3.75"

    All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
    $266.00
    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor—
    $266.00

    More Images

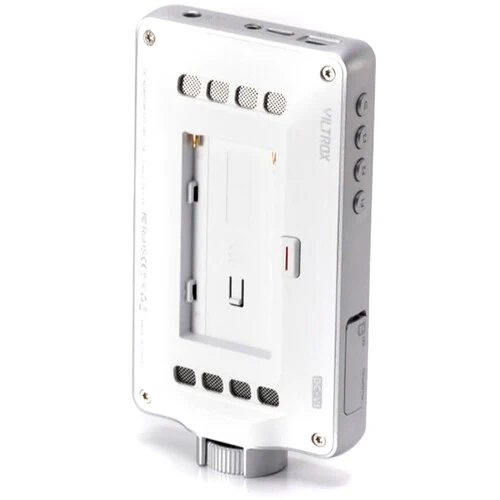

    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor - Image 2

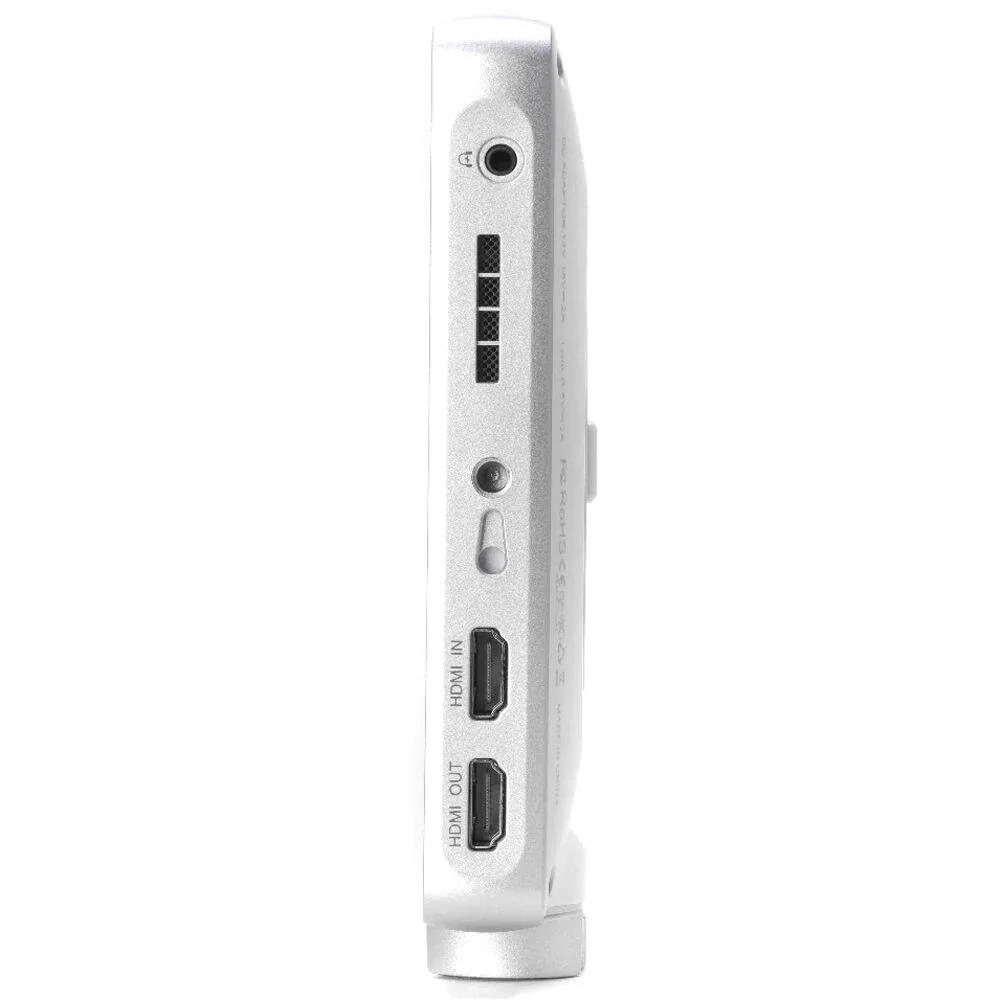

    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor - Image 3

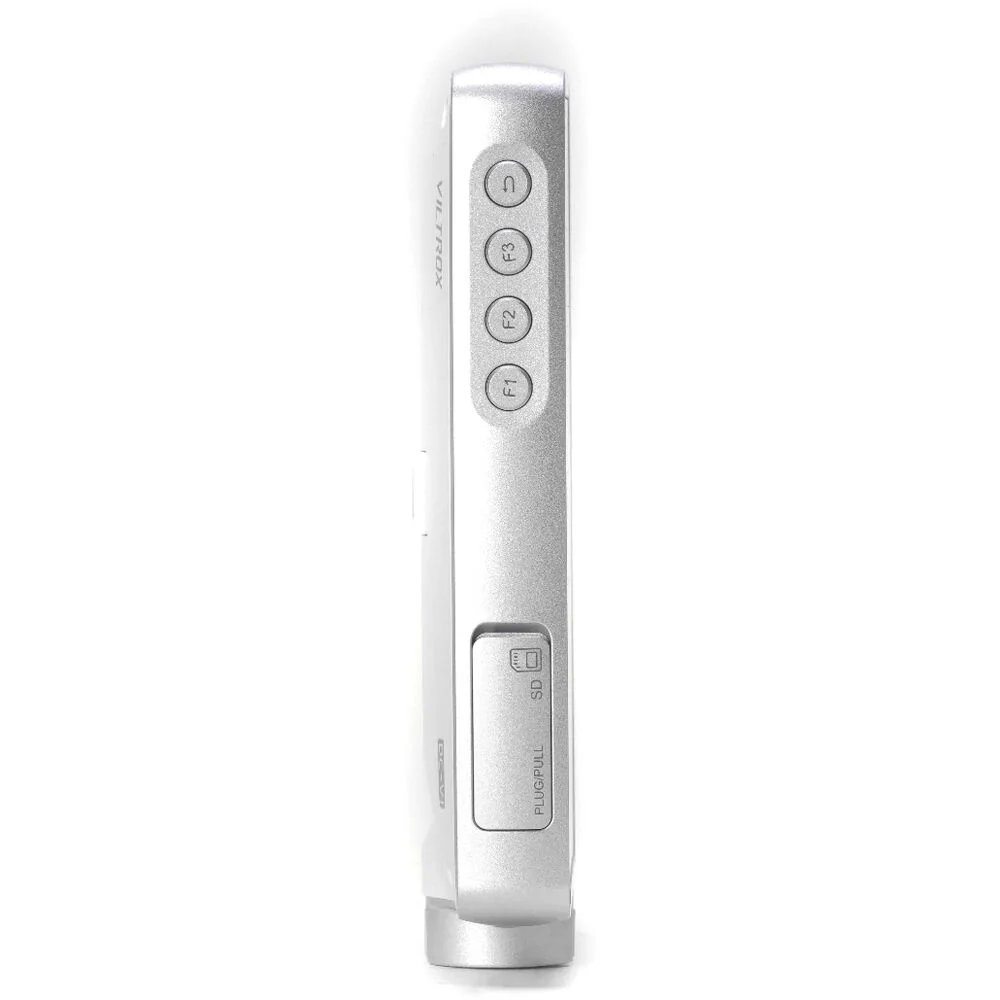

    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor - Image 4
    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor - Image 5

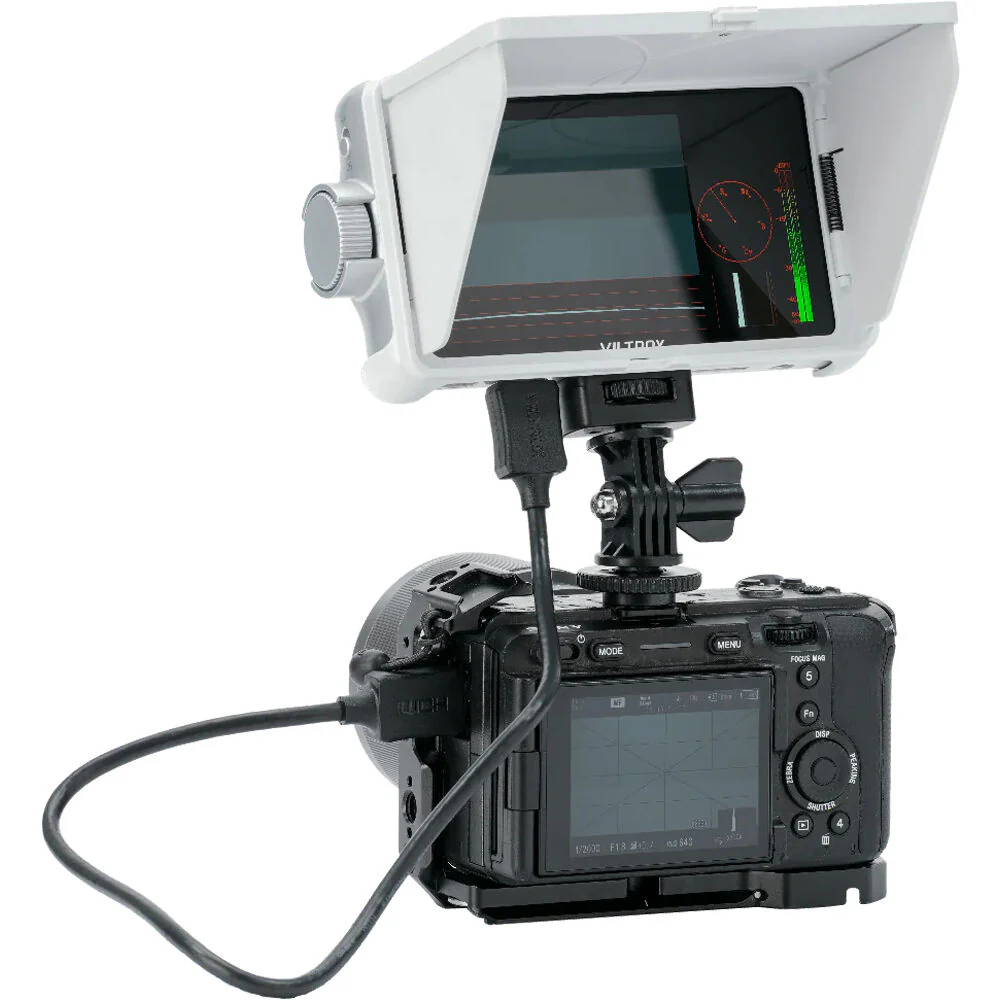

    Viltrox DC-V1 5.5" Touchscreen HD On-Camera Monitor - Image 6
