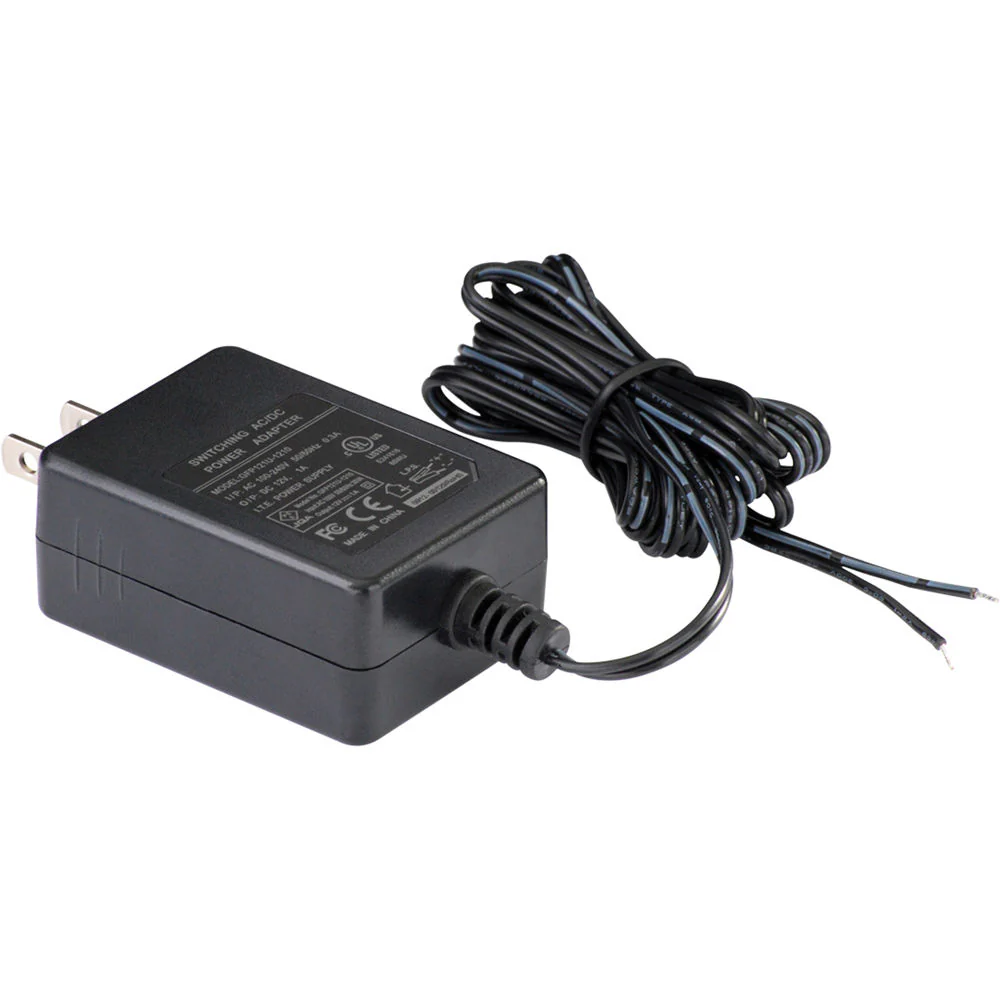

Vigitron VI0012 12 VDC Power Adapter
Vigitron VI0012 Overview
The VI0012 12VDC Power Adapter from VIGITRON is used to power analog and IP CCTV products. It comes equipped with a 2-pin standard IAC power plug that accepts 100 to 240 VAC input. This power adapter protects the connected device from over voltage, short circuit, and over current faults.
Features
Universal AC input / full range 100 to 240VAC
Low leakage current
Provides short circuit, overload, and over voltage protection
Fully enclosed plastic case
Class II power
Applications
CCTV equipment
Networking equipment
Powering transmission equipment
UPC: 841144100764
Items Included
- Vigitron VI0012 12 VDC Power Adapter
- Limited 1-Year Warranty
Additional Resources
No additional resources available
Vigitron VI0012 Specs
Electrical
| Input Voltage |
Universal 100 to 240 VAC @ 47 to 63 Hz
|
| Output Voltage |
Voltage 12 VDC ? 5% @ 1 A
|
| Output Power |
12 W
|
| Ripple & Noise (max) |
300 mV
|
| Output |
Striped Wired
|
| Protection |
OVP (Over Voltage Protection)
OCP (Over Current Protection) SCP (Short Circuit Protection) Automatic recovery after fault is removed |
Regulatory
| Certification |
UL, FCC, CE
|
Environmental
| Relative Humidity |
Operating: 20 to 80%
Storage: 10 to 90% |
| Temperature |
Operating: 32 to 104?F (0 to 40?C)
Storage: -4 to 176?F (-20 to 80?C) |
| Cooling |
Natural air, no fan required
|
Mechanical
| Cable Length |
70" (178 cm)
|
| Dimensions |
2.4 x 1.7 x 1.0" (6.0 x 4.4 x 2.6 cm)
|
| Weight |
0.22 lb (0.09 kg)
|
Packaging Info
| Package Weight |
0.26 lb
|
| Box Dimensions (LxWxH) |
4.5 x 3.3 x 2.2"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
