Ubiquiti Networks 32TB UNAS Pro 7-Bay NAS Enclosure Kit with Seagate IronWolf Drives (4 x 8TB)
Ubiquiti Networks 32TB UNAS Pro 7-Bay NAS Enclosure Kit with Seagate IronWolf Drives (4 x 8TB)

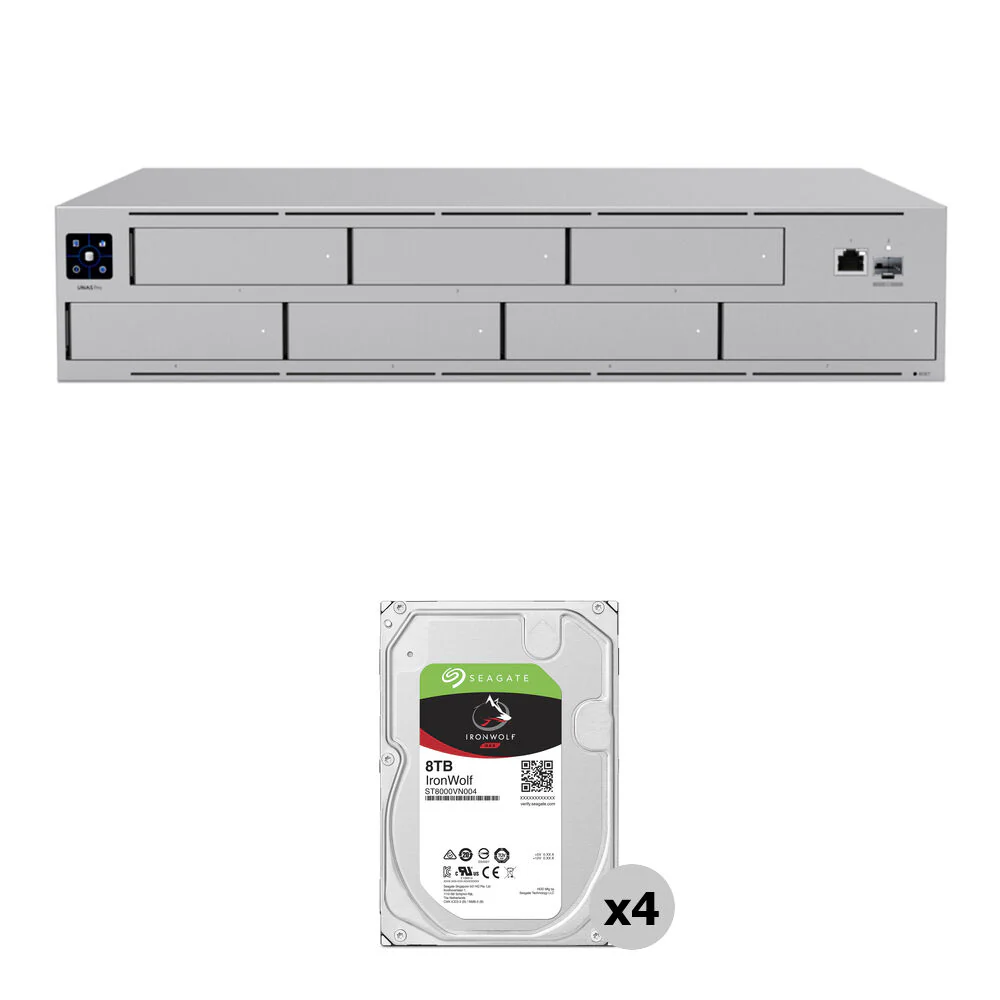

This Kit pairs the Ubiquiti Networks UNAS Pro 7-Bay NAS Enclosure with four 8TB Seagate IronWolf 7200 rpm SATA III 3.5" Internal NAS HDDs for a storage capacity of 32TB.
Designed for large-scale file storage and sharing, the UNAS Pro 7-Bay NAS Enclosure from Ubiquiti is equipped with seven SATA III drive bays that support both 3.5" HDDs, plus 2.5" SSDs and HDDs. Network connectivity is achieved using a 1GbE RJ45 port and a 10GbE SFP+ port, while wireless accessories may be paired using Bluetooth 4.1. Also featured is a 1.7 GHz ARM Cortex-A57 Quad-Core processor, 8GB of memory, a 1.3" touchscreen for management, data protection with RAID technology, a 2 RU form factor. This NAS is also UniFi power backup ready.

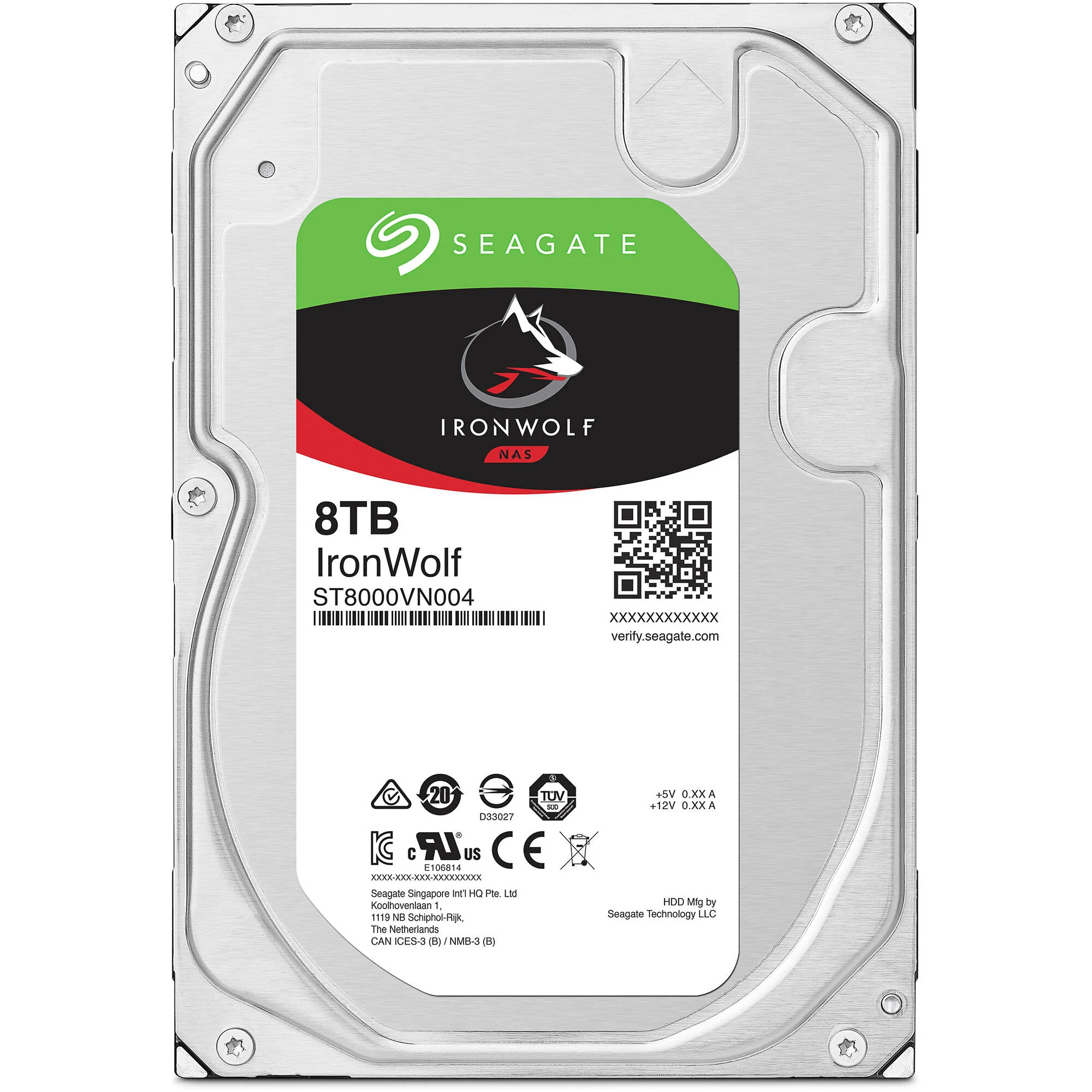

Designed for use in 1-8 bay NAS environments within home, SOHO, and SMB environments, the 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD from Seagate is built to withstand 24x7 operations, or 8760 hours per year. This 8TB drive has been equipped with a SATA III 6 Gb/s interface, a rotational speed of 7200 rpm, a 3.5" form factor, and a 256MB cache, providing users with an ample storage capacity and data transfer speeds of up to 210 MB/s. This IronWolf hard drive also has an MTBF rating of 1 million hours, 600,000 load/unload cycles, 1 in 1015 non-recoverable read errors per bits read, and a workload rate of up to 180TB per year.
Items Included
- Ubiquiti Networks UNAS Pro 7-Bay NAS Enclosure
- 2 x Rackmount Brackets
- 4 x Rackmount Clips
- 8 x M4 Screws
- 4 x 10#-32 Screws
- 28 x M3 Screws
- 7 x 6#-32 Screws
- Power Cord
- Limited 1-Year Manufacturer Warranty
- 4 x Seagate 8TB IronWolf 7200 rpm SATA III 3.5" Internal NAS HDD (OEM)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Ubiquiti Networks UNAS Pro 7-Bay NAS Enclosure
| RAID |
No
|
| Number of Bays |
7x 2.5"/3.5"
|
| Inputs/Outputs |
1x RJ45 Gigabit Ethernet
1x SFP+ 10GbE |
| CPU |
Quad-Core: Up to 1.7 GHz Cortex A57
|
| Memory |
8 GB
|
| RAID |
No
|
| Number of Bays |
7x 2.5"/3.5"
|
| Inputs/Outputs |
1x RJ45 Gigabit Ethernet
1x SFP+ 10GbE |
| Media Card Slots |
No
|
| PCI Expansion |
No
|
| Link Aggregation and Failover Support |
No
|
| iSCSI Support |
No
|
| Installed Operating System |
No
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Encryption |
No
|
| Security Features |
No
|
| VPN Connections |
No
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
160 W
|
| PSU |
1 x 200 W
|
| Operating Conditions |
23 to 104?F / -5 to 40?C at 5 to 95% Humidity
|
| Certifications |
CE, FCC, IC
|
| Cooling |
No
|
| Material of Construction |
Steel
|
| Dimensions |
17.4 x 12.8 x 3.4" / 442 x 325 x 87 mm
|
| Weight |
20.3 lb / 9.2 kg
|
| Package Weight |
23.64 lb
|
| Box Dimensions (LxWxH) |
22.8 x 18.2 x 7.3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
