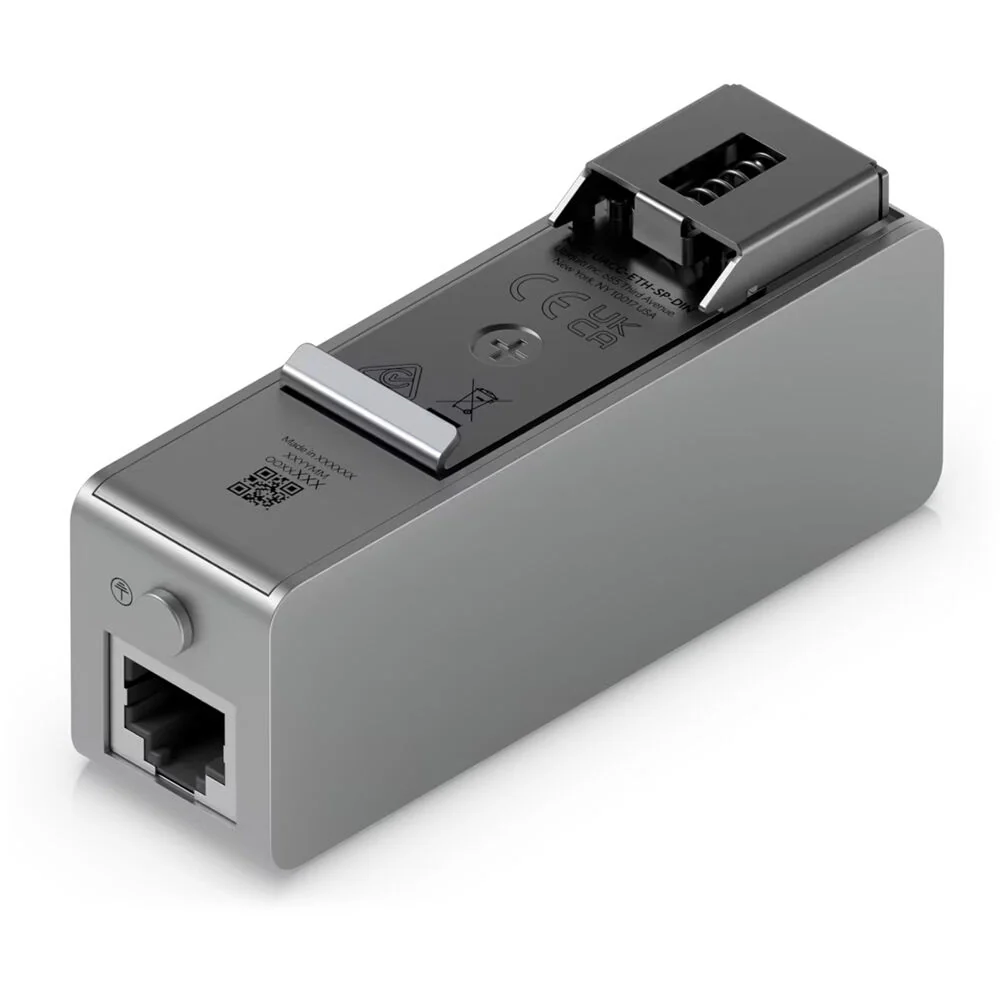

Ubiquiti Networks 1-Port Ethernet Surge Protector
Ubiquiti Networks UACC-ETH-SP-DIN Overview
Add protection for your power-over-Ethernet device with this 1-Port Ethernet Surge Protector from Ubiquiti. Supporting a 10 Gb/s data throughput and 60W PoE++ with its dual bi-directional RJ45 ports, this single device surge protector is designed with a 20kA surge discharge. This surge protector may be mounted onto a wall or DIN rail.
Items Included
- Ubiquiti Networks 1-Port Ethernet Surge Protector
- Wall Mount Kit
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Ubiquiti Networks UACC-ETH-SP-DIN Specs
| Network Interface |
2 x RJ45 10 GbE PoE++ (60 W, 802.3bt Type 3)
|
| Protection |
DC Spark-Over Voltage: 90 V at 100 V/s
Max. Impulse Spark-Over Voltage Protection: 600 V at 1 kV/?s Discharge Current: 20 kA Insulation: 1 G ohm at 50 V (Max. Resistance) Max. Capacitance: 1.0 pF at 1 MHz |
| Mounting |
1x Wall; DIN Rail
|
| Color |
Silver
|
| Material of Construction |
Steel, Polycarbonate
|
| Operating Conditions |
-40 to 176?F / -40 to 80?C at 10 to 90% Humidity
|
| Dimensions |
3.5 x 1.5 x 1" / 89 x 37.4 x 25.5 mm
|
| Weight |
2.6 oz / 74 g
|
| Package Weight |
0.315 lb
|
| Box Dimensions (LxWxH) |
3.75 x 1.8 x 1.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
